Front Floor Console Compartment Bezel Replacement

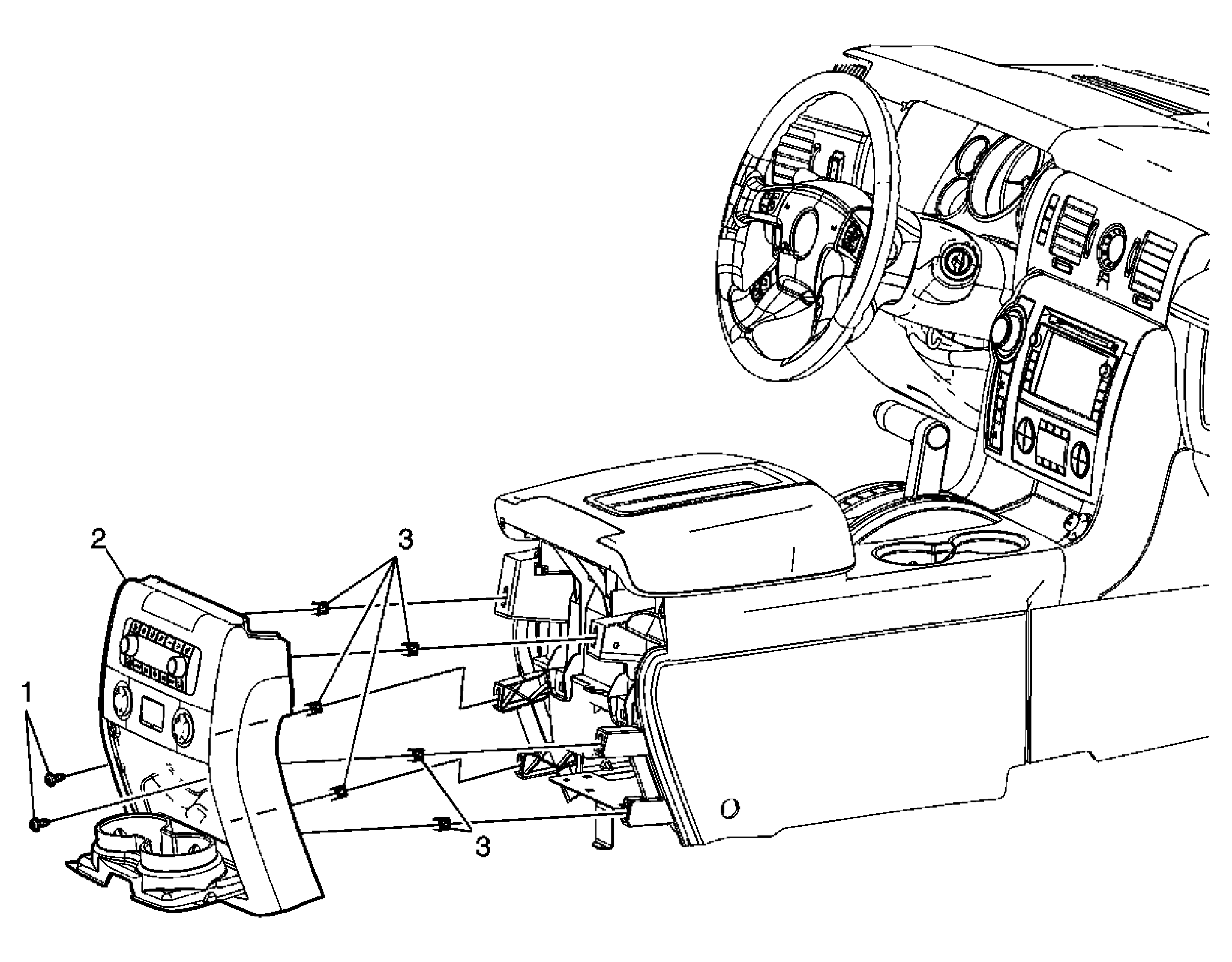

Fig 1: Front Floor Console Compartment Bezel
GM1912810Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Floor Console Compartment Bezel Screw (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2.5 N.m (22 lb in)
2 Front Floor Console Compartment Bezel Assembly

Procedure

  1. Grasp the compartment bezel and pull straight back disengaging the retainers from the console assembly.
  2. Disconnect the electrical connections.
  3. When replacing the compartment bezel, transfer all necessary components.
3 Retainer Clip (Qty: 6)
