Radio Rear Side Door Speaker Replacement

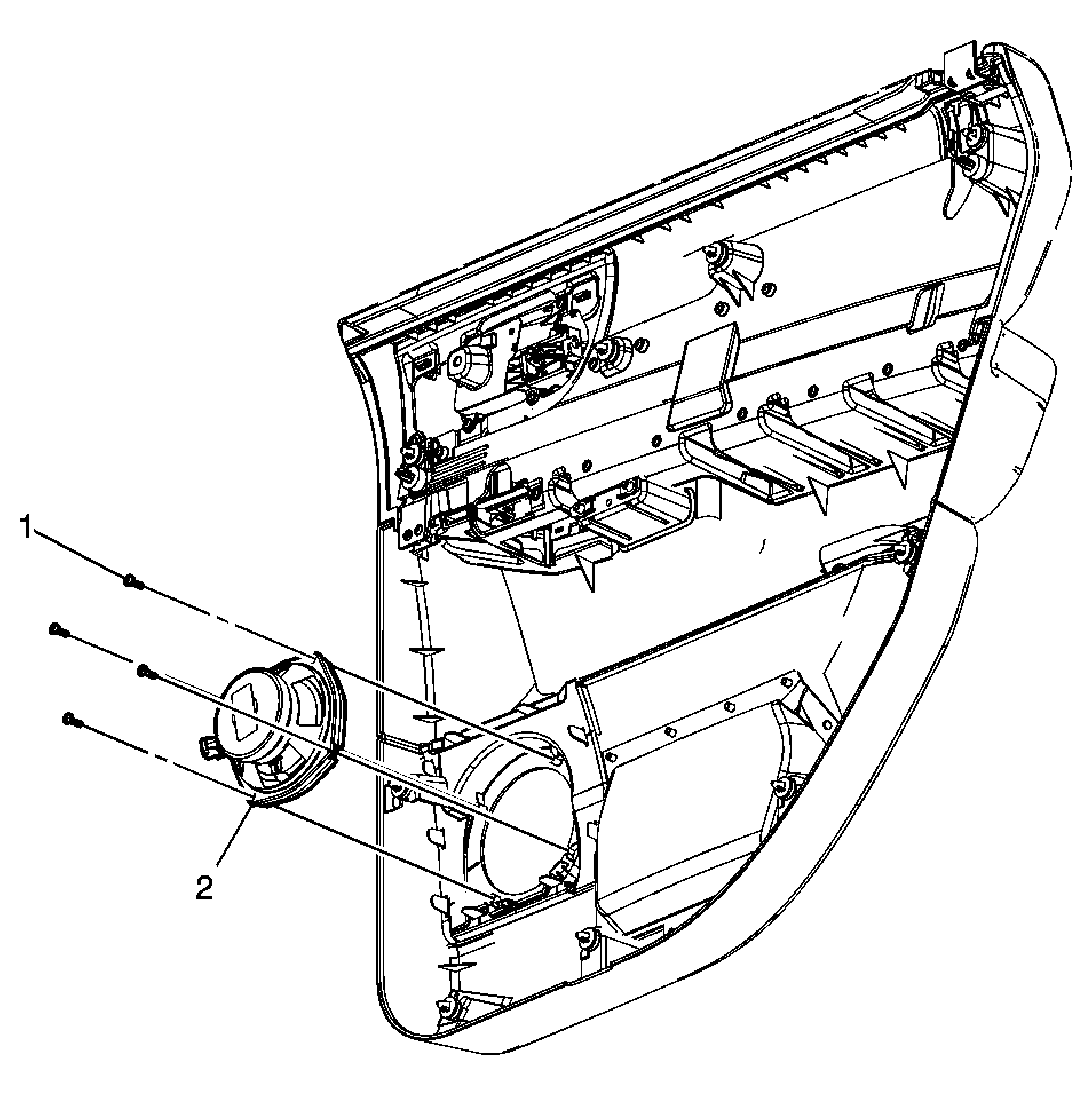

Fig 1: Radio Rear Side Door Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the rear door inner trim panel. Refer to Rear Side Door Trim Panel Replacement .
1	Rear Side Door Speaker Screw (Qty: 4) NOTE: Refer to Fastener Notice . Tighten:  2.5 N.m (22 lb in)
2	Rear Side Door Speaker Procedure:  Disconnect the electrical connector.
