Radio Front Speaker Replacement

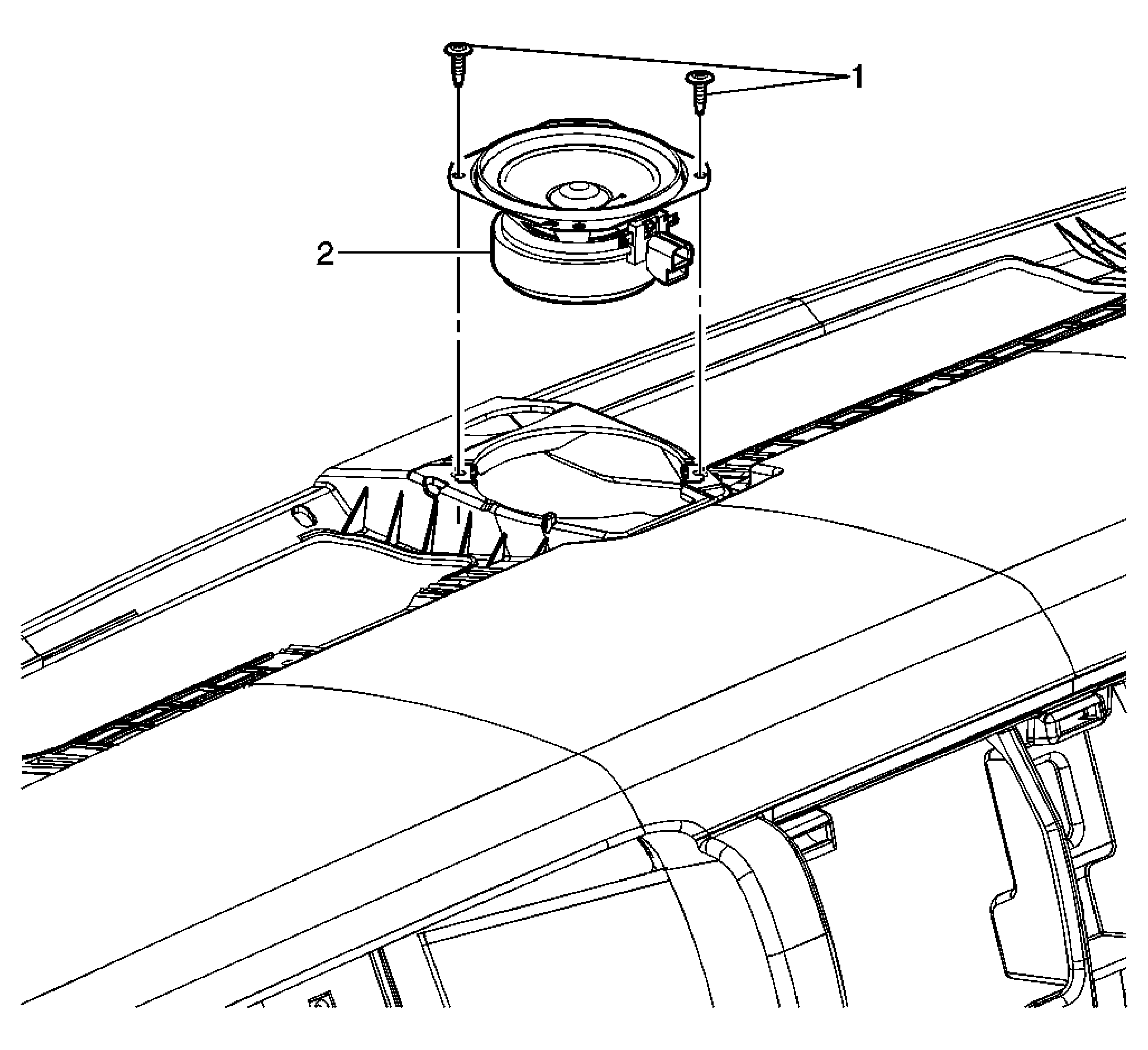

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel (I/P) upper trim. Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
1	Speaker Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Speaker
