Global Positioning System (GPS) Antenna Replacement

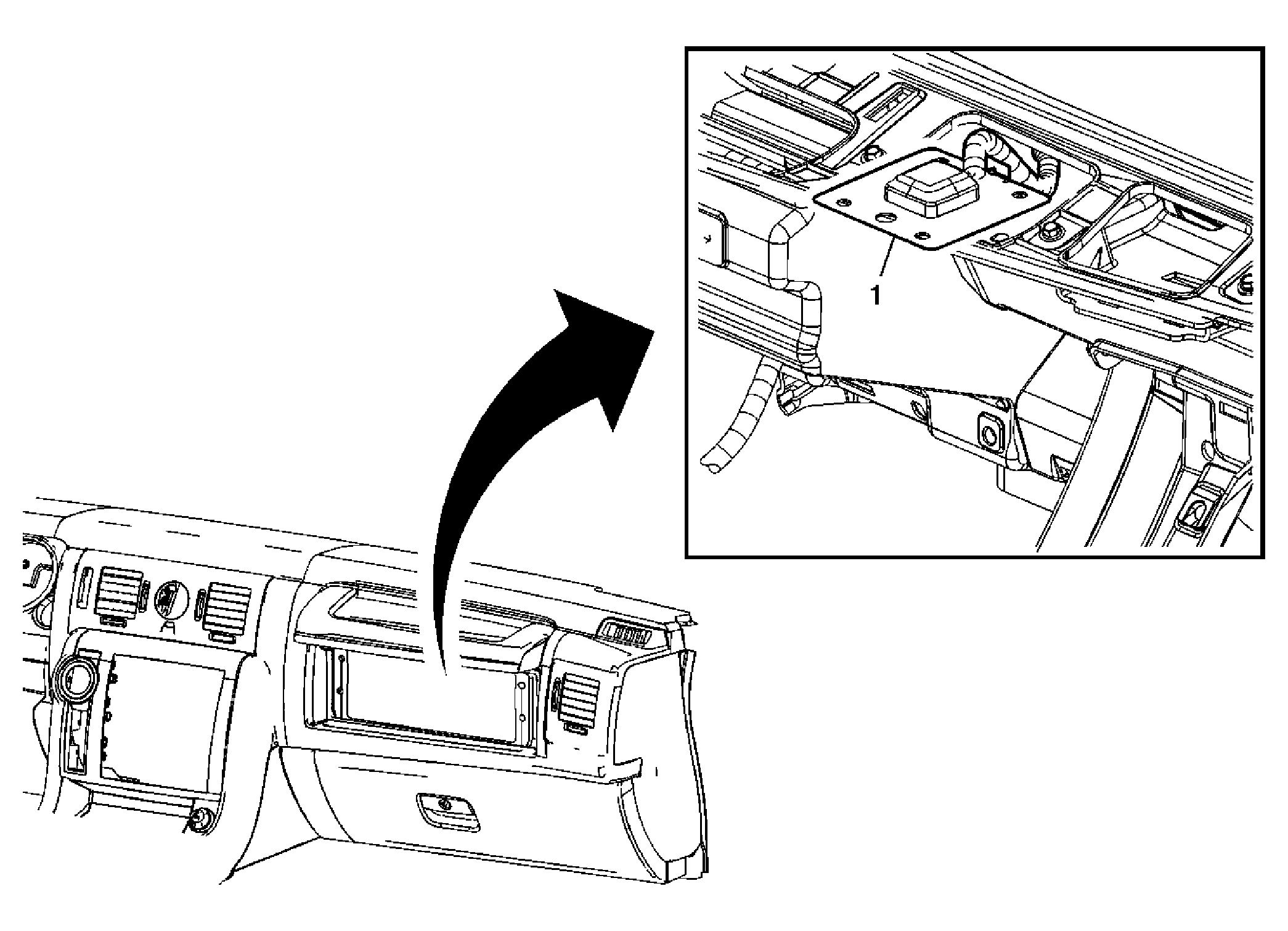

Fig 1: Global Positioning System (GPS) Antenna

GM1957672

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the radio. Refer to Radio Replacement .
Remove the passenger air bag. Refer to Inflatable Restraint Instrument Panel Module Replacement .

1

Navigation Antenna

Procedure

Observe the routing of the global positioning system (GPS) antenna cable to ensure the GPS antenna cable is routed properly during installation.
Reprogram the GPS module, if necessary. Refer to Control Module References .
