Digital Radio Receiver Replacement

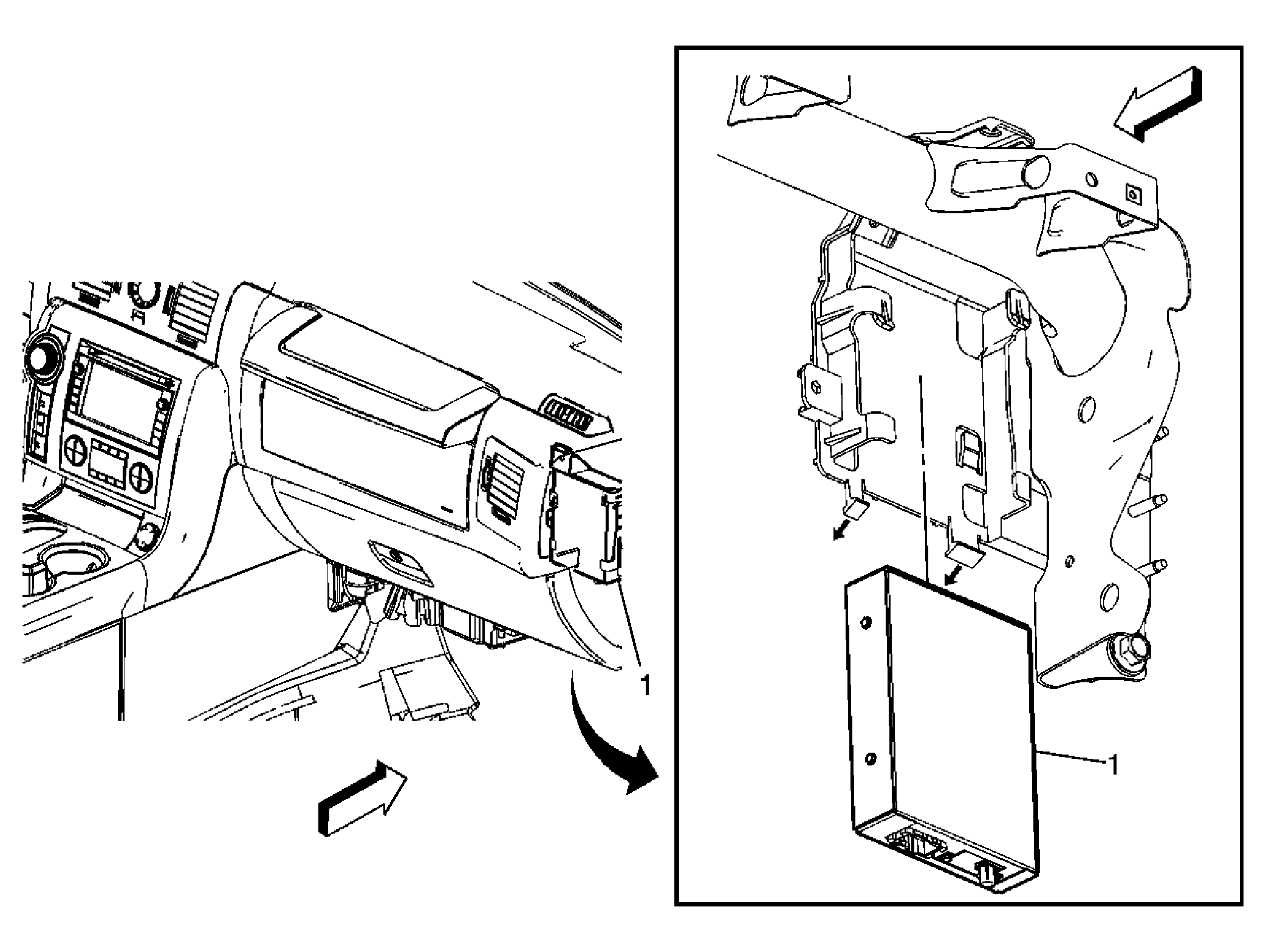

Fig 1: Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement .
1	Digital Radio Receiver Assembly Procedure Disconnect the electrical connectors. Push in on the 2 tabs and pull down to remove the receiver. Perform the Digital Radio Receiver Setup. Refer to Digital Radio Receiver Setup .

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel insulator panel. Refer to Instrument Panel Insulator Panel Replacement .

Digital Radio Receiver Assembly

Procedure

Disconnect the electrical connectors.
Push in on the 2 tabs and pull down to remove the receiver.
Perform the Digital Radio Receiver Setup. Refer to Digital Radio Receiver Setup .
