Audio/Video Disc Player Adapter Replacement

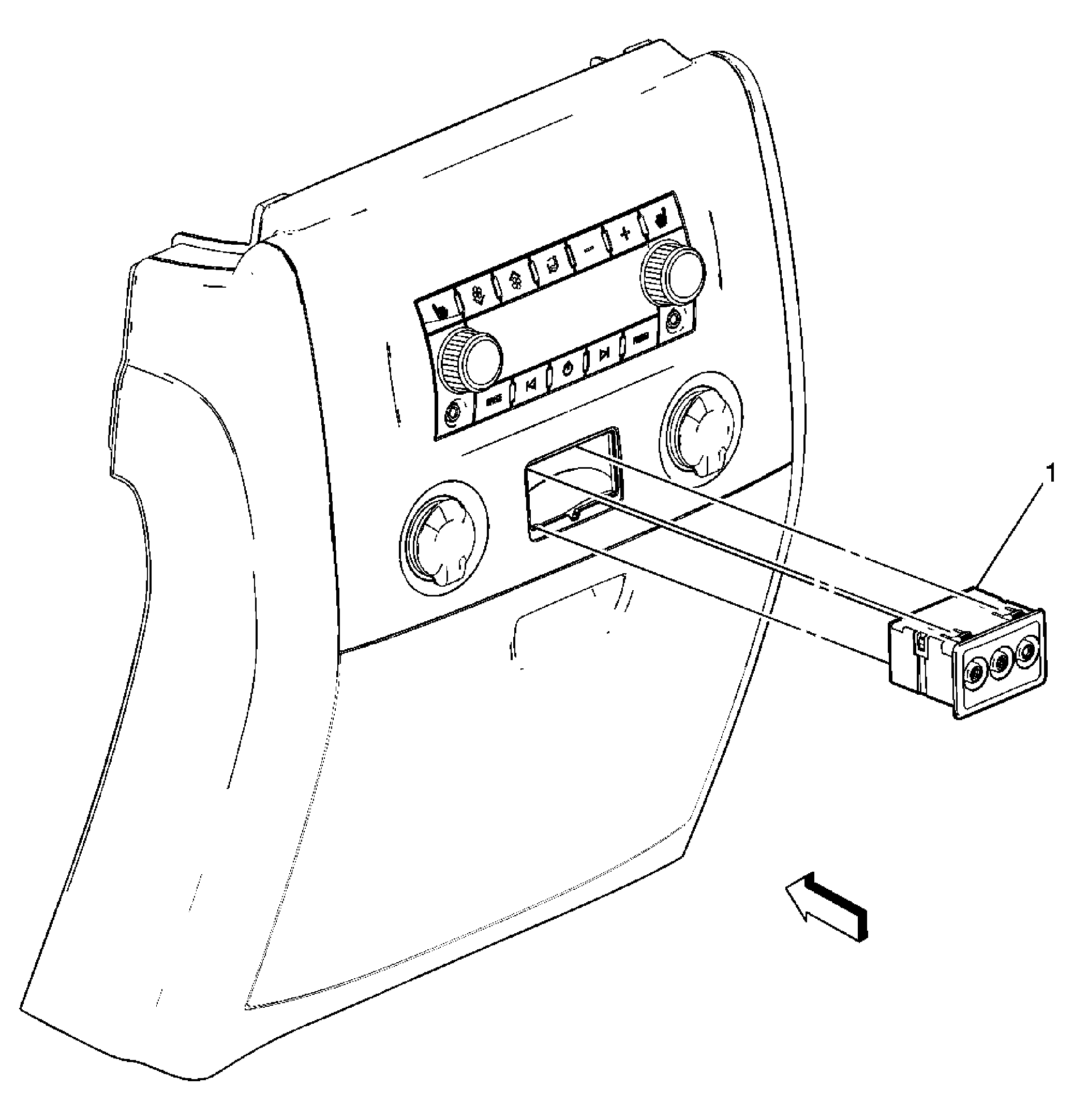

Fig 1: Audio/Video Disc Player Adapter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement .
1	Audio/Video Disc Player Adapter Assembly Procedure:  Depress the four tabs and remove from the end panel.
