Rear Side Door Trim Panel Replacement

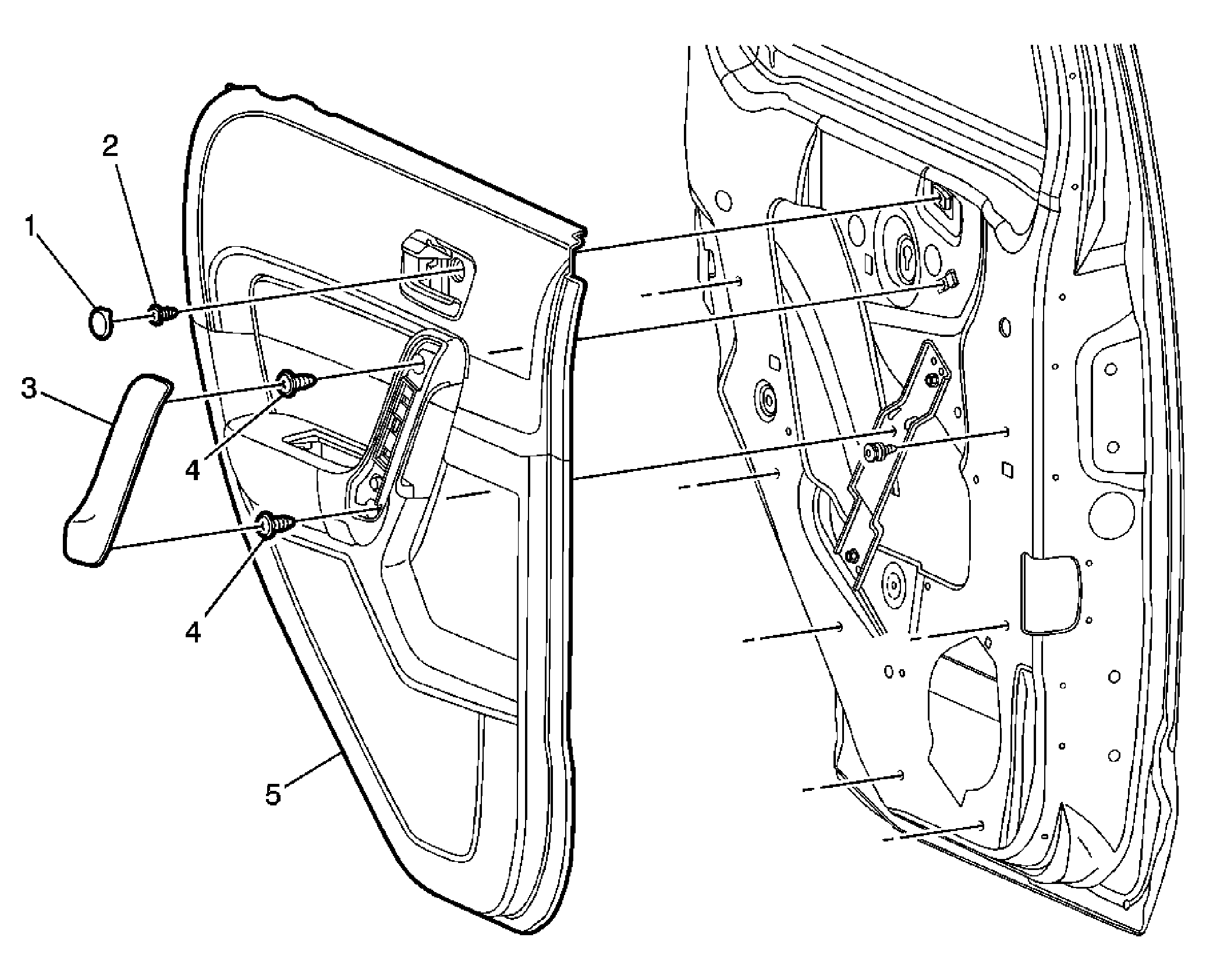

Fig 1: Trim Panel Replacement - Side Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove inside handle bezel. Refer to Door Inside Handle Bezel Replacement . Remove the door window switches. Refer to Rear Side Door Window Switch Replacement .
1	Cover, Trim Bolt Accessory Hole
2	Screw, Door Trim Panel Tighten: 2 N.m (18 lb in)
3	Bolt, Door Trim Panel (Qty: 2) Tighten: 9 N.m (80 lb in)
4	Panel Assembly, Side Door Trim Tip: Release the inside door handle cables. Refer to Front Side Door Inside Handle Replacement .
5	Retainer, Side Door Trim Panel (Qty: 7)
