Front Side Door Water Deflector Replacement

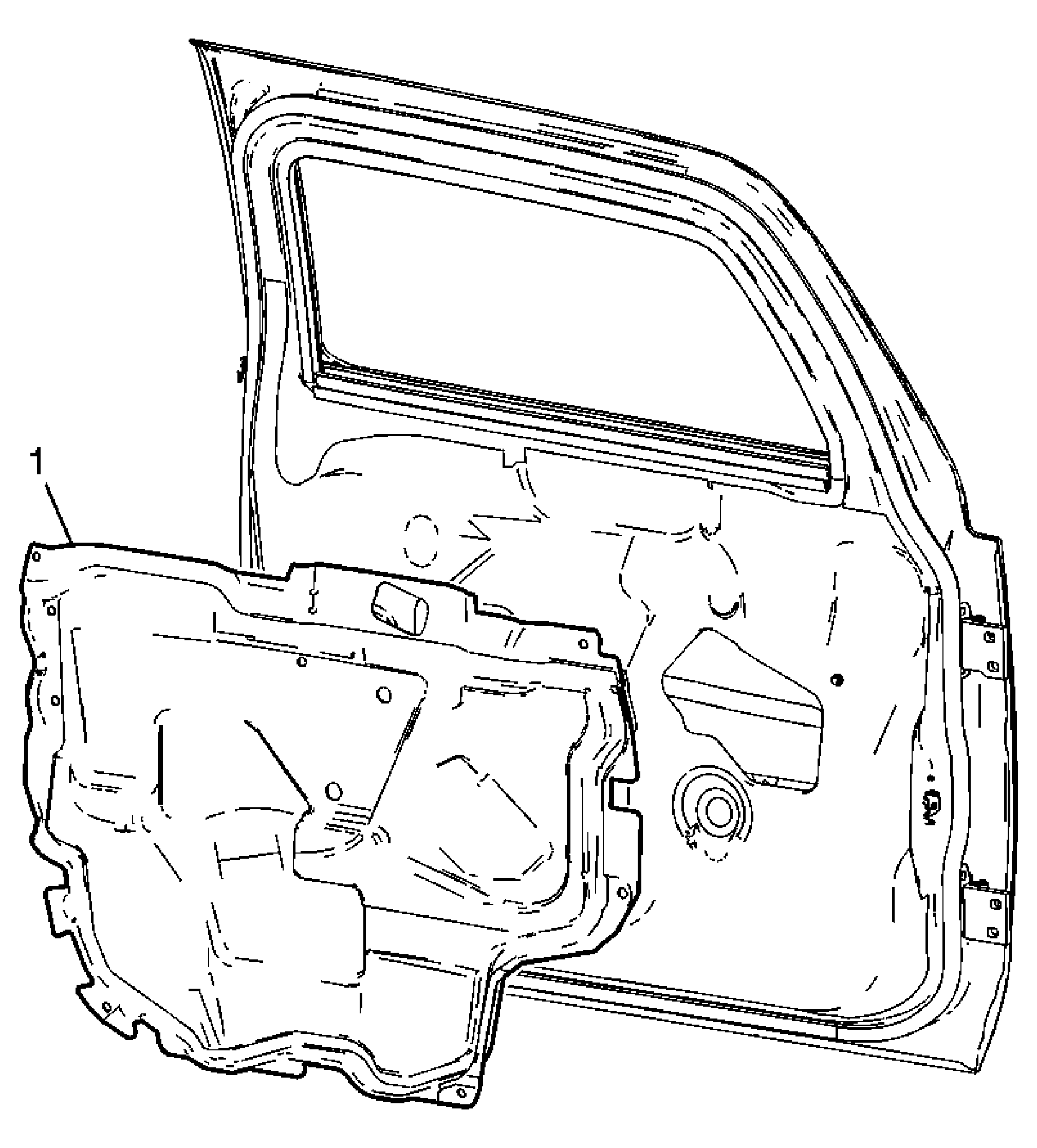

Fig 1: Water Deflector Replacement - Front Door
GM1554932Courtesy of GENERAL MOTORS CORP.
Front Side Door Water Deflector Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
Preliminary Procedure:
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
1 Deflector Assembly, Front Side Door Water
Tip:  Carefully pull the water deflector away from the door while feeding any wiring or connectors through the water deflector.
