Rear Door Lock Replacement

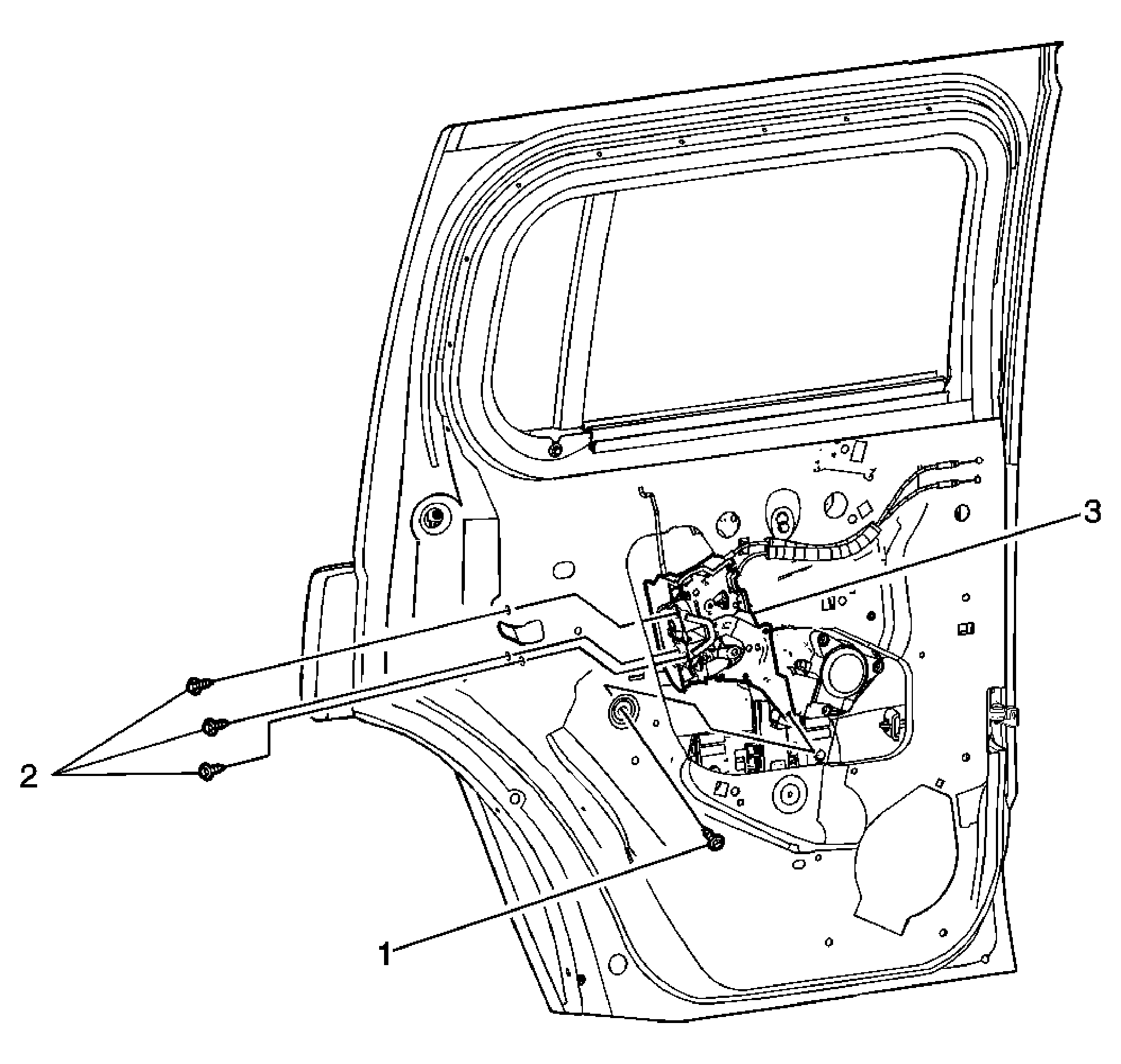

Fig 1: Lock Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the water deflector. Refer to Rear Side Door Water Deflector Replacement .
1	Bolt, Rear Side Door Lock Tighten: 7 N.m (62 lb in)
2	Bolt, Rear Side Door Lock (Qty: 3) Tighten: 7 N.m (62 lb in)
3	Lock, Rear Side Door Tip: Disconnect the electrical connector. Disconnect the handle rod to remove the lock from the door.
