Pedals Area
For Replacement of components listed below, see Repair Procedure

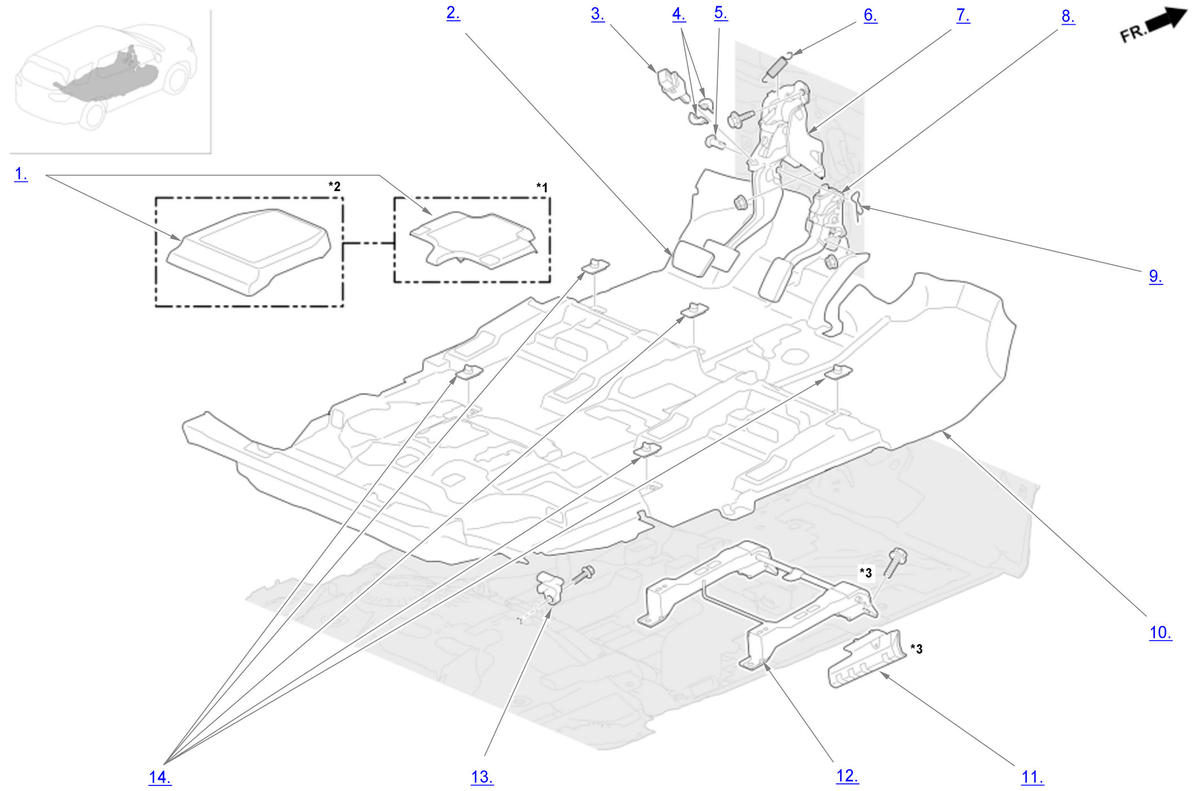

Exploded View Of Pedals Area (Items 1 thru 14)
| *1: With Second Row Center Seat *2: Without Second Row Center Seat *3: Part(s) are shown for one side only as the procedure is the same for both sides. |
Pedals Area
| Component Name | Callout |
|---|---|
| Center Rear Step Garnish | 1 |
| Brake Pedal Cover | 2 |
| Brake Pedal Position Switch | 3 |
| Attaching Piece | 4 |
| Clevis Pin | 5 |
| Return Spring | 6 |
| Brake Pedal | 7 |
| Accelerator Pedal Module | 8 |
| Lock Pin | 9 |
| Carpet | 10 |
| Front Seat Riser Garnish | 11 |
| Front Seat Riser | 12 |
| Rear Safing Sensor | 13 |
| Floor Mat Holder | 14 |
