Paddle Shifter Test: Test

How to use this manual .

WARNING:

• SRS components are located in this area. Before doing repairs or service:
  • Review the SRS component locations .
  • Review the precautions and procedures .

1. Paddle Shifter - Test

   Preconditions

   • Driver's Airbag Removed
   • Paddle Shifter Connector Disconnected

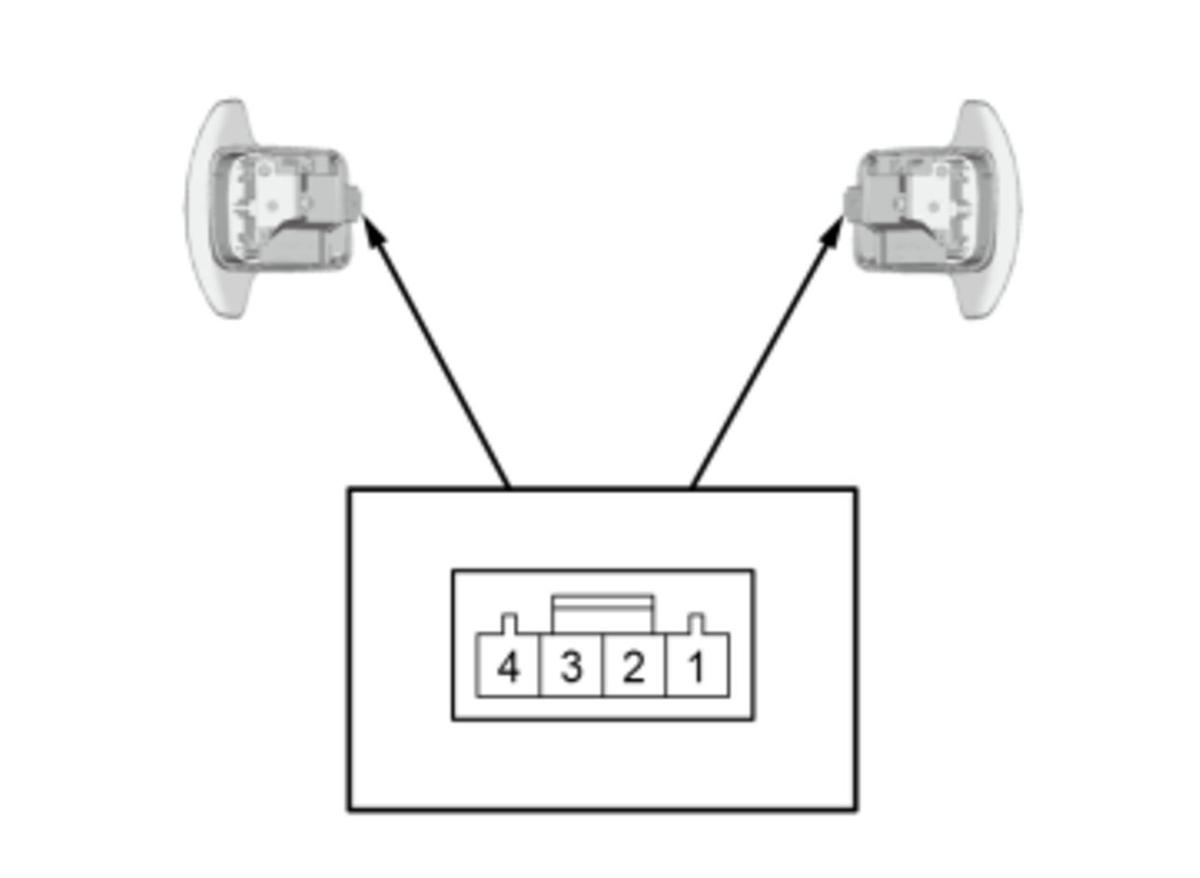

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

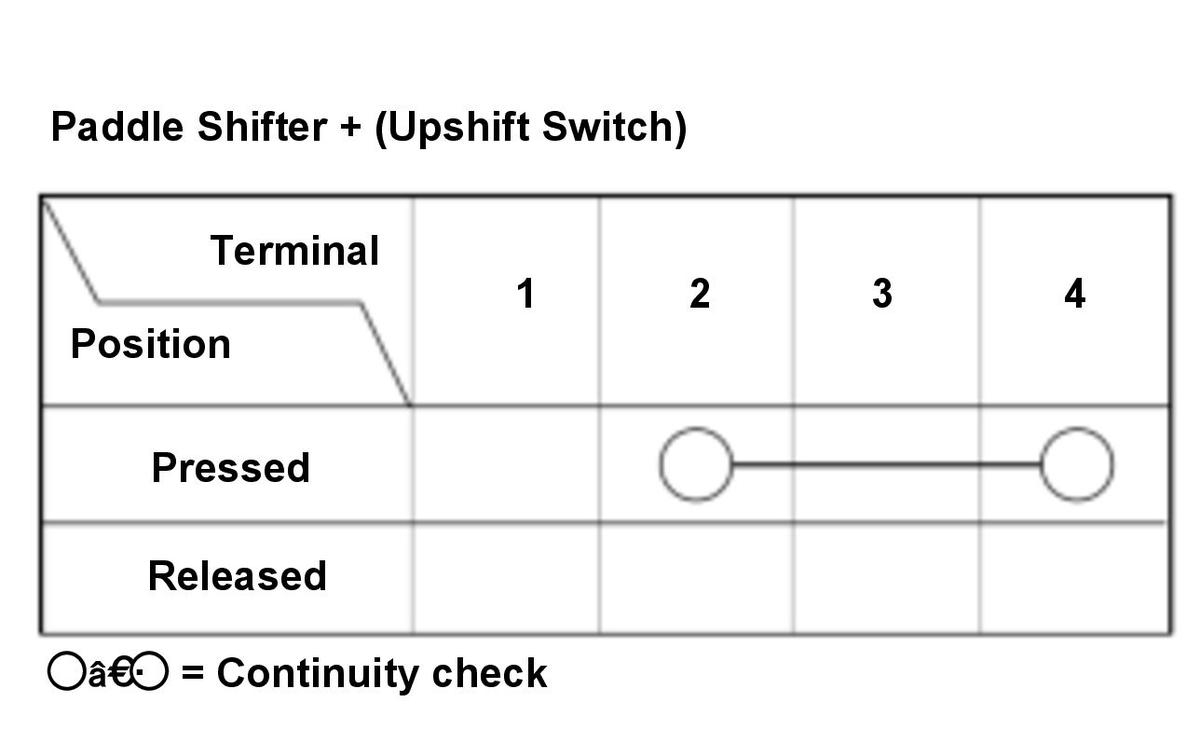

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

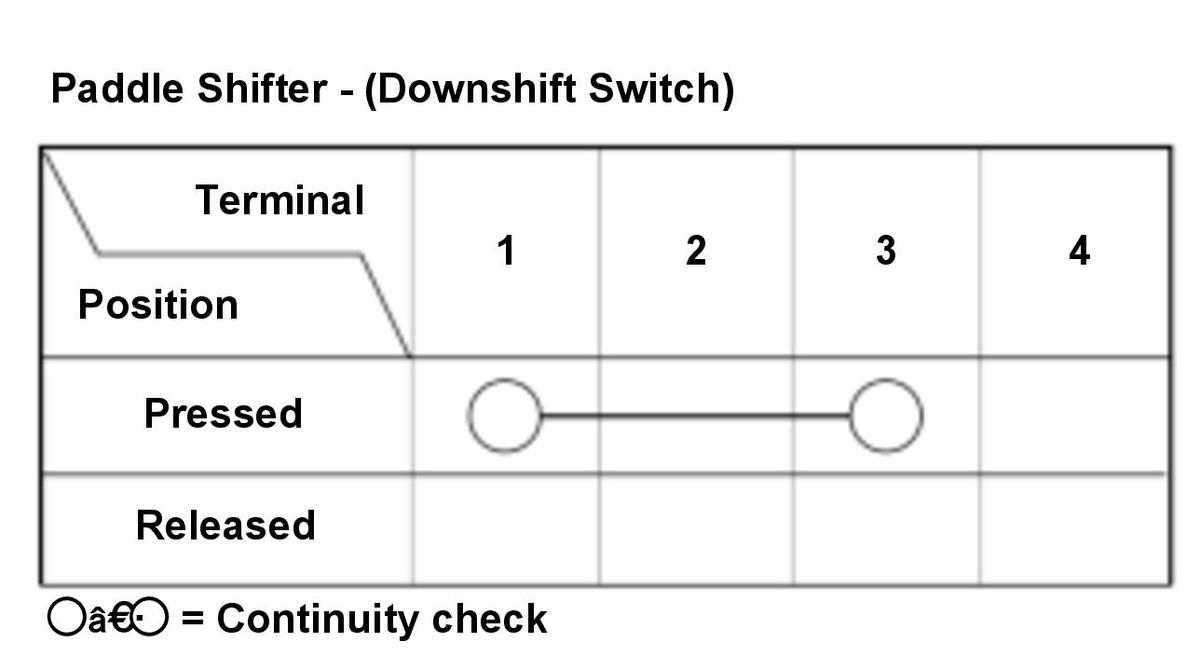

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the paddle shifter according to the table. (Figure 1, 2, and 3)

   Result

   • If the result is not as specified, replace the paddle shifter .
