Brake Fluid Level Switch Test: Test

How to use this manual .

NOTICE:

If both the ABS/VSA indicator and the brake system indicator (red) come on at the same time, check the VSA system first.

1. Brake Fluid Level Switch - Test

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

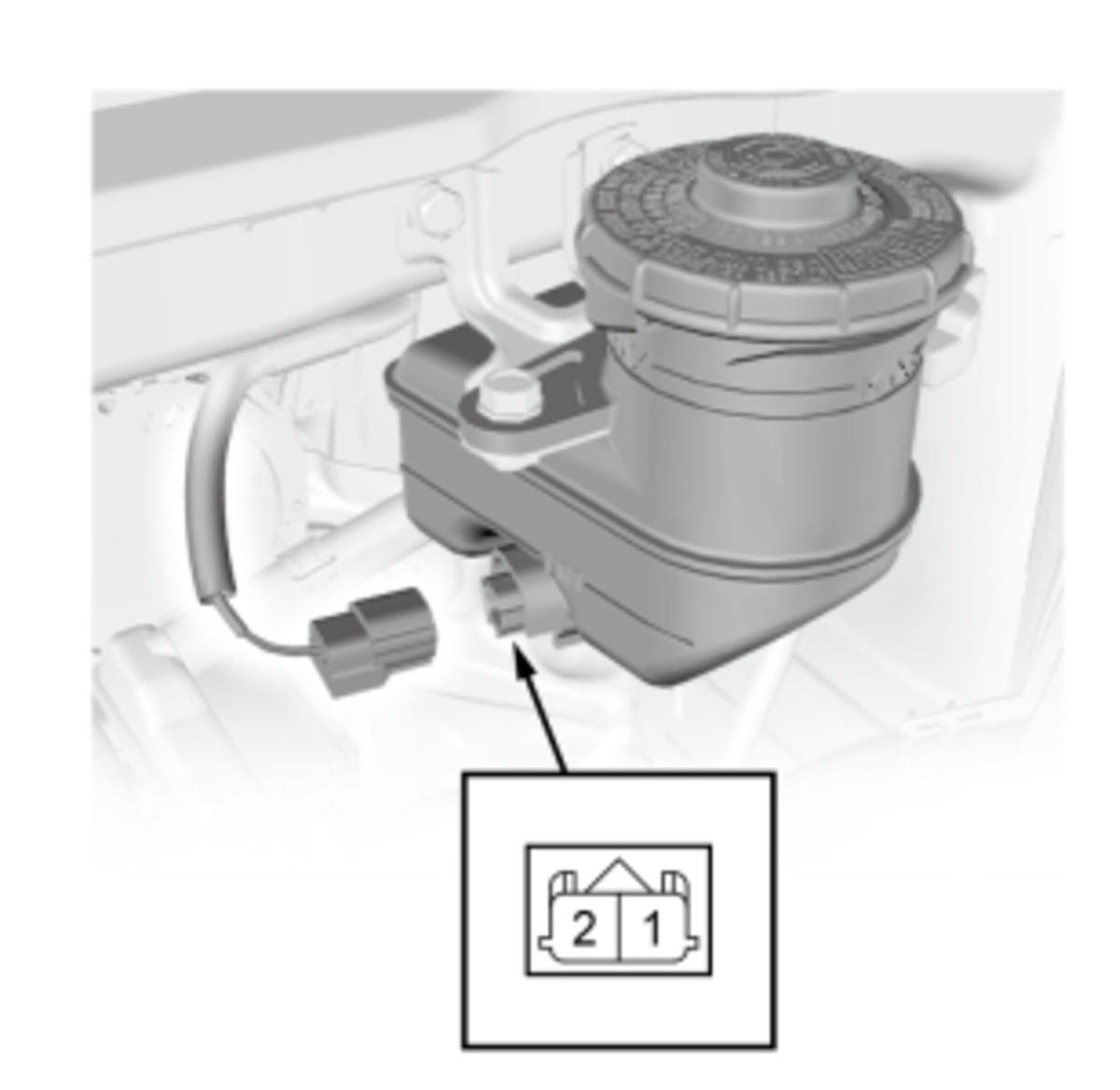

   • Check for continuity between brake fluid level switch connector terminals No. 1 and No. 2 with the float in the down position and in the up position.

   Specifications

   Condition		Specification
   Brake Fluid MIN	Float Down	Continuity
   Brake Fluid MAX	Float Up	No Continuity

   Result

   • If it is abnormal, replace the reservoir . If the brake fluid level switch is OK, but the brake system indicator (red) does not function, do the gauge control module self-diagnostic function .
