DTC : P0589-15 (2016 2017 2018)

DTC P0589-15  : Main Switch Signal Circuit Open

NOTE:  Before you troubleshoot, review the general troubleshooting information - Go to: How to Troubleshoot the Adaptive Cruise Control (ACC) (2016 2017 2018) .

1. Problem verification

   - 1. Turn the vehicle to the ON mode.

   - 2. Clear the DTC with the HDS.

   Clear DTCs

   - 3. Turn the vehicle to the OFF (LOCK) mode.

   - 4. Turn the vehicle to the ON mode, then wait for at least 5 seconds.

   - 5. Check for DTCs with the HDS.

   Is DTC P0589-15 indicated?

   YES

   The failure is duplicated. Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Go to intermittent failures troubleshooting - Refer to: How to Troubleshoot the Adaptive Cruise Control (ACC) (2016 2017 2018) . If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the Freeze data/on-board snapshot.

2. Open wire check (CRUISE SW line) 1

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   ACC combination switch 12P connector

   - 3. Turn the vehicle to the ON mode.

   - 4. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected

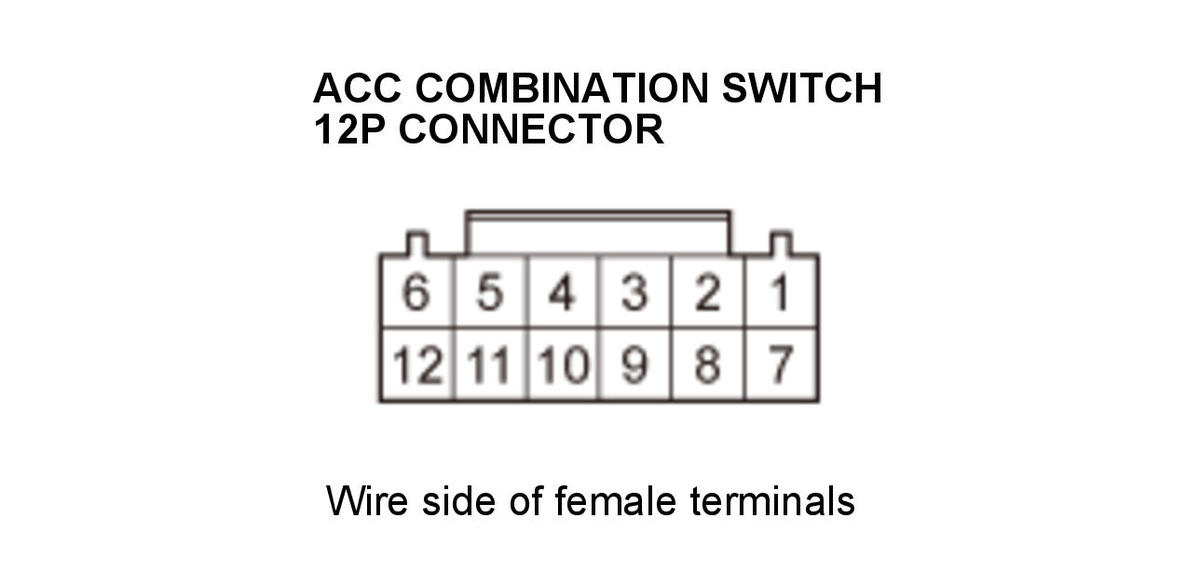

   Test point 1	ACC combination switch 12P connector No. 2
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   The CRUISE SW wire is not open. Go to step 3.

   NO

   Go to step 7.

3. ACC combination switch internal circuit check

   - 1. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected

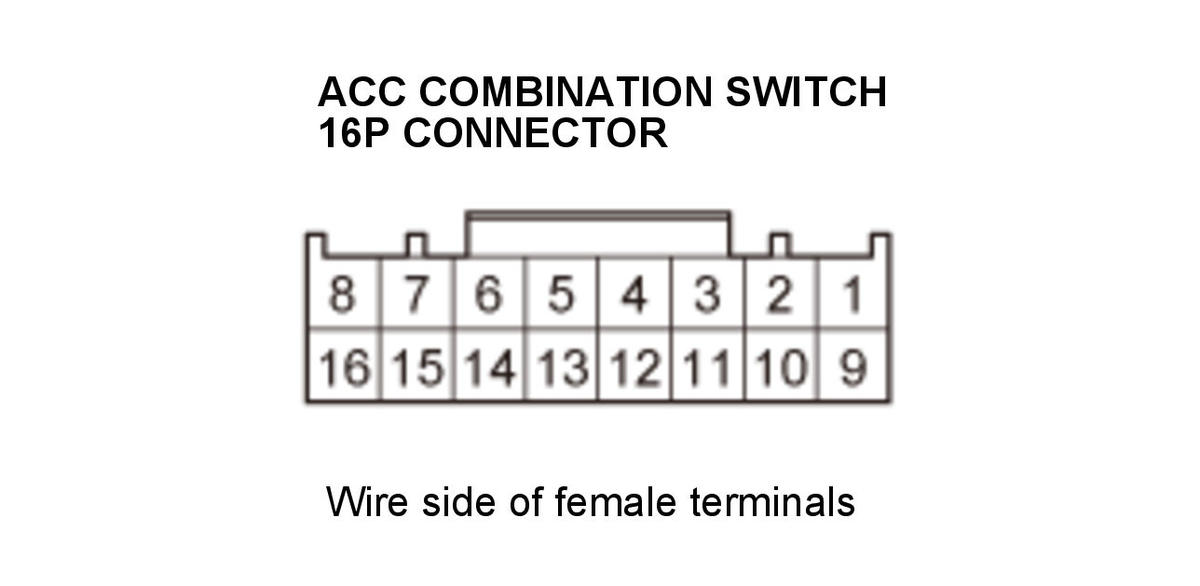

   Test point 1	ACC combination switch 12P connector No. 2
   Test point 2	ACC combination switch 12P connector No. 5

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the ACC Combination Switch (2016 2017 20018) .

   NO

   Go to step 4.

4. Open wire check (DISTANCE SW GND line) 1

   - 1. Check for continuity between test points 1 and 2 without disconnect the cable reel connector C (20P).

   Test condition	Vehicle OFF (LOCK) mode
   	ACC combination switch 12P connector: disconnected

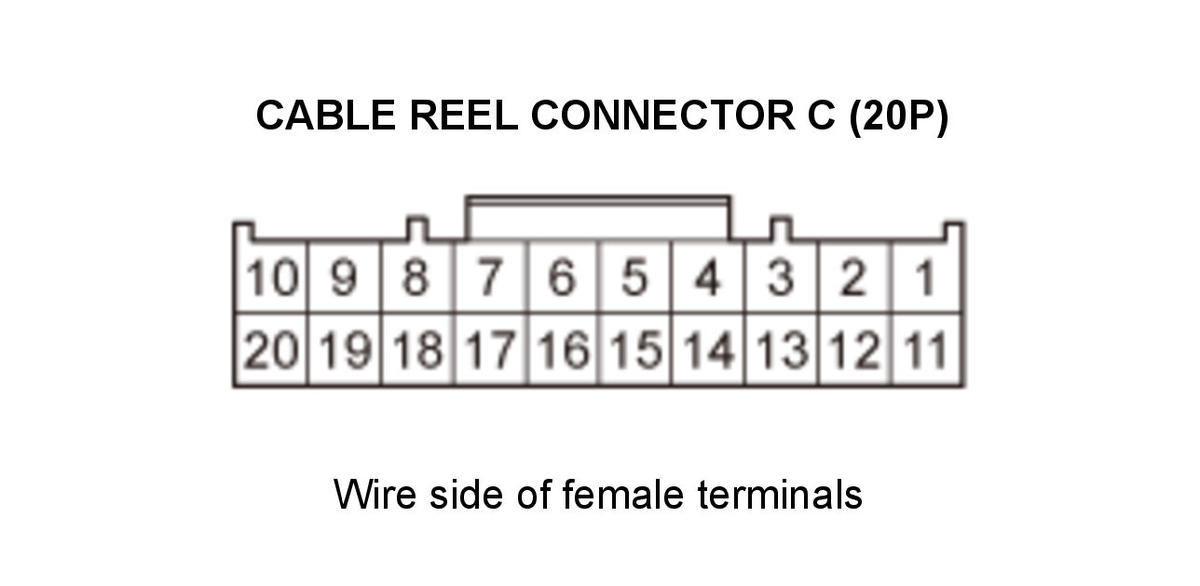

   Test point 1	Cable reel connector C (20P) No. 16
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair an open in the wire between the ACC combination switch and the cable reel.

   NO

   Go to step 5.

5. Open wire check (DISTANCE SW GND line) 2

   - 1. Check for continuity between test points 1 and 2 without disconnect the cable reel connector A (20P).

   Test condition	Vehicle OFF (LOCK) mode
   	ACC combination switch 12P connector: disconnected

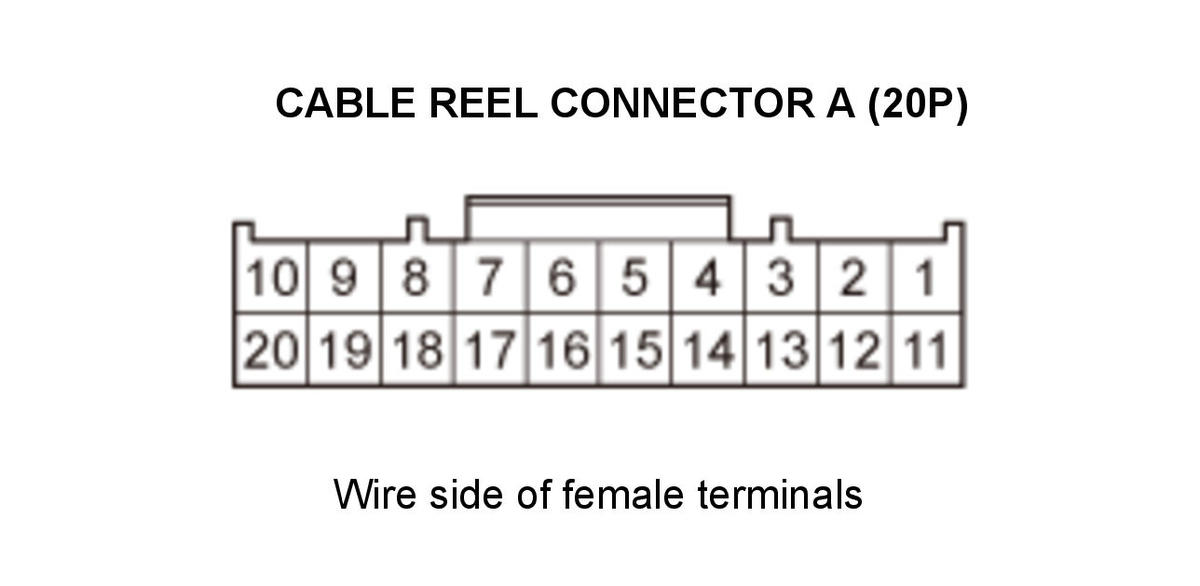

   Test point 1	Cable reel connector A (20P) No. 4
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the Cable Reel .

   NO

   Go to step 6.

6. Open wire check (CRUISE SW GND line) 4

   - 1. Disconnect the following connector.

   Cable reel connector A (20P)

   Gauge control module 32P connector

   - 2. Check for continuity between test points 1 and 2 without disconnect the gauge control module connector A (32P).

   Test condition	Vehicle OFF (LOCK) mode
   	Cable reel connector A (20P) : disconnected
   	Gauge control module 32P connector: disconnected
   	ACC combination switch 12P connector: disconnected
   Test point 1	Gauge control module 32P connector No. 20 - Refer to: Gauge Control Module Connector for Inputs and Outputs (2016 2017 2018)
   Test point 2	Cable reel connector A (20P) No. 4

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The DISTANCE SW GND wire is not open. Replace the Gauge Control Module .

   NO

   Repair an open in the wire between the gauge control module and the cable reel.

7. Open wire check (CRUISE SW line) 2

   - 1. Measure the voltage between test points 1 and 2 without disconnect the cable reel connector C (20P).

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected
   Test point 1	Cable reel connector C (20P) No. 15
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Repair an open in the wire between the ACC combination switch and the cable reel.

   NO

   Go to step 8.

8. Open wire check (CRUISE SW line) 3

   - 1. Measure the voltage between test points 1 and 2 without disconnect the cable reel connector A (20P).

   Test condition	Vehicle ON mode
   	ACC combination switch 12P connector: disconnected

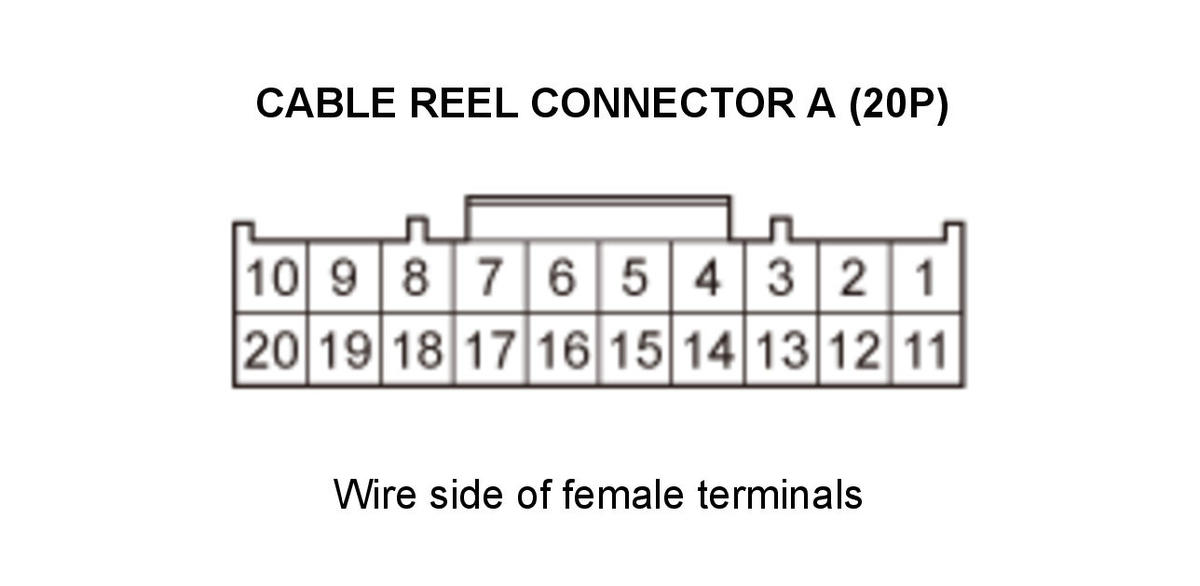

   Test point 1	Cable reel connector A (20P) No. 3
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5 V?

   YES

   Replace the Cable Reel .

   NO

   Go to step 9.

9. Open wire check (CRUISE SW line) 4

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   Cable reel connector A (20P)

   Gauge control module 32P connector

   - 3. Measure the voltage between test points 1 and 2 without disconnect the gauge control module connector A (32P).

   Test condition	Vehicle OFF (LOCK) mode
   	Cable reel connector A (20P) : disconnected
   	Gauge control module 32P connector: disconnected
   	ACC combination switch 12P connector: disconnected
   Test point 1	Gauge control module 32P connector No. 30 - Refer to: Gauge Control Module Connector for Inputs and Outputs (2016 2017 2018)
   Test point 2	Cable reel connector A (20P) No. 3

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The CRUISE SW wire is not open. Replace the Gauge Control Module .

   NO

   Repair an open in the wire between the gauge control module and the cable reel.
