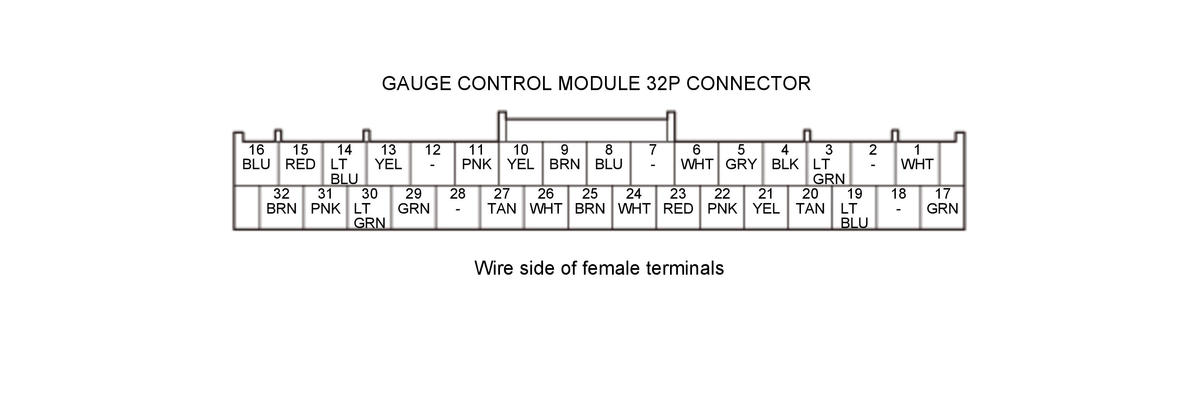

Gauge Control Module (2016 2017 2018)
| Terminal number |
Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACKUP | Power source for gauge control module | About battery voltage at all times |
| 2 | Not used | - - - | - - - |
| 3 | DISTANCE SW | Detects DISTANCE SW signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on distance switch) |
| 4 | GND | Ground for gauge control module | Less than 0.2 V at all times |
| 5 | WASHER LVL SNSR | Detects WASHER LVL SNSR signal | With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V |
| 6 | CMBS SW | Detects CMBS SW signal | With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V |
| 7 | Not used | - - - | - - - |
| 8 | ECON SW | Detects ECON SW signal | With vehicle in ON mode and ECON switch OFF: about battery voltage With vehicle in ON mode and ECON switch ON: less than 0.2 V |
| 9 | VSA OFF SW | Detects VSA OFF SW signal | With vehicle in ON mode and VSA OFF switch OFF: about battery voltage With vehicle in ON mode and VSA OFF switch ON: less than 0.2 V |
| 10 | PARKING SW | Detects PARKING SW signal | With vehicle in ON mode and parking brake switch OFF: about battery voltage With vehicle in ON mode and parking brake switch ON: less than 0.2 V |
| 11 | BRAKE FLUID LVL | Detects BRAKE FLUID LVL signal | With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V |
| 12 | Not used | - - - | - - - |
| 13 | Not used | Detects I/S SW signal | With vehicle in ON mode and idle stop OFF switch OFF: about battery voltage With vehicle in ON mode and idle stop OFF switch ON: less than 0.2 V |
| 14 | TERRAIN SW | Detects TERRAIN SW signal | With vehicle in ON mode and intelligent traction management switch OFF: about battery voltage With vehicle in ON mode and intelligent traction management switch ON: less than 0.2 V |
| 15 | ILLUMI-(LED) | Outputs ILLUMI-(LED) signal | - - - |
| 16 | ILLUMI-(BULB) | Outputs ILLUMI-(BULB) signal | - - - |
| 17*1 | IG1 METER(DC/DC) | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 17*2 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 18 | Not used | - - - | - - - |
| 19 | INFO SW | Detects INFO SW signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on select/reset/information switch) |
| 20 | DISTANCE SW GND | Ground for distance switch, cruise control combination switch, select/reset/information switch | Less than 0.2 V at all times |
| 21 | FUEL+ | Detects FUEL+ signal | - - - |
| 22 | FUEL- | Ground for fuel gauge sending unit | - - - |
| 23 | LIN(METER) | Communication line | - - - |
| 24* 3 | F-CAN_H | Communication line | - - - |
| 24* 4 | F-CAN A_H | Communication line | - - - |
| 25* 3 | F-CAN_L | Communication line | - - - |
| 25* 4 | F-CAN A_L | Communication line | - - - |
| 26 | B-CAN_H | Communication line | - - - |
| 27 | B-CAN_L | Communication line | - - - |
| 28 | Not used | - - - | - - - |
| 29 | ILL VOL+ | Detects ILL VOL+ signal | With vehicle in ON mode and illumination control switch (+) OFF: about battery voltage With vehicle in ON mode and illumination control switch (+) ON: less than 0.2 V |
| 30 | CRUISE SW | Detects CRUISE SW signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on cruise control combination switch) |
| 31 | ILL VOL- | Detects ILL VOL- signal | With vehicle in ON mode and illumination control switch (-) OFF: about battery voltage With vehicle in ON mode and illumination control switch (-) ON: less than 0.2 V |
| 32 | PGND | Ground for gauge control module | Less than 0.2 V at all times |
*1: With auto idle stop system
*2: Without auto idle stop system
*3: 6-speed A/T
*4: 9-speed A/T
