INTERMEDIATE SHAFT (9-Speed A/T): Installation

Intermediate Shaft - Install

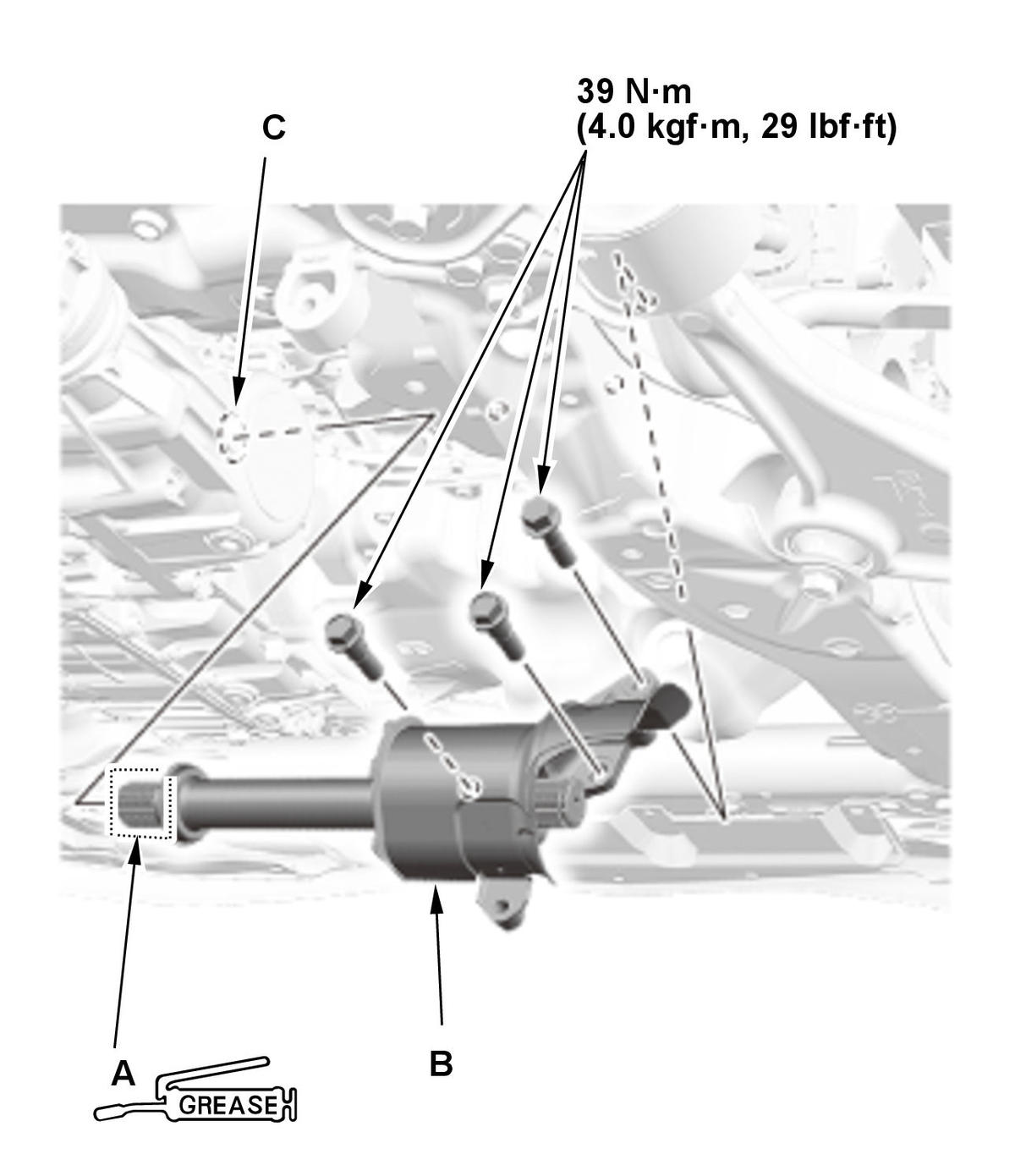

Fig 1: Intermediate Shaft With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent.

NOTE: Do not wash the rubber parts with solvent.

2. Dry the areas where the intermediate shaft contacts the differential thoroughly with compressed air.

3. Apply Honda SPLINE WR GREASE (P/N 04360-5P8-305) to the intermediate shaft (A) as shown.

4. Install the intermediate shaft and heat shield assembly (B).

NOTE: Insert the intermediate shaft carefully to prevent damaging the oil seal (C).

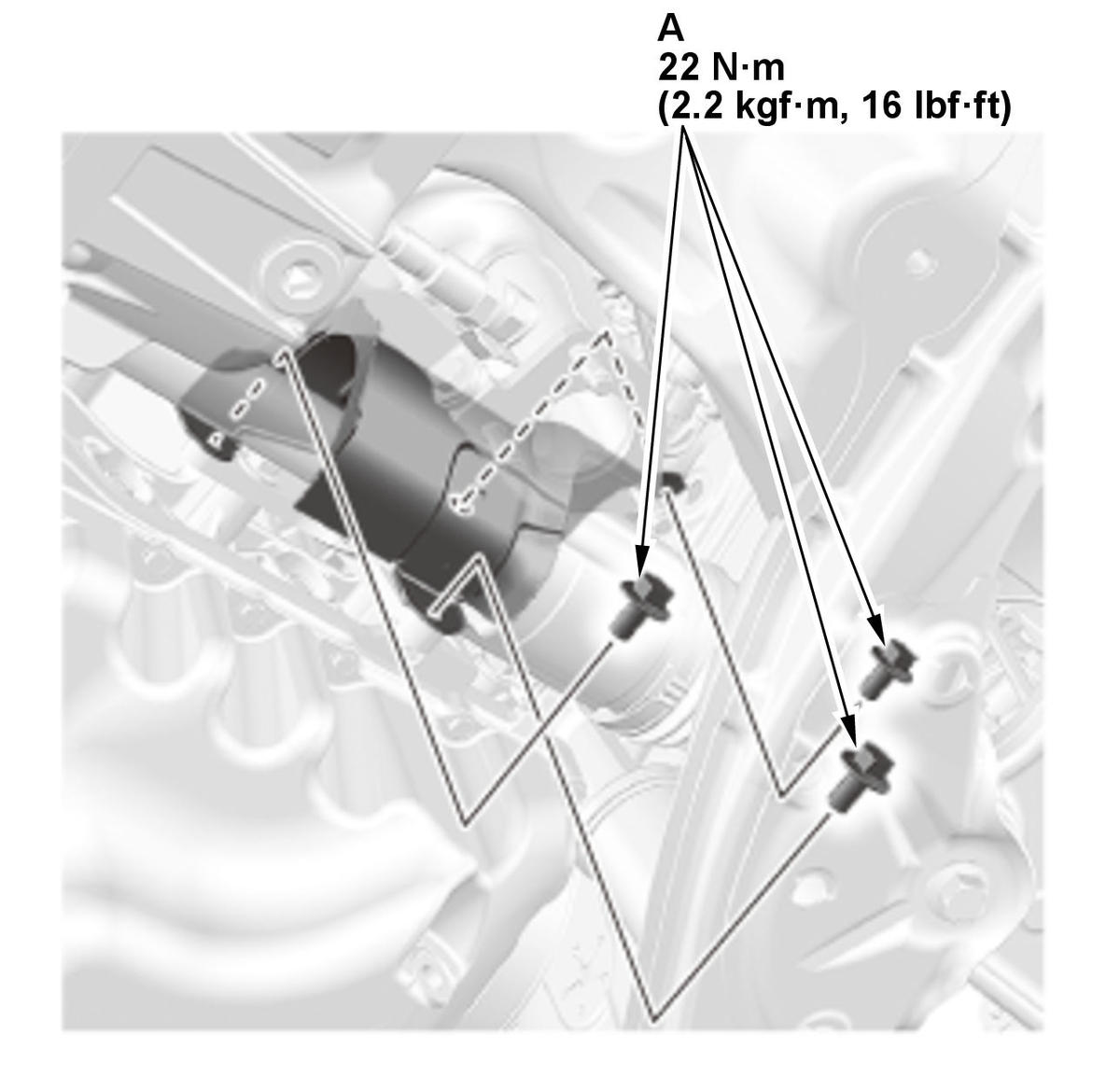

Fig 2: Heat Shield Bolts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

5. Install the heat shield bolts (A).

6. Install the under-floor TWC - Refer to:
Under-Floor TWC Removal and Installation or
Warm Up TWC Removal and Installation

7. Install the stiffener plate Subframe Removal

Right Driveshaft - Install
Intermediate Shaft - After Install Check

1. Turn the wheel by hand, and make sure there is no interference between the driveshaft and surrounding parts.
Transmission Fluid - Refill - Go to: ATF Replacement (9-Speed A/T),
Wheel Alignment - Check
Test Drive - Check
