Removal and Installation: SUBFRAME: Removal

Front Subframe

1. Front Subframe - Remove

   NOTE:  After removing the subframe mounting bolts, front stiffener mounting bolts, rear stiffener mounting bolts, stiffener plate mounting bolts, and the rear engine mount base bracket mounting bolts, be sure to replace them with new ones.

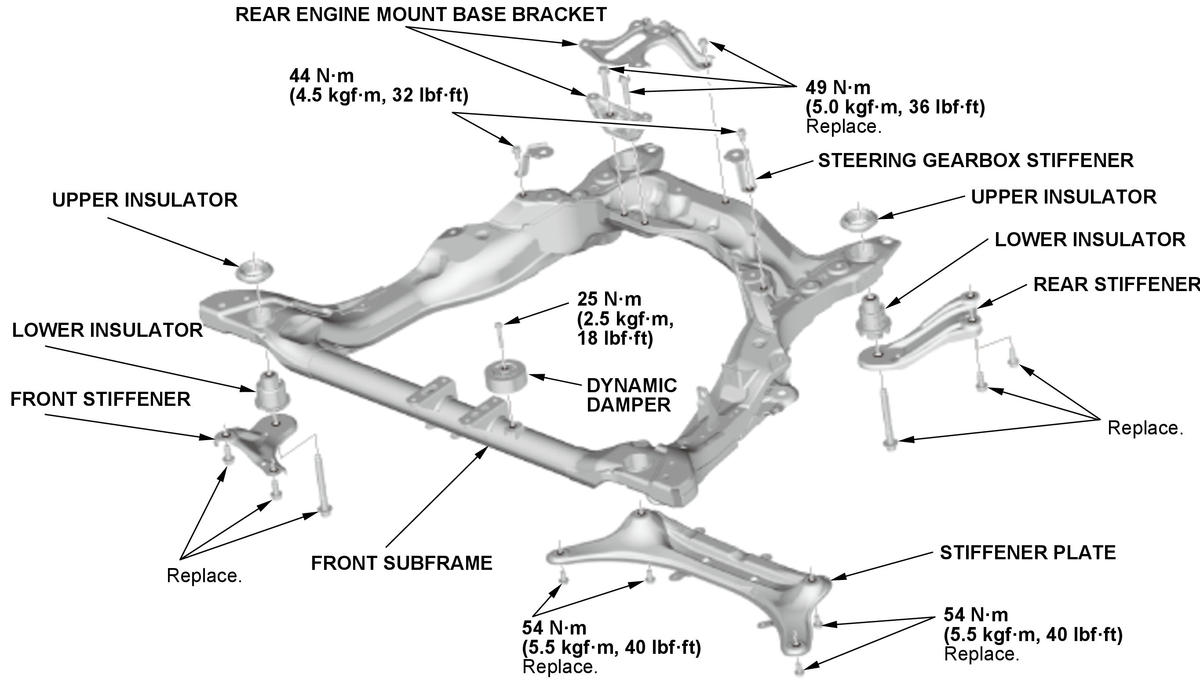

   Fig 1: Front Subframe With Torque Specifications

   Courtesy of HONDA, U.S.A., INC.

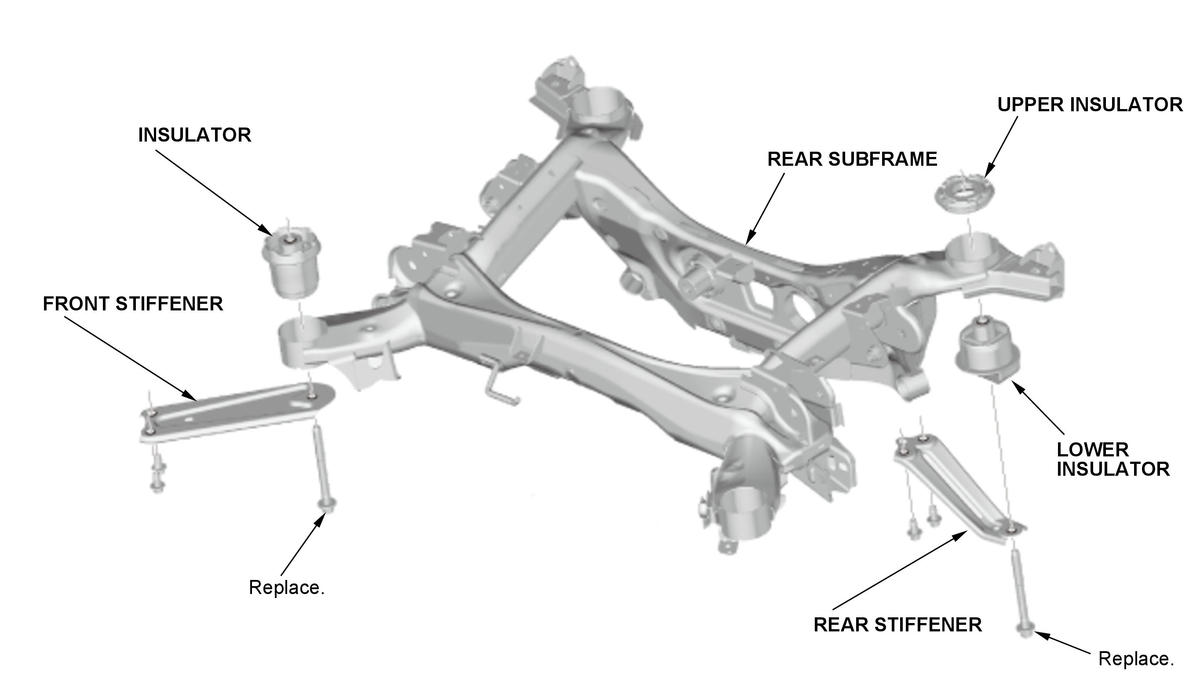

Rear Subframe

1. Rear Subframe - Remove

   NOTE:  After removing the subframe mounting bolts be sure to replace them with new ones.

   Courtesy of HONDA, U.S.A., INC.
