Front Passenger's Seat (Without Ventilated Seat)

Front Passenger's Seat Heater - Test

'16-18 Seat Cushion Heater

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

'19-21 Seat Cushion Heater

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

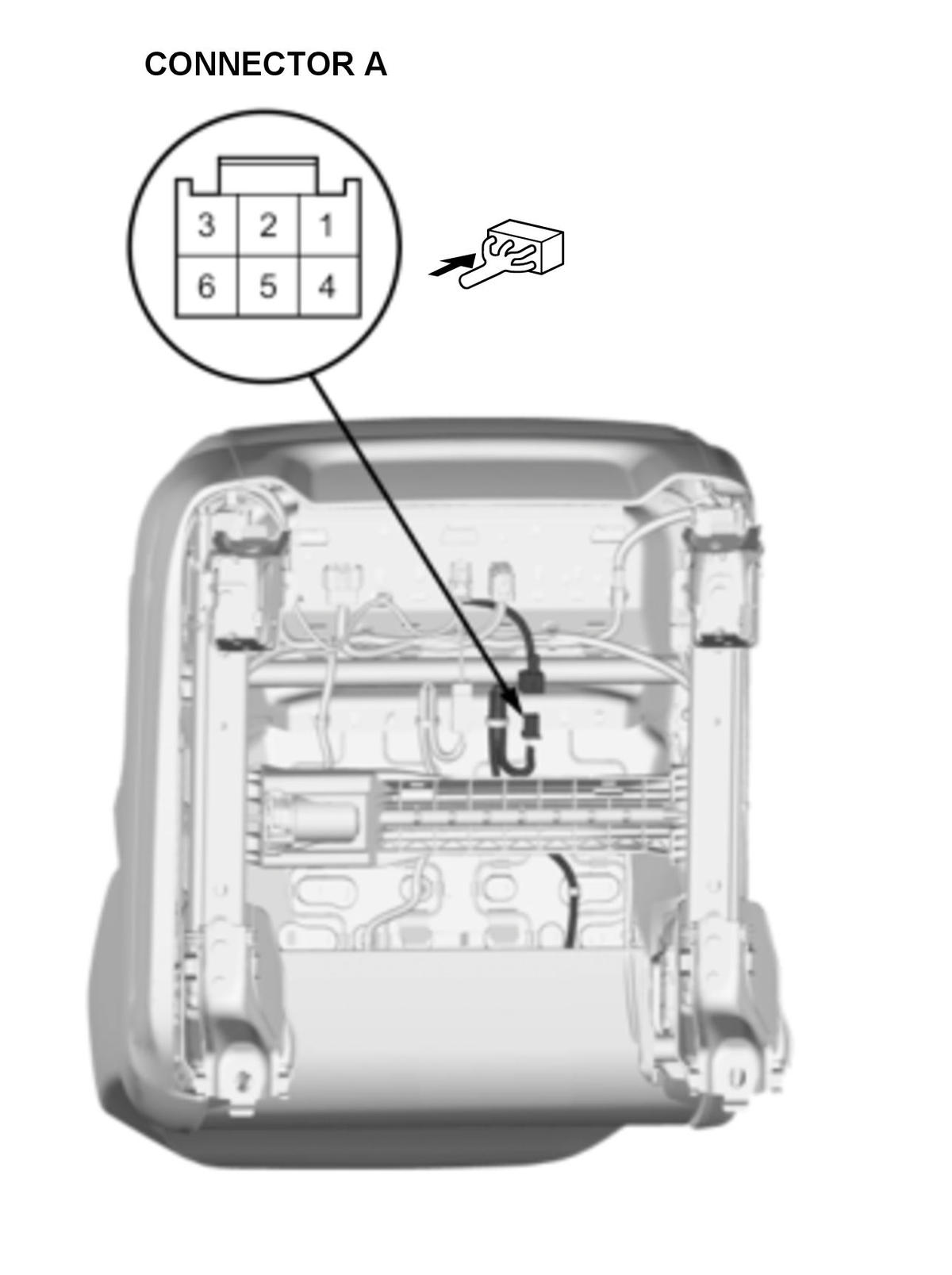

1. Disconnect the front passenger's seat cushion heater connector A.

2. Check for continuity between the terminals according to the table.

3. If the continuity is not as specified, replace the Front Seat Cushion Heater .

'16-18 → Front Passenger's Seat Cushion Heater Connector A
A1	A3
A4	A3

'19-21 → Driver's Seat Cushion Heater Connector A
A2	A3
A4	A1
A6	A1

Seat-Back Heater

Courtesy of HONDA, U.S.A., INC.

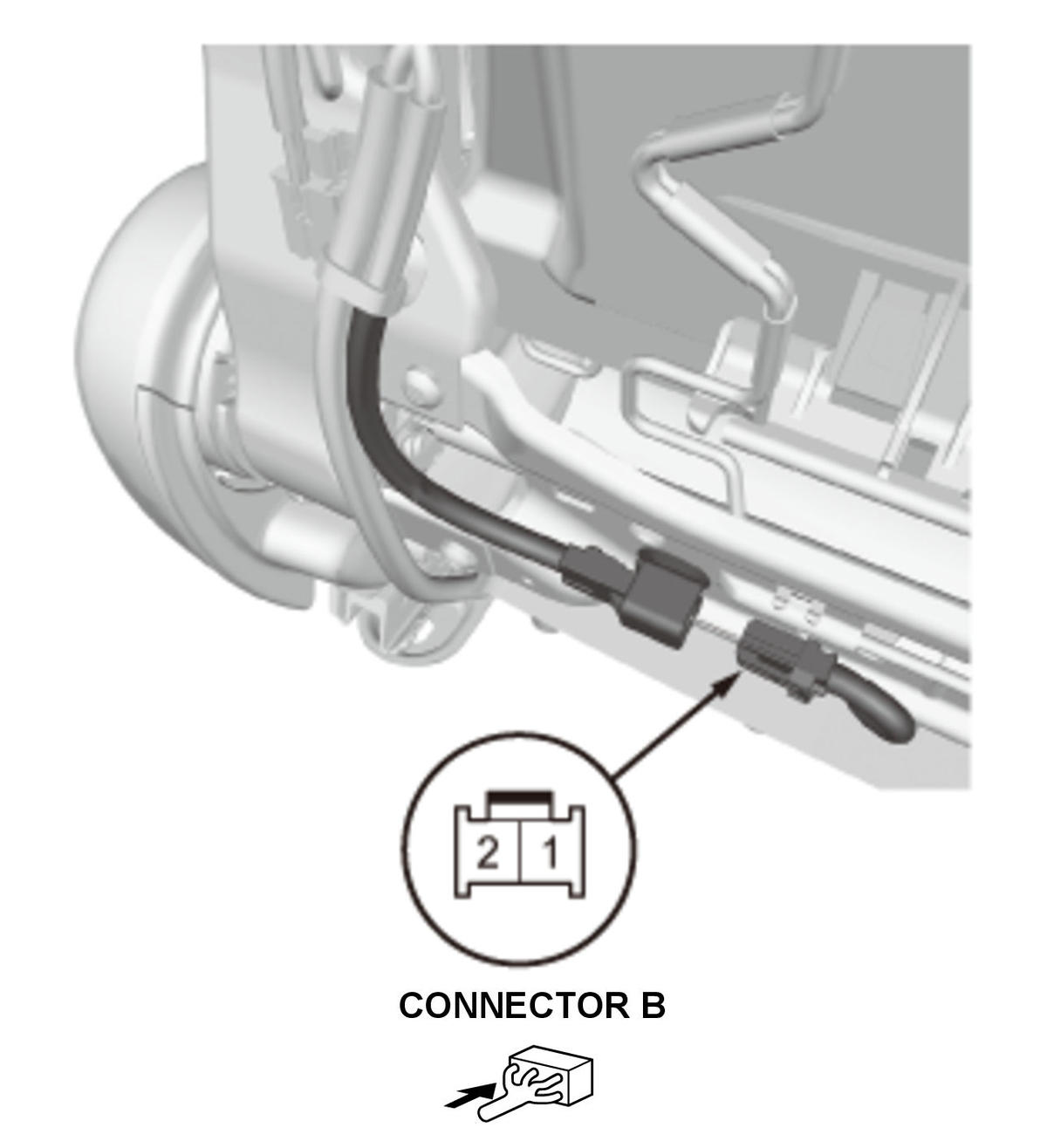

5. Disconnect the front passenger's seat-back heater connector B.

6. Check for continuity between the terminals according to the table.

7. If the continuity is not as specified, replace the Front Passenger's Seat-Back Heater .

Front Passenger's Seat-Back Heater Connector B
B1	B2

All Removed Parts - Install

1. Install the parts in the reverse order of removal.
