Front Seat-Back Heater

Front Seat-Back Cover - Remove

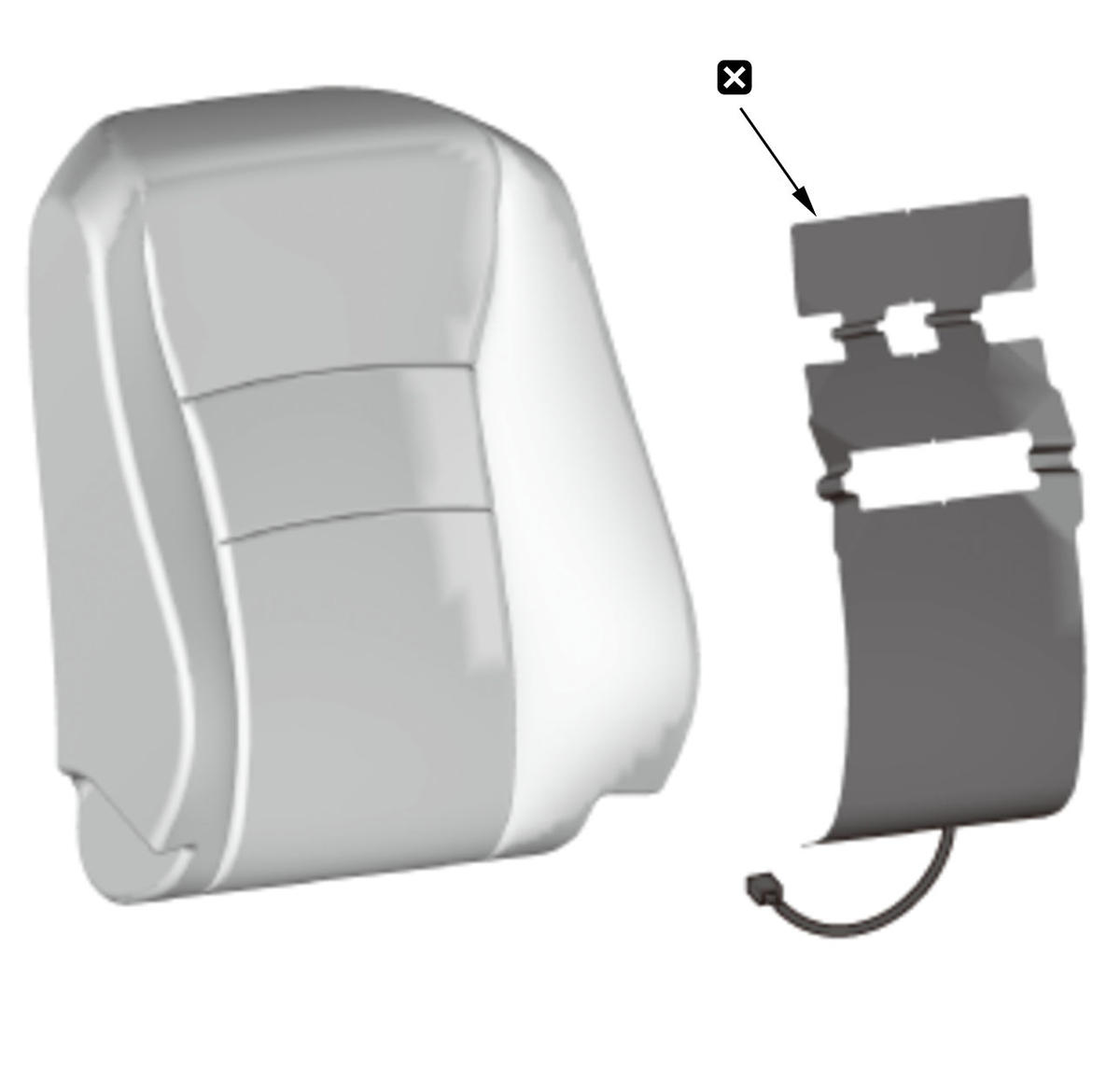

Front Seat-Back Heater - Remove

Courtesy of HONDA, U.S.A., INC.

NOTE: The front seat-back heater is glued to the front seat-back pad. When removing it, take care not to damage the front seat-back pad.
Front Seat-back Heater - Replacement
1. Attach the seat heater (A) to the seat back (B).
- Vertical adjustment: Overlap the positioning mark (C) on the seat heater side and the location mark (D) on the seat back side
- Horizontal adjustment: Overlap the positioning mark (E) on the seat heater side and the location mark (F) on the seat back side

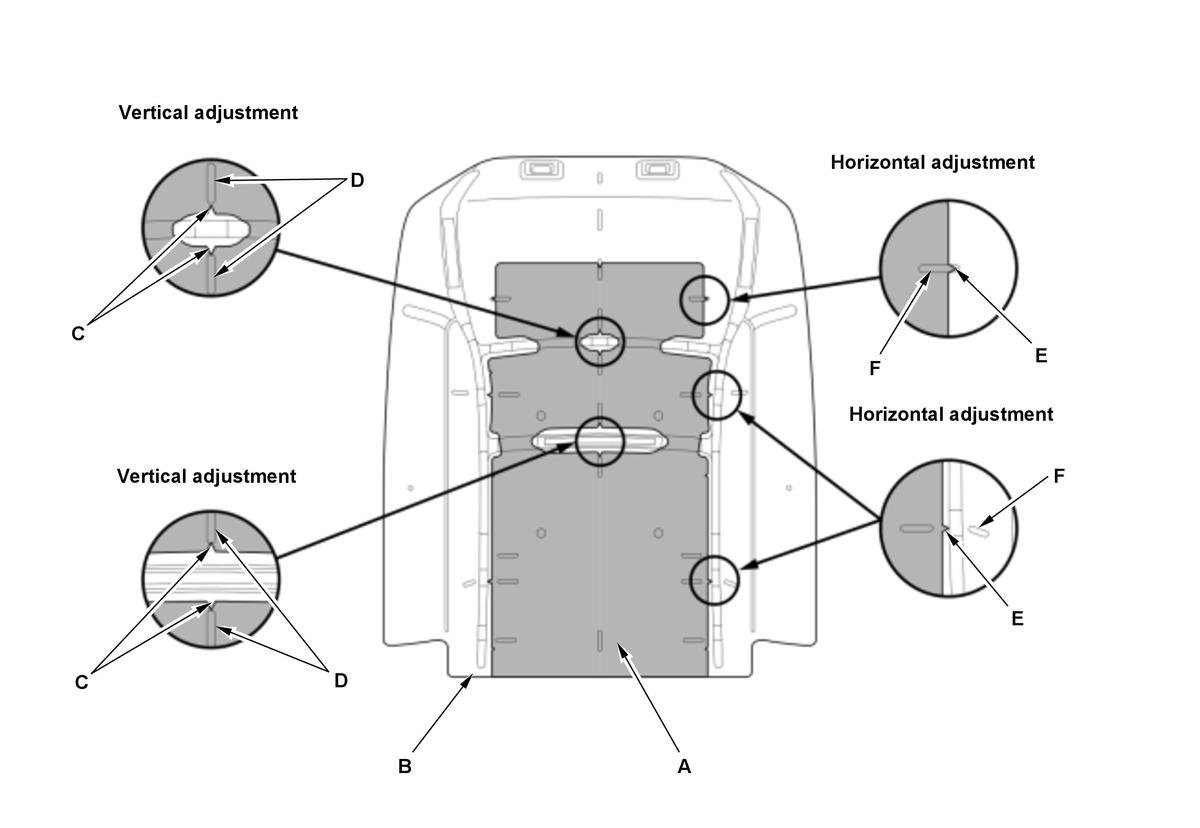

'16-18

Courtesy of HONDA, U.S.A., INC.

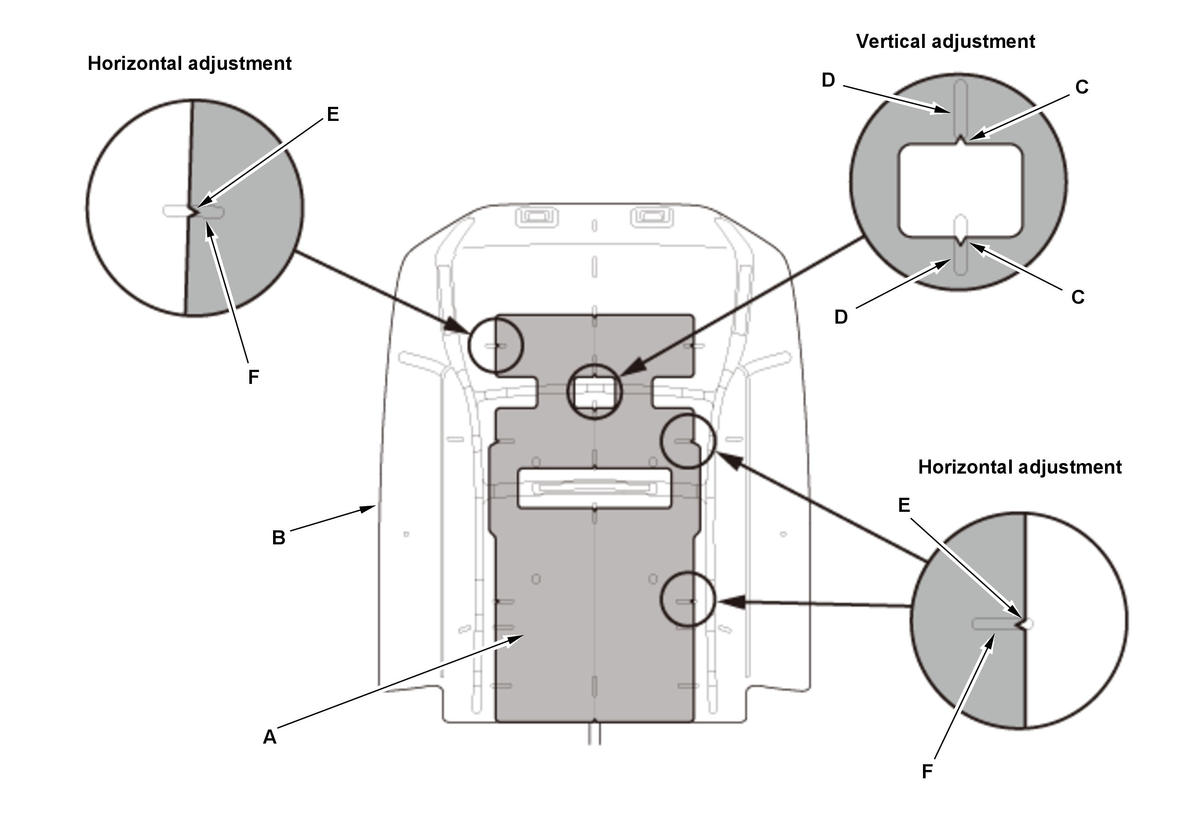

'19-21

Courtesy of HONDA, U.S.A., INC.
All Removed Parts - Install

1. Install the parts in the reverse order of removal.
