NO SOUND IS HEARD FROM THE SPEAKER(S) (Display Is Normal) (Without Navigation) (2016 2017 2018)
NOTE:
- Check the vehicle 12 volt battery condition first - Refer to:
- Set the fader and the balance positions to the center.
- Before doing this troubleshooting: Go to Audio System Symptom Troubleshooting - Audio Unit Power Will Not Turn On (No information display on touch screen) - Refer to:
Audio Unit Power Switch Will Not Turn On (No information display and no sound) (2016 2017 2018)
- Check the connectors for poor connections or loose terminals.
12 Volt Battery Test (With Auto Idle Stop System) or
12 Volt Battery Test (Without Auto Idle Stop System) .
- Problem verification
-1. Turn the vehicle to the ON mode.
- 2. Make sure the volume is not set to the MIN level, and check for sound in all modes (AM/FM, USB, AUX, and CD).
Is there sound in all modes, and is the sound normal?
YES
Intermittent failure, the system is OK at this time.
NO: No sound is heard in all modes
The failure is duplicated in all modes, go to step 2.
NO: No sound is heard in AM/FM mode. (display audio type). Go to:
NO: No sound is heard in AM/FM mode. (color audio type) Go to:
NO: No sound is heard in USB mode
USB Device Does Not Function (With Navigation, With Auto Idle Stop System) (2016 2017 2018)
USB Device Does Not Function (With Navigation, Without Auto Idle Stop System) (2016 2017 2018)
NO: No sound is heard in AUX mode
Auxiliary Input Sound Is Low Or Cannot Be Heard (With Navigation) (2016 2017 2018)
NO: No sound is heard in CD mode
- Speaker visual check
-1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Check the speaker(s) with no sound for any damage.
Is there any damage?
YES
Replace the faulty speaker(s) - Refer to:
Speaker Removal, Installation and Test (2016 2017 2018)
NO
Go to step 3.
- Speaker internal resistance check
-1. Test the speaker(s).
Is the speaker(s) OK?
YES
Go to step 4.
NO
Replace the faulty speaker(s) - Refer to:
- Wire check (FL SP +/-, FR SP +/-, RL SP +/-, RR SP +/-, SUBW +/- lines)
-1. Disconnect the following connectors.
Audio unit connector A (24P) Audio unit connector E (8P) Left tweeter 2P connector Right tweeter 2P connector - 2. Measure the resistance between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode Audio unit connector A (24P) disconnected Audio unit connector E (8P) disconnected Left tweeter 2P connector: disconnected Right tweeter 2P connector: disconnected Speaker Test point 1: Audio unit connector A (24P) -
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Test point 2: Audio unit connector A (24P) -
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Resistance Left rear door speaker No. 5 No. 6 About 4 Ω Right rear door speaker No. 9 No. 10 About 4 Ω Driver's door speaker No. 15 No. 16 About 4 Ω Front passenger's door speaker No. 19 No. 20 About 4 Ω Speaker Test point 1: Audio unit connector E (8P)
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Test point 1: Audio unit connector E (8P)
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Resistance Subwoofer No. 5 No. 7 About 2 Ω Is the resistance OK?
YES
The SP and SUBW wires are not open and short. Go to step 5.
NO
Repair an open or short in the wire(s) between the audio unit and the speaker(s).
- Shorted wire check (FL SP +/-, FR SP +/-, RL SP +/-, RR SP +/-, SUBW +/- lines)
-1. Disconnect the following connectors.
Driver's door speaker 2P connector Front passenger's door speaker 2P connector Left rear door speaker 2P connector Right rear door speaker 2P connector Subwoofer 2P connector - 2. Check for continuity between following test points and body ground individually.
Test condition Vehicle OFF (LOCK) mode Audio unit connector A (24P) disconnected Audio unit connector E (8P) disconnected Driver's door speaker 2P connector: disconnected Front passenger's door speaker 2P connector: disconnected Left rear door speaker 2P connector: disconnected Right rear door speaker 2P connector: disconnected Left tweeter 2P connector: disconnected Right tweeter 2P connector: disconnected Subwoofer 2P connector: disconnected Connector Speaker Terminal Audio unit connector A (24P) -
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Left rear door speaker No. 5 No. 6 Right rear door speaker No. 9 No. 10 Driver's door speaker, Left tweeter No. 15 No. 16 Front passenger's door speaker, Right tweeter No. 19 No. 20 Connector Speaker Terminal Audio unit connector E (8P) -
Refer to:
Audio Unit Connector For Inputs And Outputs [Display Audio Type (8-inch Screen)] (2016 2017 2018) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2016 2017) or
Audio Unit Connector For Inputs And Outputs [Color Audio Type (5-inch Screen)] (2018) .Subwoofer No. 5 No. 7 Is there continuity?
YES
Repair a short to body ground in the wire(s) between the audio unit and the speaker(s).
NO
The SP and SUBW wires are OK. Go to step 6.
- Open wire check (FL SP +/- (Tweeter), FR SP +/- (Tweeter) lines)
-1. Connect terminals A and B with jumper wires.
- 2. Check for continuity between test points 1 and 2.

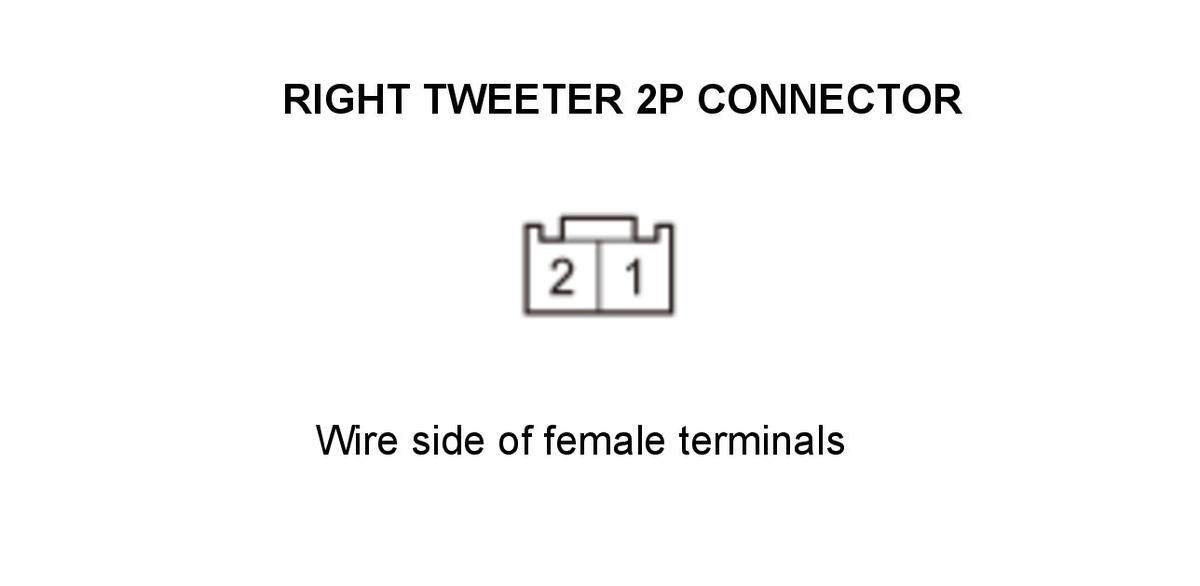

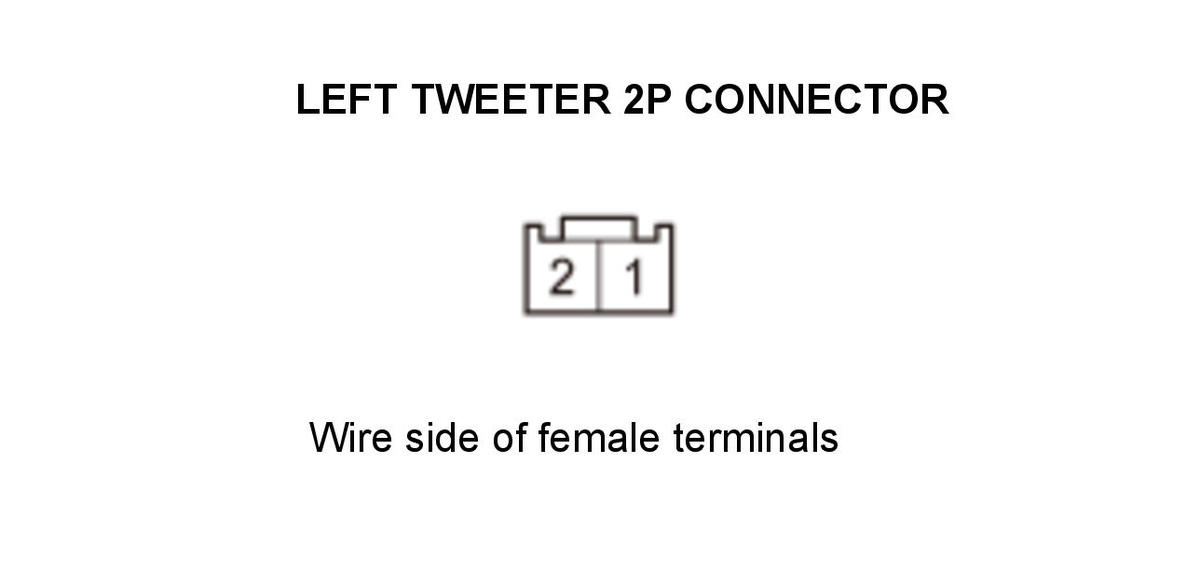

Test condition Vehicle OFF (LOCK) mode Audio unit connector A (24P) disconnected Driver's door speaker 2P connector: disconnected Front passenger's door speaker 2P connector: disconnected Left tweeter 2P connector: disconnected Right tweeter 2P connector: disconnected Audio unit connector A (24P) No. 15 and No. 16: jumped Audio unit connector A (24P) No. 19 and No. 20: jumped Test circuit 1 Test point 1 Left tweeter 2P connector No. 1 Test point 2 Left tweeter 2P connector No. 2 Test circuit 2 Test point 1 Right tweeter 2P connector No. 1 Test point 2 Right tweeter 2P connector No. 2 Is there continuity?
YES
Replace the audio unit - Refer to:
Audio Unit Removal and Installation [Display Audio Type (8-inch Screen)] (2016 2017 2018)
Audio Unit Removal and Installation [Color Audio Type (5-inch Screen)]
NO
Repair an open in the wire(s) between the audio unit and the tweeter.
