DTC Troubleshooting: U0100, U0104, U0114, U0122, U0128, U0131, U0151, U1100(Gauge Control Module with CAN Gateway) (2019 2020 2021)

DTC U0100  : Gauge Control Module Lost Communication with ENG/AT DTC U0104  : Gauge Control Module Lost Communication with Driving Support System Control Unit DTC U0114  : Gauge Control Module Lost Communication with All Wheel Drive Control Module DTC U0122  : Gauge Control Module Lost Communication with VSA Modulator-Control Unit DTC U0128  : Gauge Control Module Lost Communication with EPB DTC U0131  : Gauge Control Module Lost Communication with EPS Unit DTC U0151  : Gauge Control Module Lost Communication with SRS Unit DTC U1100  : Gauge Control Module Lost Communication with Driving Support System Control Unit

NOTE:

• Before you troubleshoot, review the general troubleshooting information .
• According to the detected DTC(s), check for the power circuit and the ground circuit of the control unit which cannot communicate with the gauge control module.
• Refer to the DTC shown on the display, then inspect the connectors and terminals based on the instructions.
• If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .

DTC (Gauge Control Module)

1. CAN gateway system DTC check

   -1. Check for CAN gateway system DTCs with the HDS.

   DTC Description	DTC
   U0029-00 CAN Gateway F-CAN ch A Bus Off
   U0047-00 CAN Gateway F-CAN ch B Bus Off
   U3000-49 CAN Gateway Internal Failure

   DTC (CAN GATEWAY)

   Is DTC U0029-00, U0047-00, and/or U3000-49 indicated?

   YES

   Go to the troubleshooting for CAN gateway system DTC(s) .

   NO

   Go to step 2.

2. F-CAN circuit communication check

   -1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   Does the gauge control module detect the CAN gateway Bus channels C?

   Bus C is Not Available

   Go to step 3.

   Bus C is Available

   Go to step  4.

3. Open wire check (F-CAN C lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

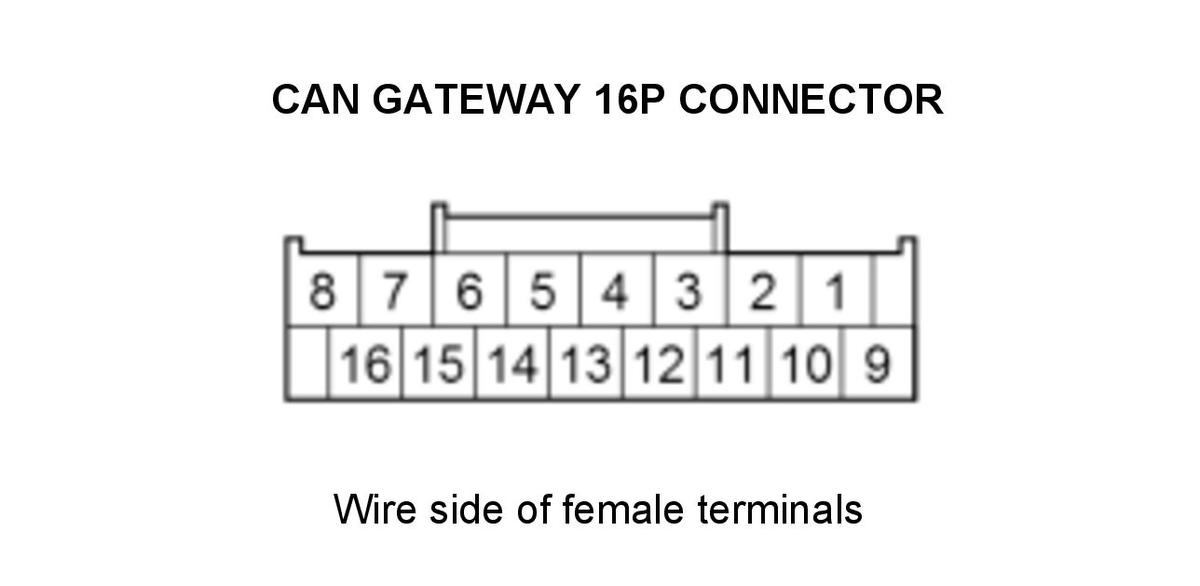

   CAN gateway 16P connectorGauge control module 32P connector

   -3. Check for continuity between test points 1 and 2 respectively.

   Test condition	Vehicle OFF (LOCK) modeCAN gateway 16P connector: disconnectedGauge control module 32P connector: disconnected
   Test point 1	CAN gateway 16P connector No. 5
   Test point 2	Gauge control module 32P connector No. 21

   Test point 1	CAN gateway 16P connector No. 13
   Test point 2	Gauge control module 32P connector No. 22

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN C_H and F-CAN C_L wires are OK. Check for poor connections or loose terminals at the CAN gateway and the gauge control module. Substitute a known-good gauge control module , then recheck. If indicated DTC goes away and the gauge control module was substituted, replace the original gauge control module .

   NO

   Repair an open in F-CAN C_H or F-CAN C_L wire between the CAN gateway and the gauge control module.

4. F-CAN circuit communication check (Transmitting control unit)

   -1. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

   F-CAN Bus Connected Unit Check

   According to the detected DTC on the following chart, make sure that the transmitting control unit detects the CAN gateway Bus channel(s) normally.

   DTC	Transmitting control unit	Detected CAN gateway Bus channel(s) at normal
   U0100	PCM	A
   U0104U1100	Multipurpose camera unit	B
   U0114	AWD control unit	B
   U0122	VSA modulator-control unit	B
   U0128	Electric parking brake control unit	B
   U0131	EPS control unit	B
   U0151	SRS unit	B

   Is it detected normally?

   Detected normal

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the transmitting control unit and the CAN gateway.

   U0100: PCM is Not Available for Bus A

   Go to step  5.

   U0104, U1100: Multipurpose camera unit is Not Available for Bus B

   Go to step  6.

   U0114: AWD control unit is Not Available for Bus B

   Go to step  6.

   U0122: VSA modulator-control unit is Not Available for Bus B

   Go to step  6.

   U0128: Electric parking brake control unit is Not Available for Bus B

   Go to step  6.

   U0131: EPS control unit is Not Available for Bus B

   Go to step  6.

   U0151: SRS unit is Not Available for Bus B

   Go to step  6.

5. Open wire check (F-CAN A lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. U0100: Jump the SCS line with the HDS, and wait more than 1 minute.

   SCS short

   -3. According to the detected DTC on the following chart, disconnect the transmitting control unit connector(s).

   DTC	Connector
   -	CAN gateway 16P connector
   U0100	PCM connector A (51P)

   -4. Check for continuity between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) modeCAN gateway 16P connector: disconnectedTransmitting control unit connector(s) for indicated DTCs: disconnected

   DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
   		Connector	Terminal	Connector	Terminal
   U0100	F-CAN A_H	CAN gateway 16P connector	No. 3	PCM connector A (51P)	No. 3
   	F-CAN A_L		No. 11		No. 4

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN A_H wire and the F-CAN A_L wire are OK.According to the detected DTC on the following chart substitute or replace the correspond control unit.

   DTC	Operation for transmitting control unit
   U0100	Substitute a known-good PCM , then recheck. If DTC U0100 goes away after substitution, replace the original PCM .

   NO

   Repair an open in F-CAN A_H or F-CAN A_L wire between the CAN gateway and the transmitting control unit.

6. Open wire check (F-CAN B lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. U0151: Do the 12 volt battery terminal disconnection procedure , and wait for at least 3 minutes.

   -3. According to the detected DTC on the following chart, disconnect the transmitting control unit connector(s).

   DTC	Connector
   -	CAN gateway 16P connector
   U0104U1100	Multipurpose camera unit 20P connector
   U0114	AWD control unit 24P connector
   U0122	VSA modulator-control unit 21P connector
   U0128	Electric parking brake control unit 30P connector
   U0131	EPS control unit connector B (6P)
   U0151	SRS unit connector A (39P)

   -4. Check for continuity between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) modeCAN gateway 16P connector: disconnectedTransmitting control unit connector(s) for indicated DTCs: disconnected

   DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
   		Connector	Terminal	Connector	Terminal
   U0104U1100	F-CAN B_H	CAN gateway 16P connector	No. 6	Multipurpose camera unit 20P connector	No. 2
   	F-CAN B_L		No. 14		No. 13
   U0114	F-CAN B_H	CAN gateway 16P connector	No. 6	AWD control unit 24P connector	No. 14
   	F-CAN B_L		No. 14		No. 24

   DTC	Circuit name	Test point 1 (Receiving control unit)		Test point 2 (Transmitting control unit)
   		Connector	Terminal	Connector	Terminal
   U0122	F-CAN B_H	CAN gateway 16P connector	No. 6	VSA modulator-control unit 21P connector	No. 8
   	F-CAN B_L		No. 14		No. 15
   U0128	F-CAN B_H	CAN gateway 16P connector	No. 6	Electric parking brake control unit 30P connector	No. 30
   	F-CAN B_L		No. 14		No. 29
   U0131	F-CAN B_H	CAN gateway 16P connector	No. 6	EPS control unit connector B (6P)	No. 4
   	F-CAN B_L		No. 14		No. 3
   U0151	F-CAN B_H	CAN gateway 16P connector	No. 6	SRS unit connector A (39P)	No. 34
   	F-CAN B_L		No. 14		No. 35

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The F-CAN B_H wire and the F-CAN B_L wire are OK.According to the detected DTC on the following chart substitute or replace the correspond control unit.

   DTC	Operation for transmitting control unit
   U0104U1100	Substitute a known-good multipurpose camera unit , then recheck. If DTC U0104 and U1100 go away after substitution, replace the original multipurpose camera unit .
   U0114	Substitute a known-good AWD control unit , then recheck. If DTC U0114 goes away after substitution, replace the original AWD control unit .
   U0122	Replace the VSA modulator-control unit .
   U0128	Substitute a known-good electric parking brake control unit , then recheck. If DTC U0128 goes away after substitution, replace the original electric parking brake control unit .
   U0131	Substitute a known-good EPS control unit , then recheck. If DTC U0131 goes away after substitution, replace the original EPS control unit .
   U0151	Substitute a known-good SRS unit , then recheck. If DTC U0151 goes away after substitution, replace the original SRS unit .

   NO

   Repair an open in F-CAN B_H or F-CAN B_L wire between the CAN gateway and the transmitting control unit.
