Electric Parking Brake Control Unit Connector for Inputs and Outputs (2019 2020 2021)

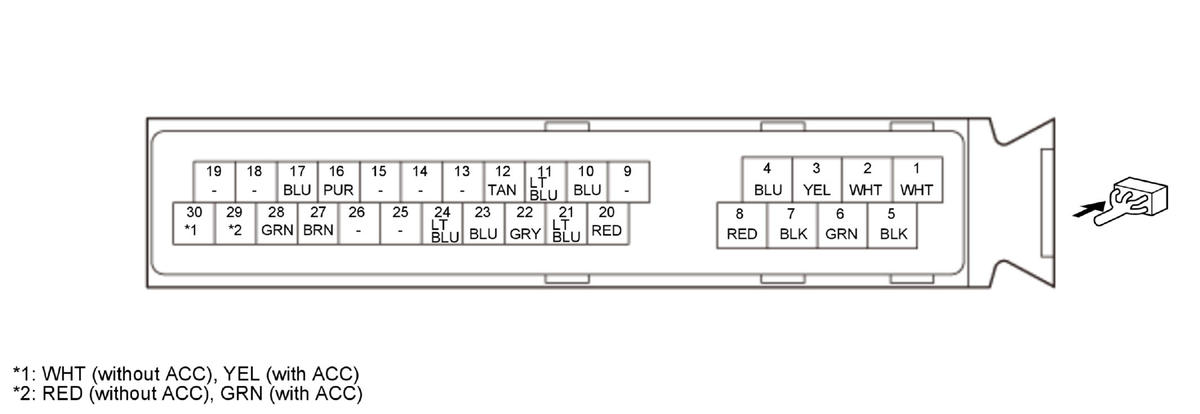

Electric Parking Brake Control Unit Inputs and Outputs for 30P Connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal sign	Description
1	+B EPB L	Power source for the electric parking brake control unit (Power source for the left electric parking brake actuator)
2	EPB L ACT+	Drive the left actuator motor
3	+B EPB R	Power source for the electric parking brake control unit (Power source for the right electric parking brake actuator)
4	EPB R ACT+	Drive the right actuator motor
5	GND	Ground for the electric parking brake control unit
6	EPB L ACT-	Drive the left actuator motor
7	GND	Ground for the electric parking brake control unit
8	EPB R ACT-	Drive the right actuator motor
9	Not used	---
10	SW2	Detects electric parking brake switch signal
11	SW1	Detects electric parking brake switch signal
12	PARK LAMP	Sends electric parking brake indicator signal
13	Not used	---
14	Not used
15	Not used
16	ACC	Power source for accessories
17	PARKING BRAKE SW	Sends electric parking brake system indicator signal
18	Not used	---
19	Not used	---
20 *1	SVCC (CLUTCH SNSR)	Power source for clutch pedal stroke sensor
21 *1	CPS2 (CLUTCH SNSR)	Detects clutch pedal stroke sensor signal
22 *1	SGND (CLUTCH SNSR)	Ground for the clutch pedal stroke sensor
23 *1	CPS1 (CLUTCH SNSR)	Detects clutch pedal stroke sensor signal
24	IG1 VSA/ABS	Power source for activating the system
25	Not used	---
26	Not used	---
27	SW4	Detects electric parking brake switch signal
28	SW3	Detects electric parking brake switch signal

*1: M/T

*2: Without ACC

*3: With ACC

Terminal number	Terminal sign	Description
29	F-CAN_L 2F-CAN B_L 3	F-CAN communication circuit
30	F-CAN_H 2F-CAN B_H 3	F-CAN communication circuit

*1: M/T

*2: Without ACC

*3: With ACC
