VSA System Symptom Troubleshooting - ABS indicator, brake system indicator (red), VSA indicator, and brake system indicator (amber) do not go off (With ACC) (2016 2017 2018 2019)

  1. All DTCs check

    -1. Turn the vehicle to the ON mode.

    -2. Do the All DTCs check with the HDS.

    All DTCs

    Are there DTCs indicated?

    YES

    Do the DTC troubleshooting.

    NO

    Go to step 2.

  2. Gauge control module operation check

    -1. Do the gauge control module self-diagnostic function .

    Is the gauge control module OK?

    YES

    Go to step 3.

    NO

    Replace the gauge control module .

  3. Fuse check 1

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Check the following fuse.

    Fuse No. B34 (10 A)
    Location Under-dash fuse/relay box

    Is the fuse OK?

    YES

    The fuse is OK. Reinstall the fuse, then go to step 4.

    NO

    Replace the fuse. Turn the vehicle to the ON mode, then the OFF (LOCK) mode. If the fuse blows again, repair the short to body ground on the No. B34 (10 A) fuse circuit.

  4. Fuse check 2

    -1. Check the following fuse.

    Fuse No. A3-2 (40 A)
    Location Under-hood fuse/relay box

    Is the fuse OK?

    YES

    The fuse is OK. Reinstall the fuse, then go to step 5.

    NO

    Replace the fuse. If the fuse blows again, repair the short to body ground on the No. A3-2 (40 A) fuse circuit.

  5. Open wire check (IG1 VSA/ABS line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    VSA modulator-control unit 46P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      VSA modulator-control unit 46P connector: disconnected
    Test point 1 VSA modulator-control unit 46P connector No. 13
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The IG1 VSA/ABS wire is OK. Go to step 6.

    NO

    Repair an open in the wire between the No. B34 (10 A) fuse in the under-dash fuse/relay box and the VSA modulator-control unit.

  6. Open wire check (+B ABS/VSA FSR line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Measure the voltage between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
    Test point 1 VSA modulator-control unit 46P connector No. 1
    Test point 2 Body ground

    Is there battery voltage?

    YES

    The +B ABS/VSA FSR wire is OK. Go to step 7.

    NO

    Repair an open in the wire between the No. A3-2 (40 A) fuse in the under-hood fuse/relay box and the VSA modulator-control unit.

  7. Open wire check (GND line)

    -1. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      VSA modulator-control unit 46P connector: disconnected
    Test point 1 VSA modulator-control unit 46P connector No. 4
    Test point 2 Body ground

    Is there continuity?

    YES

    The GND wire is OK. Go to step 8.

    NO

    Repair an open in the wire between the VSA modulator-control unit and body ground (G303).

  8. F-CAN circuit communication check

    -1. Reconnect the following connector.

    VSA modulator-control unit 46P connector

    -2. Select the FUNCTION TEST in the CAN gateway with the HDS, then select the F-CAN Bus Connected Unit Check.

    F-CAN Bus Connected Unit Check

    Which result is indicated?

    Gauge control module (Bus A) is Not Available

    Go to step 9.

    VSA modulator-control unit (Bus A) is Not Available

    Go to step 10.

    VSA modulator-control unit (Bus B) is Not Available

    Go to step 11.

    VSA modulator-control unit and gauge control module are Detected

    Intermittent failure, the system is OK at this time. Refer to intermittent failures troubleshooting .

  9. Open wire check (F-CAN A_H, F-CAN A_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

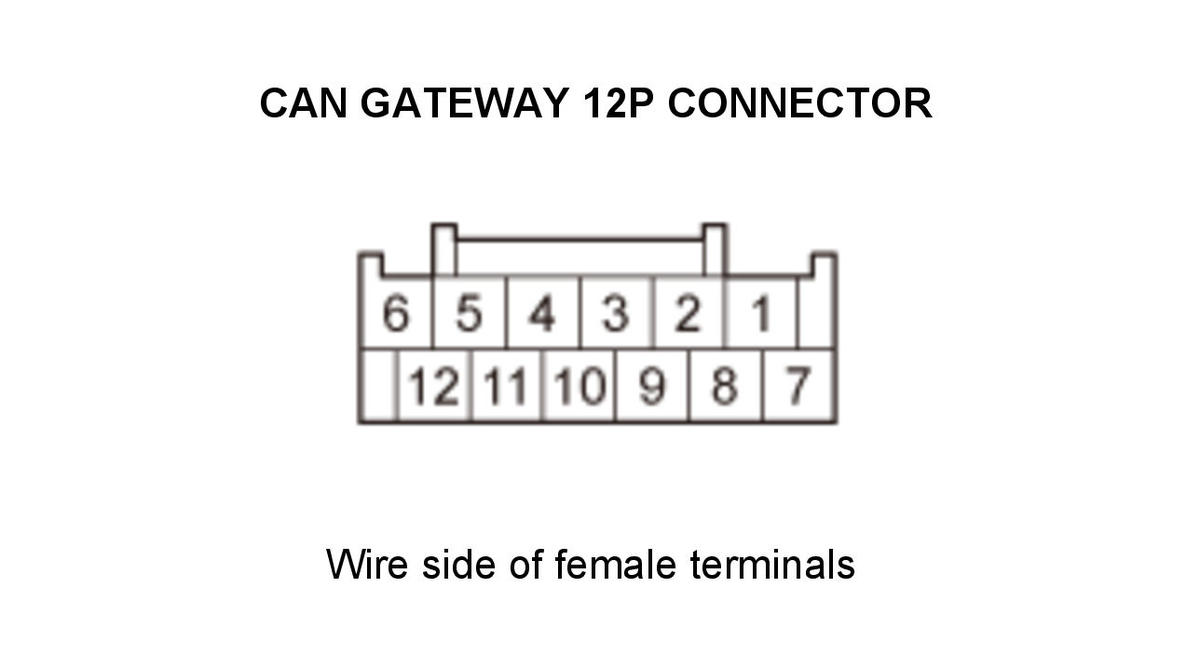

    CAN gateway 12P connector
    Gauge control module connector A (32P)

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 12P connector: disconnected
      Gauge control module connector A (32P): disconnected
    Test point 1 CAN gateway 12P connector No. 3
    Test point 2 Gauge control module connector A (32P) No. 19
    Test point 1 CAN gateway 12P connector No. 9
    Test point 2 Gauge control module connector A (32P) No. 20
    GHH412735Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for loose terminals in the CAN gateway 12P connector and the gauge control module connector A (32P) connector. If they are OK, substitute a known-good gauge control module , then retest. If the indicators come on then go off after substitution, replace the original gauge control module .

    NO

    Repair an open in the wire between the gauge control module and the CAN gateway.

  10. Open wire check (F-CAN A_H, F-CAN A_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    CAN gateway 12P connector
    VSA modulator-control unit 46P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 12P connector: disconnected
      VSA modulator-control unit 46P connector: disconnected
    Test point 1 CAN gateway 12P connector No. 3
    Test point 2 VSA modulator-control unit 46P connector No. 20
    Test point 1 CAN gateway 12P connector No. 9
    Test point 2 VSA modulator-control unit 46P connector No. 21
    GHH412736Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for loose terminals in the VSA modulator-control unit 46P connector. If the symptom/indication is still present, replace the VSA modulator-control unit .

    NO

    Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.

  11. Open wire check (F-CAN B_H, F-CAN B_L lines)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connectors.

    CAN gateway 12P connector
    VSA modulator-control unit 46P connector

    -3. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      CAN gateway 12P connector: disconnected
      VSA modulator-control unit 46P connector: disconnected
    Test point 1 CAN gateway 12P connector No. 12
    Test point 2 VSA modulator-control unit 46P connector No. 24
    Test point 1 CAN gateway 12P connector No. 5
    Test point 2 VSA modulator-control unit 46P connector No. 25
    GHH412737Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Check for loose terminals in the VSA modulator-control unit 46P connector. If the symptom/indication is still present, replace the VSA modulator-control unit .

    NO

    Repair an open in the wire between the VSA modulator-control unit and the CAN gateway.
