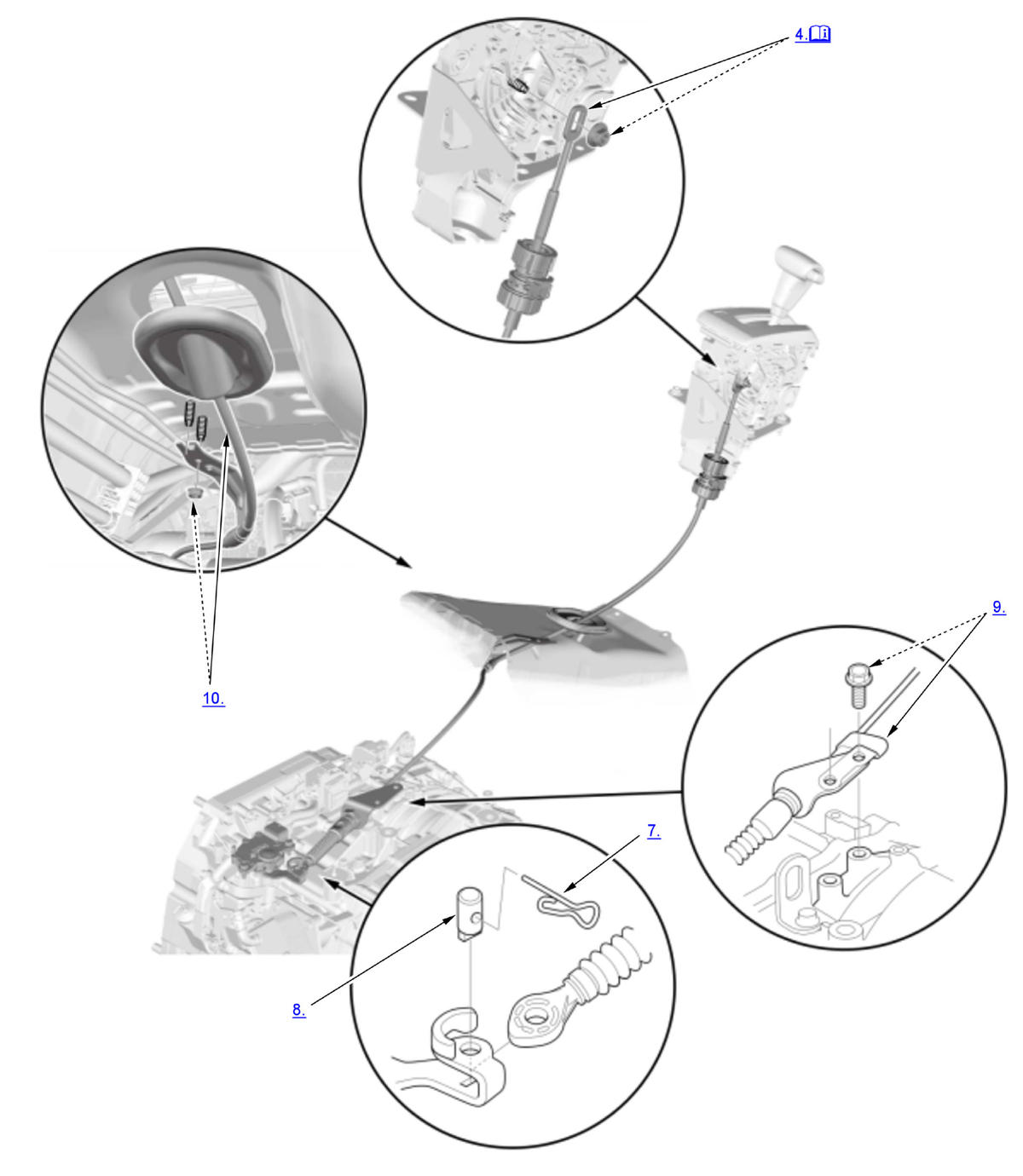

Shift Cable Removal, Installation, and Adjustment: Removal

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repair or service.

NOTE:

Where icon is shown further information.
Do not bend the shift cable excessively.

Courtesy of HONDA, U.S.A., INC.

Detailed information, notes and precautions

Vehicle - Lift
Center Maintenance Cover - Remove

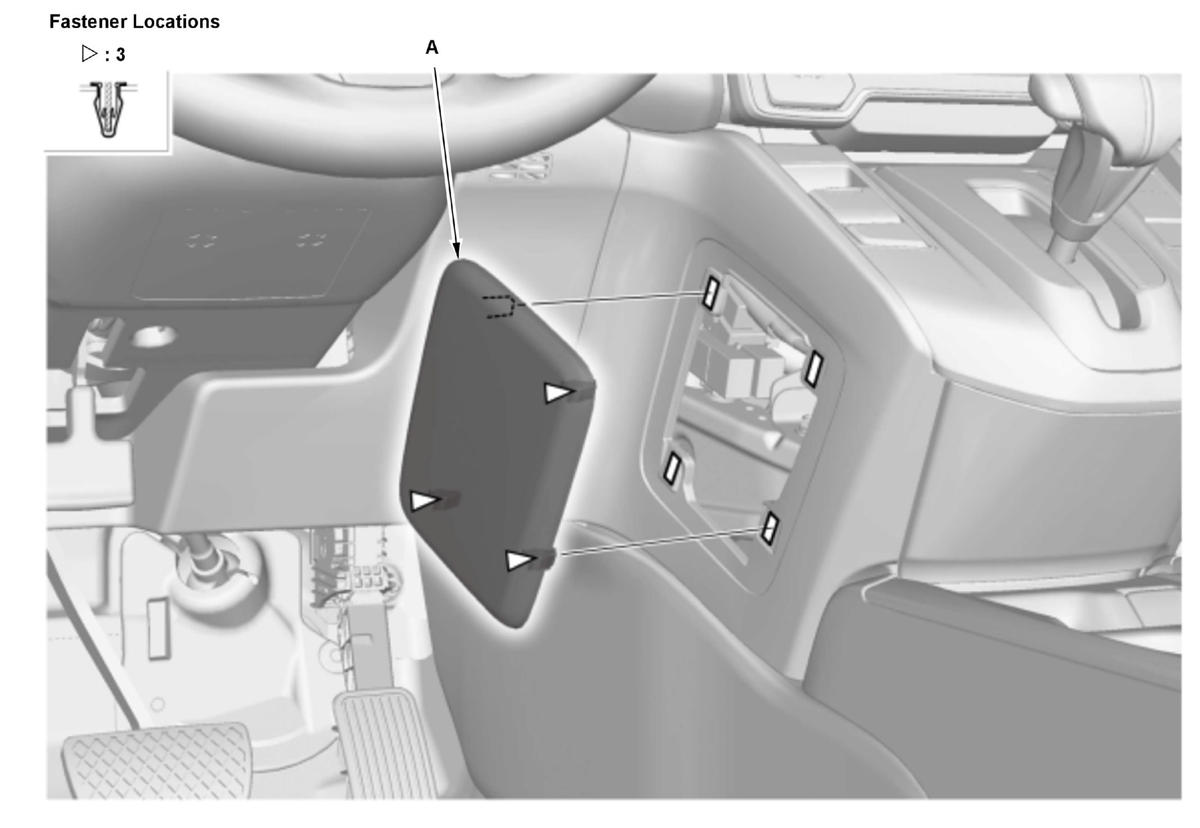

1. Remove the center maintenance cover (A),

Courtesy of HONDA, U.S.A., INC.
Front Console Cover - Remove (Driver's Side)

Shift Cable (Shift Lever Side) - Remove

Courtesy of HONDA, U.S.A., INC.

1. Shift the transmission to R position/mode.

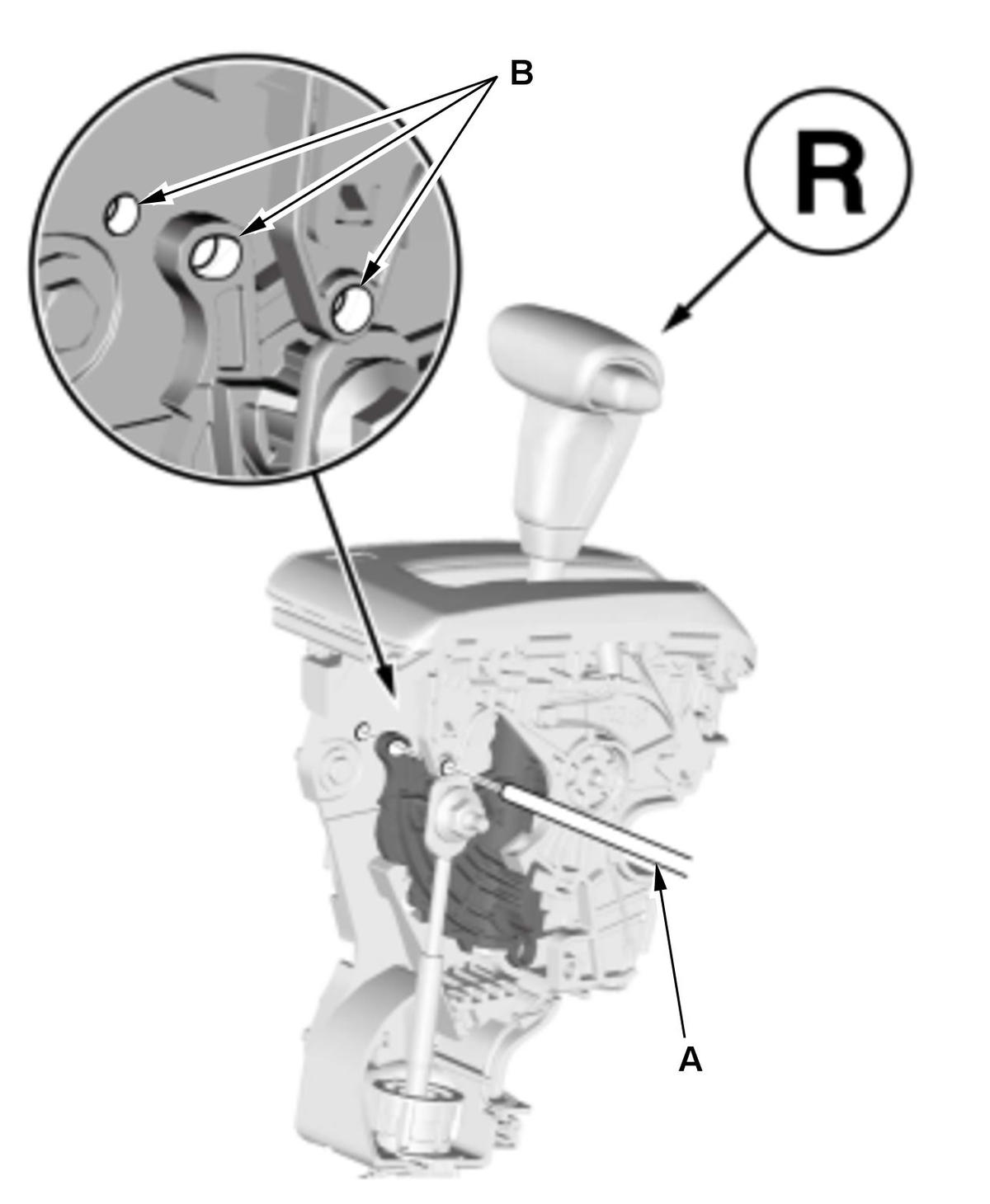

2. Insert a 6.0 mm (0.236 in) pin (A) into the positioning holes (B).

NOTE: Use only a 6.0 mm (0.236 in) pin with no burrs.

3. Remove the shift cable end nut.

Courtesy of HONDA, U.S.A., INC.

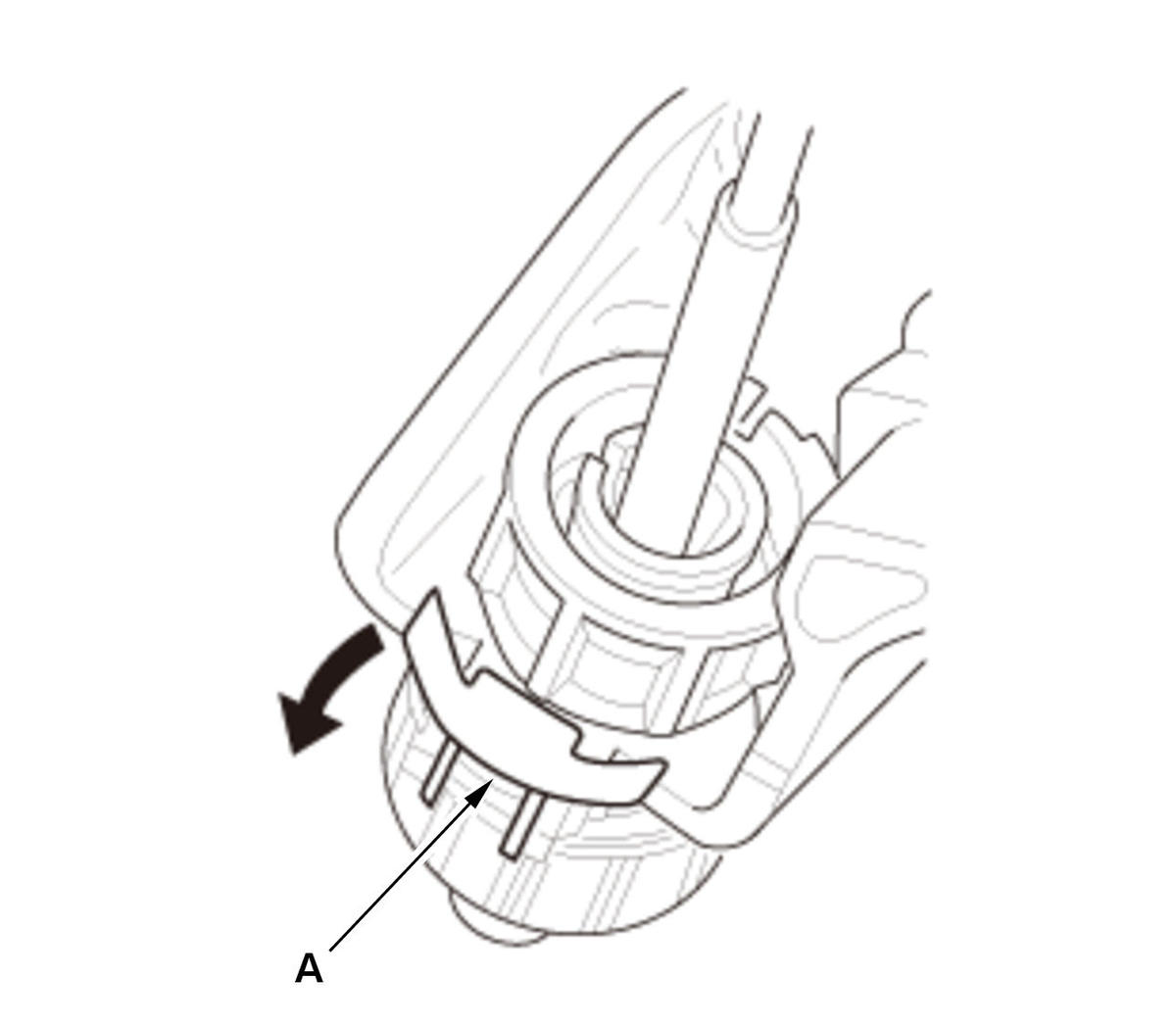

4. Unlock the retainer lock (A).

Courtesy of HONDA, U.S.A., INC.

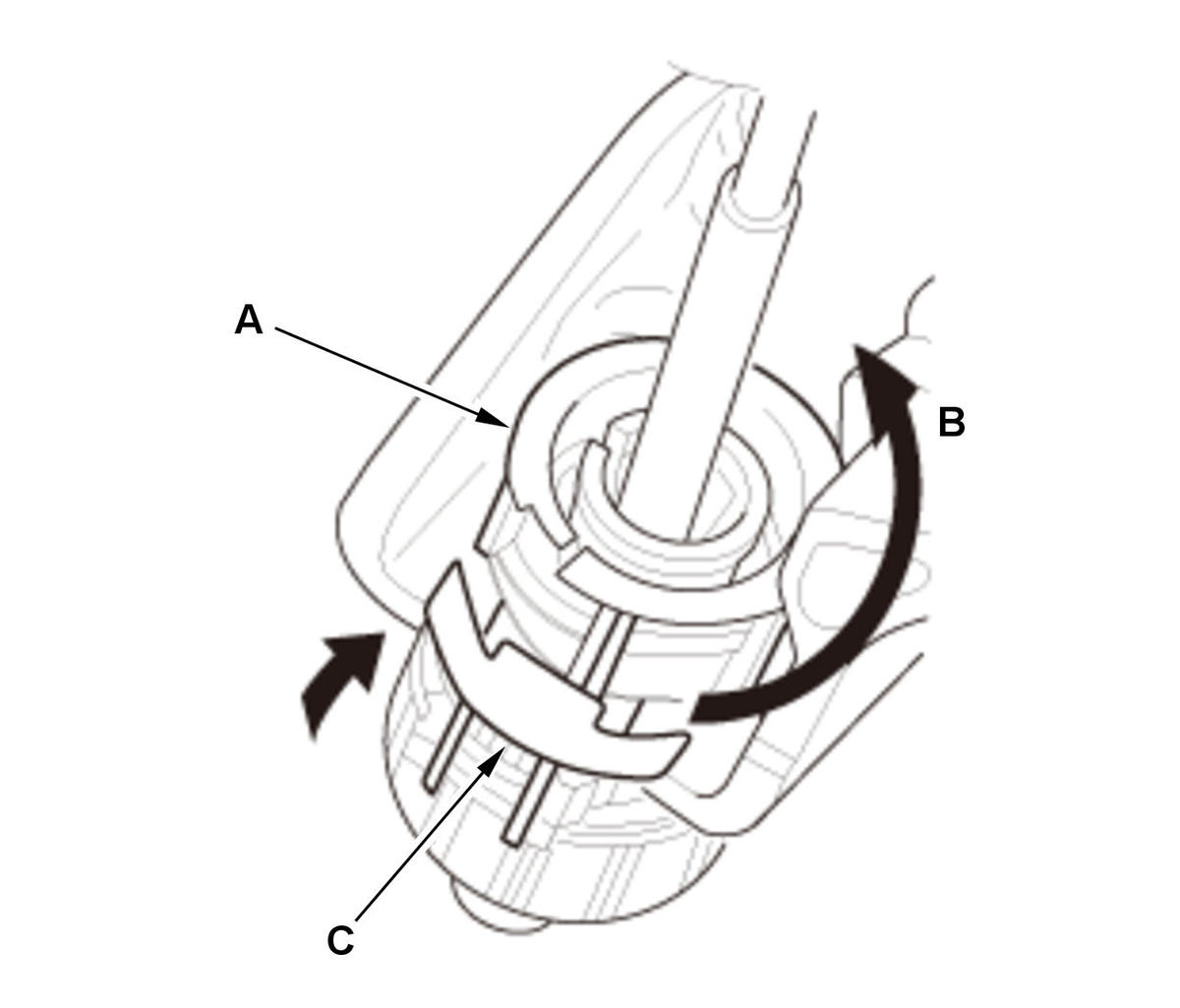

5. Rotate the socket holder retainer (A) in arrow direction (B) until it stops, and push the retainer lock (C) into the socket holder retainer to lock the retainer.

Courtesy of HONDA, U.S.A., INC.

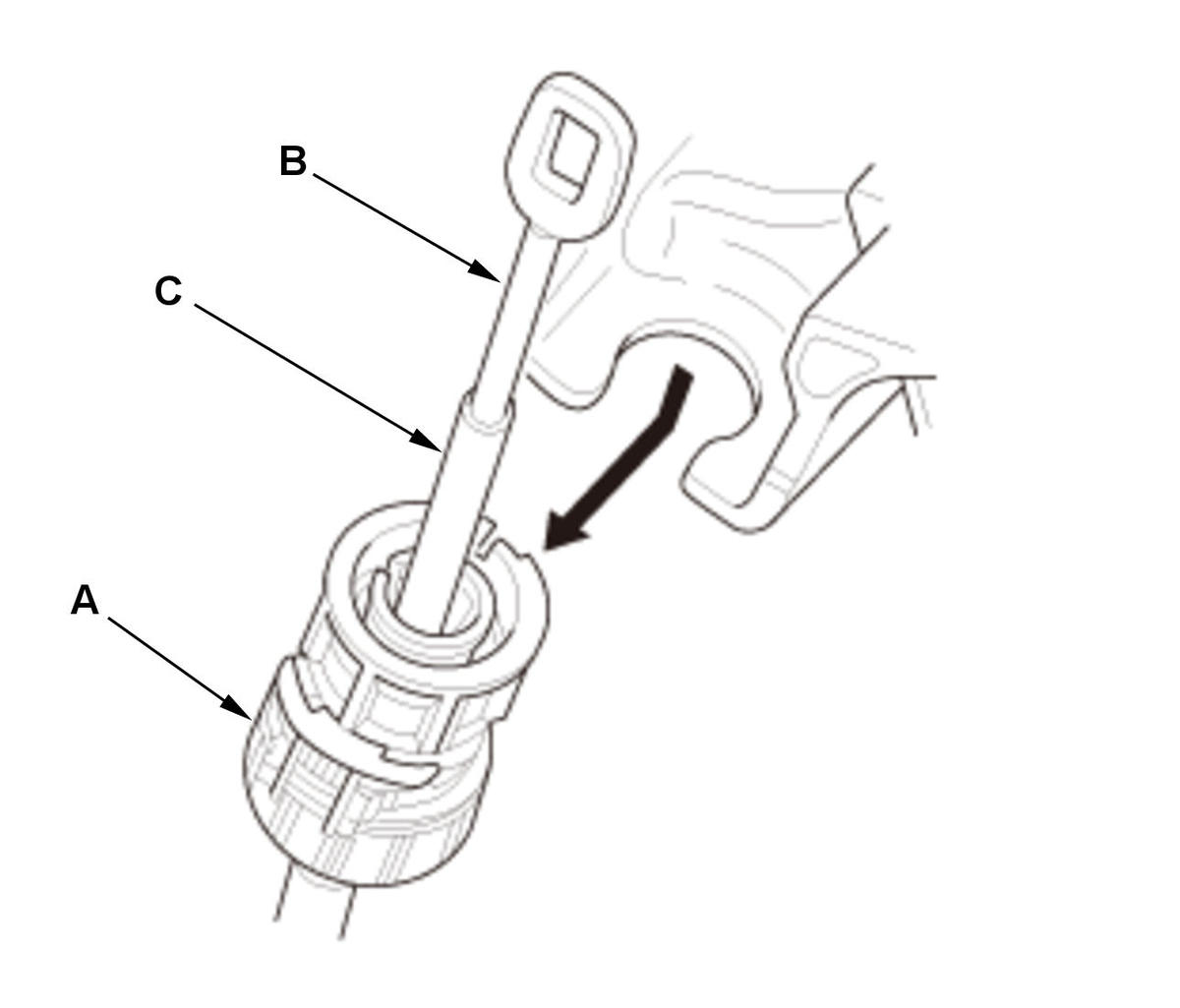

6. Slide the socket holder (A) away as shown to remove the shift cable (B).
NOTE: Do not remove the shift cable by pulling the shift cable guide (C).

Air Cleaner - Remove
Throttle Body Inlet Pipe - Remove (1.5 L engine)
Lock Pin - Remove
Control Pin - Remove
Shift Cable Bracket - Remove
Shift Cable (Under Side) - Remove
