DTC Troubleshooting: P0710(CVT (TCM)) (2018 2019 2020 2021)

DTC P0710  : CVT Fluid Temperature Sensor (Out of Range)

NOTE:

• Before you troubleshoot, review the General Troubleshooting Information .
• This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

DTC(CVT)

1. DTC check

   -1. Turn the vehicle to the ON mode.

   -2. Check for other Pending or Confirmed DTCs indicated along with DTC P0710 with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0712 CVT Fluid Temperature Sensor (Short)
   P0713 CVT Fluid Temperature Sensor (Open)

   Are there other DTCs indicated at the same time?

   YES

   Go to the indicated DTC's troubleshooting .

   NO

   Go to step 2.

2. Problem verification

   -1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CVTF Temp Sensor (V)	0.05-0.09	V
   	4.83-4.92	V

   Do the current condition(s) match the threshold?

   YES (0.05-0.09 V)

   Go to step 3.

   YES (4.83-4.92 V)

   Go to step 5.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections and loose terminals between the transmission fluid temperature sensor and the TCM. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/onboard snapshot.

3. Transmission fluid temperature sensor check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Solenoid wire harness A 8P connector

   -3. Turn the vehicle to the ON mode.

   -4. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CVTF Temp Sensor (V)	Less than 0.09	V

   Do the current condition(s) match the threshold?

   YES

   The transmission fluid temperature sensor is OK. Go to step 4.

   NO

   Faulty transmission fluid temperature sensor. Replace solenoid wire harness A .

4. Shorted wire check (TATF line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   TCM 50P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Solenoid wire harness A 8P connector: disconnected
   	TCM 50P connector: disconnected
   Test point 1	TCM 50P connector No. 33
   Test point 2	Body ground

   Is there continuity?

   YES

   Repair a short to ground in the TATF wire between solenoid wire harness A and the TCM.

   NO

   The TATF wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good TCM , then recheck. If this DTC goes away and the TCM was substituted, replace the original TCM .

5. Determine possible failure area (TATF line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connector.

   Solenoid wire harness A 8P connector

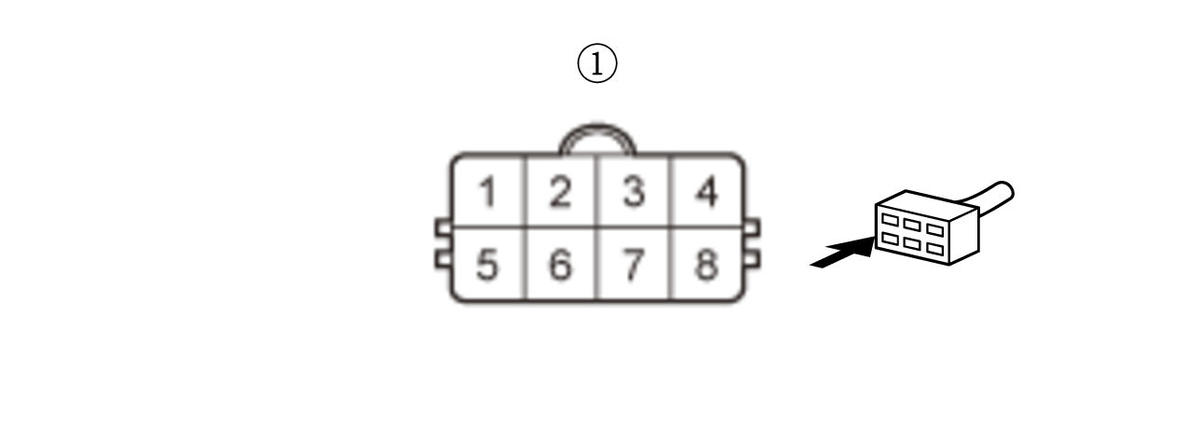

   -3. Connect terminals A and B with a jumper wire.

   Terminal A	Solenoid wire harness A 8P connector (female terminals) No. 7:
   Terminal B	Body ground

   Courtesy of HONDA, U.S.A., INC.

   -4. Turn the vehicle to the ON mode.

   -5. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CVTF Temp Sensor (V)	Less than 0.07	V

   Do the current condition(s) match the threshold?

   YES

   Go to step 6.

   NO

   Go to step 7.

6. Transmission fluid temperature sensor check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the jumper wire.

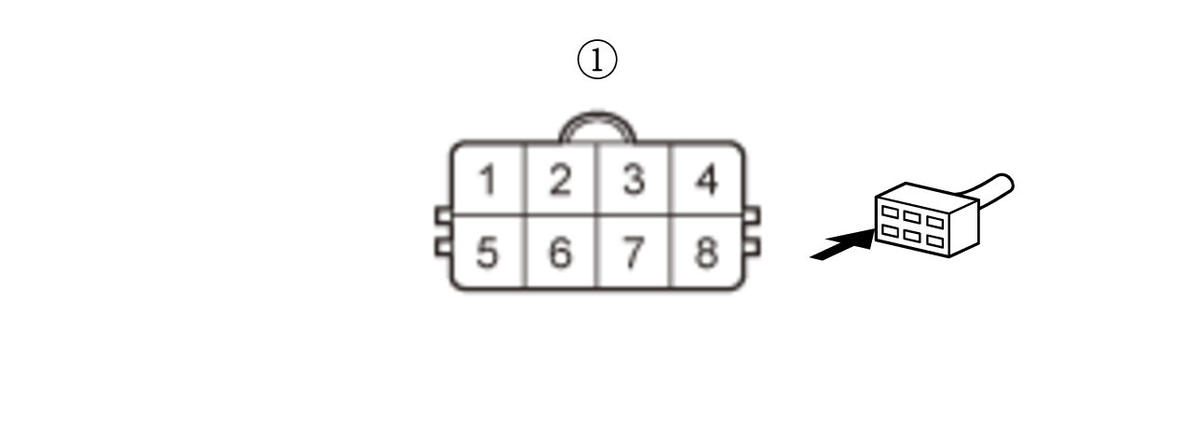

   -3. Connect terminals A and B with a jumper wire.

   Terminal A	Solenoid wire harness A 8P connector (female terminals) No. 6:
   Terminal B	Solenoid wire harness A 8P connector (female terminals) No. 7:

   Courtesy of HONDA, U.S.A., INC.

   -4. Turn the vehicle to the ON mode.

   -5. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current conditions
   	Values	Unit	Values	Unit
   CVTF Temp Sensor (V)	Less than 0.07	V

   Do the current condition(s) match the threshold?

   YES

   Faulty transmission fluid temperature sensor. Replace solenoid wire harness A .

   NO

   The transmission fluid temperature sensor is OK. Repair an open in the SG5 wire between solenoid wire harness A and the TCM.

7. Open wire check (TATF line)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the jumper wire.

   -3. Disconnect the following connector.

   TCM 50P connector

   -4. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Solenoid wire harness A 8P connector: disconnected
   	TCM 50P connector: disconnected

   Test point 1	Solenoid wire harness A 8P connector (female terminals) No. 7:
   Test point 2	TCM 50P connector No. 33

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The TATF wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting, or substitute a known-good TCM , then recheck. If this DTC goes away and the TCM was substituted, replace the original TCM .

   NO

   Repair an open in the TATF wire between solenoid wire harness A and the TCM.
