Steering Wheel Removal and Installation: Installation
SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.
NOTE:
Where icon is shown, further information shown below.
1
| Detailed information, notes and precautions | |
| Torque: N.m (kgf.m, lbf.ft) | |
| Replace |
- Cable Reel - Align
- Steering Wheel - Install

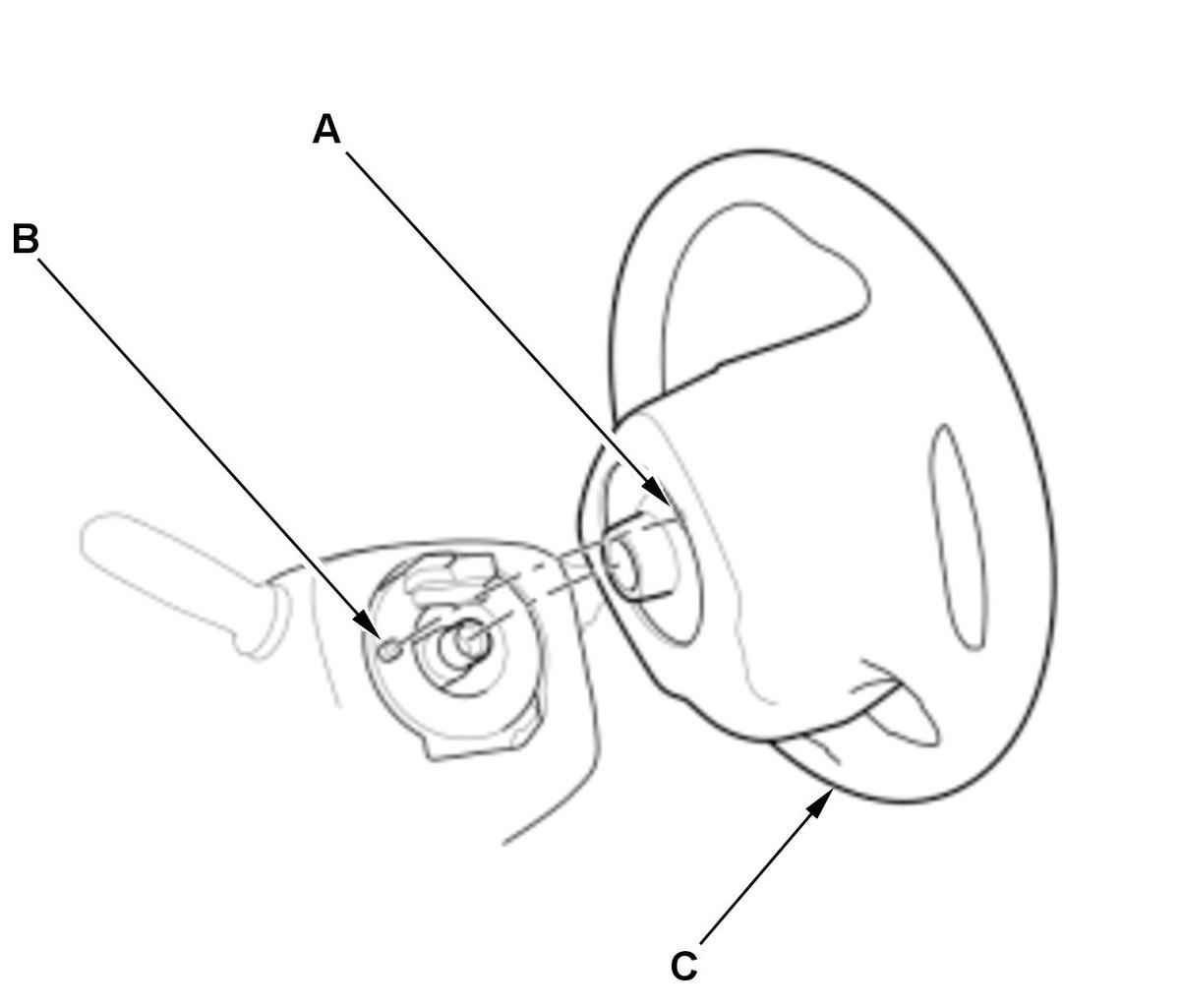

1. Position the steering wheel hub (A) so that it engages the pin (B) of the cable reel. 2. Install the steering wheel (C) onto the steering column shaft.
NOTE: Do not tap on the steering wheel or the steering column shaft when installing the steering wheel.

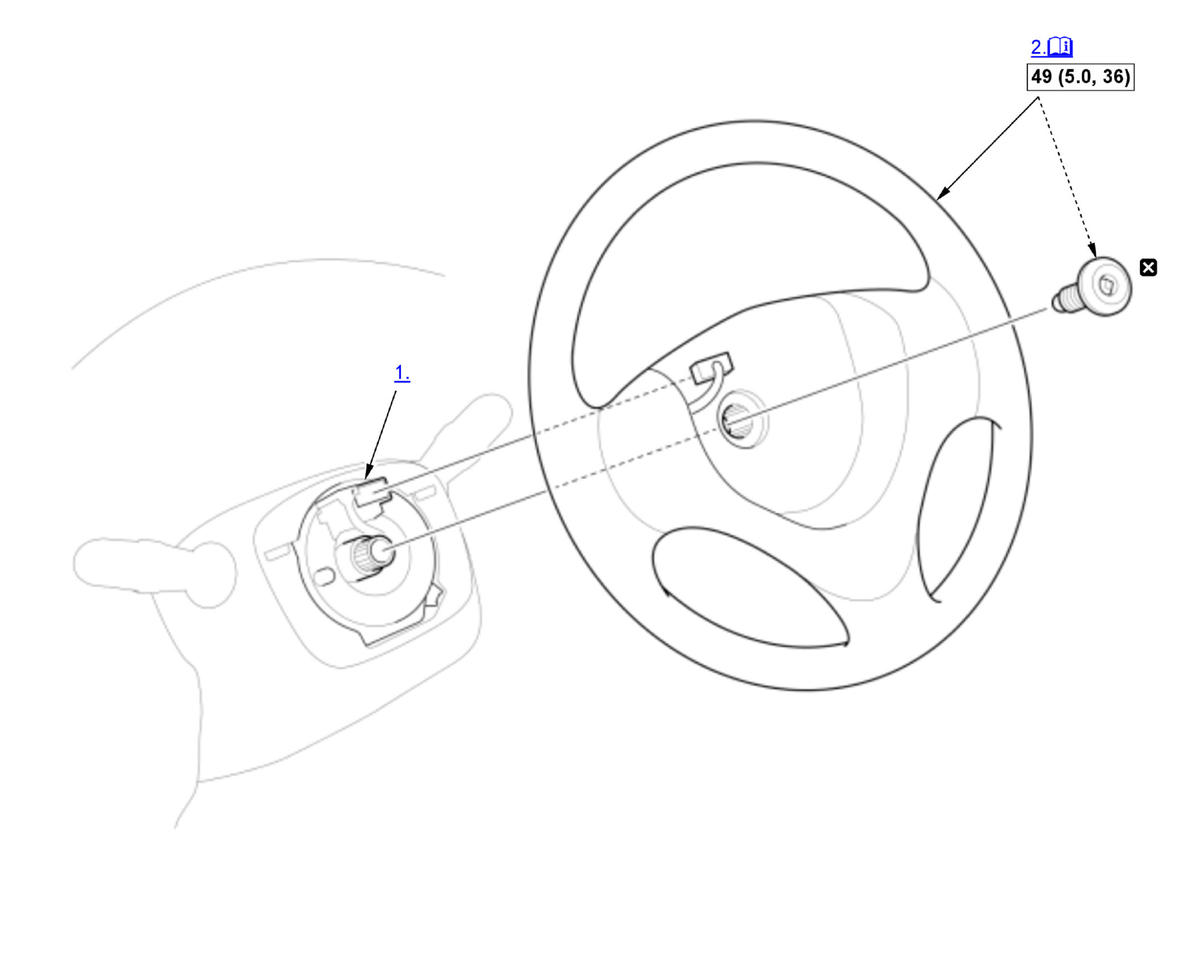

3. Install a new steering wheel bolt (A), and tighten it to the specified torque. NOTE: Install the steering wheel bolt and tighten it within 5 minutes using the specified tightening torque.
4. With heated steering wheel: Connect the connector (B).
5. Connect the connector (C).

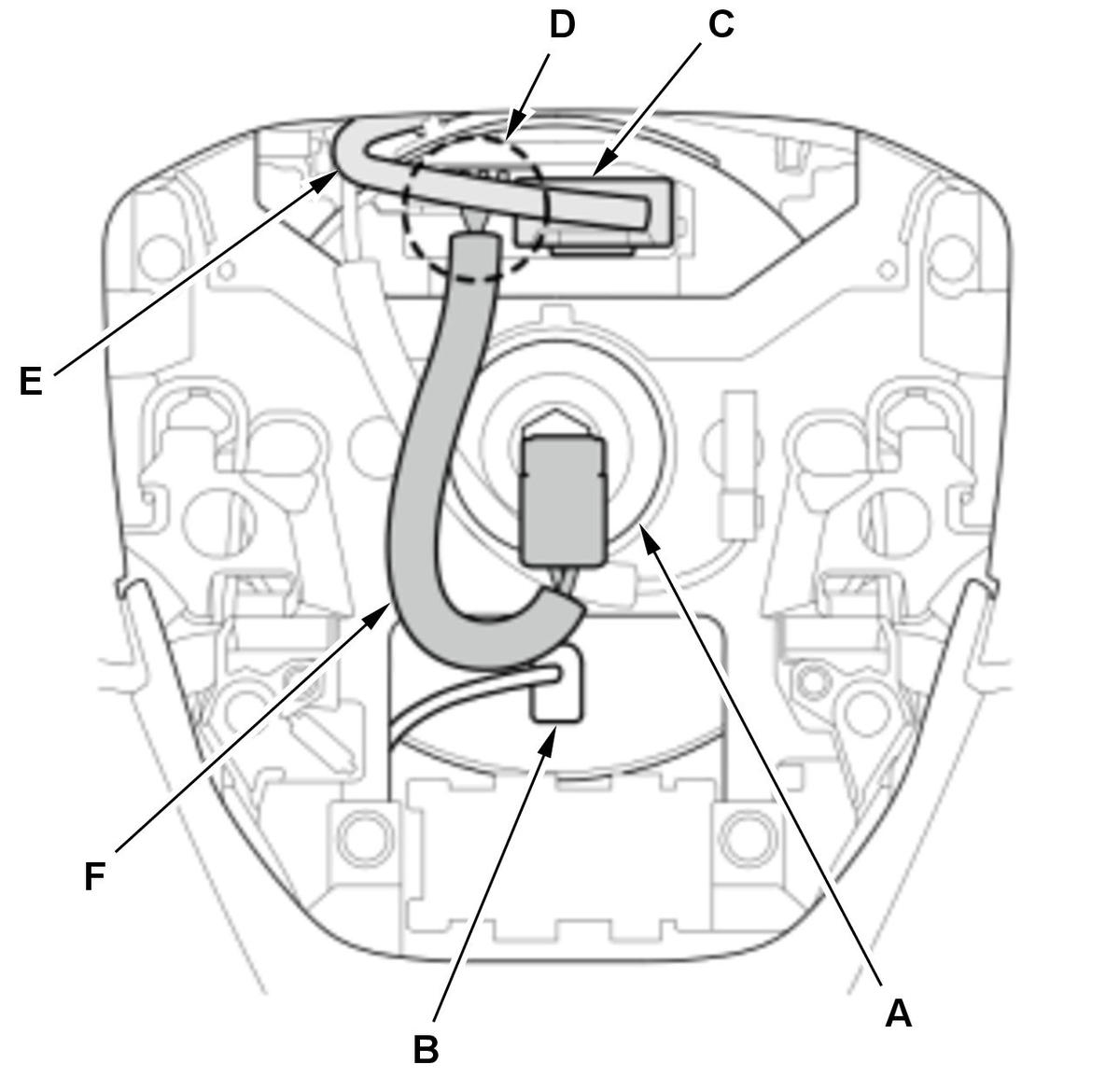

6. At point (D), make sure that the cable reel subharness (E) is routed above the SRS harness (F).
- Driver's Airbag - Install
- 12 Volt Battery Terminal - Connect
- Steering Wheel Spoke Angle - Check
1. Check the steering wheel spoke angle. 2. With the front wheels straight ahead, make sure the steering wheel is centered and the turning revolutions from center to full lock (left and right) is equal. If not, check the installation of the steering wheel and the engagement of the joint/pinion shaft splines.
- VSA Sensor Neutral Position - Memorize
