Steering Lock Removal and Installation: Installation

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

1. Steering Lock - Install

   Courtesy of HONDA, U.S.A., INC.

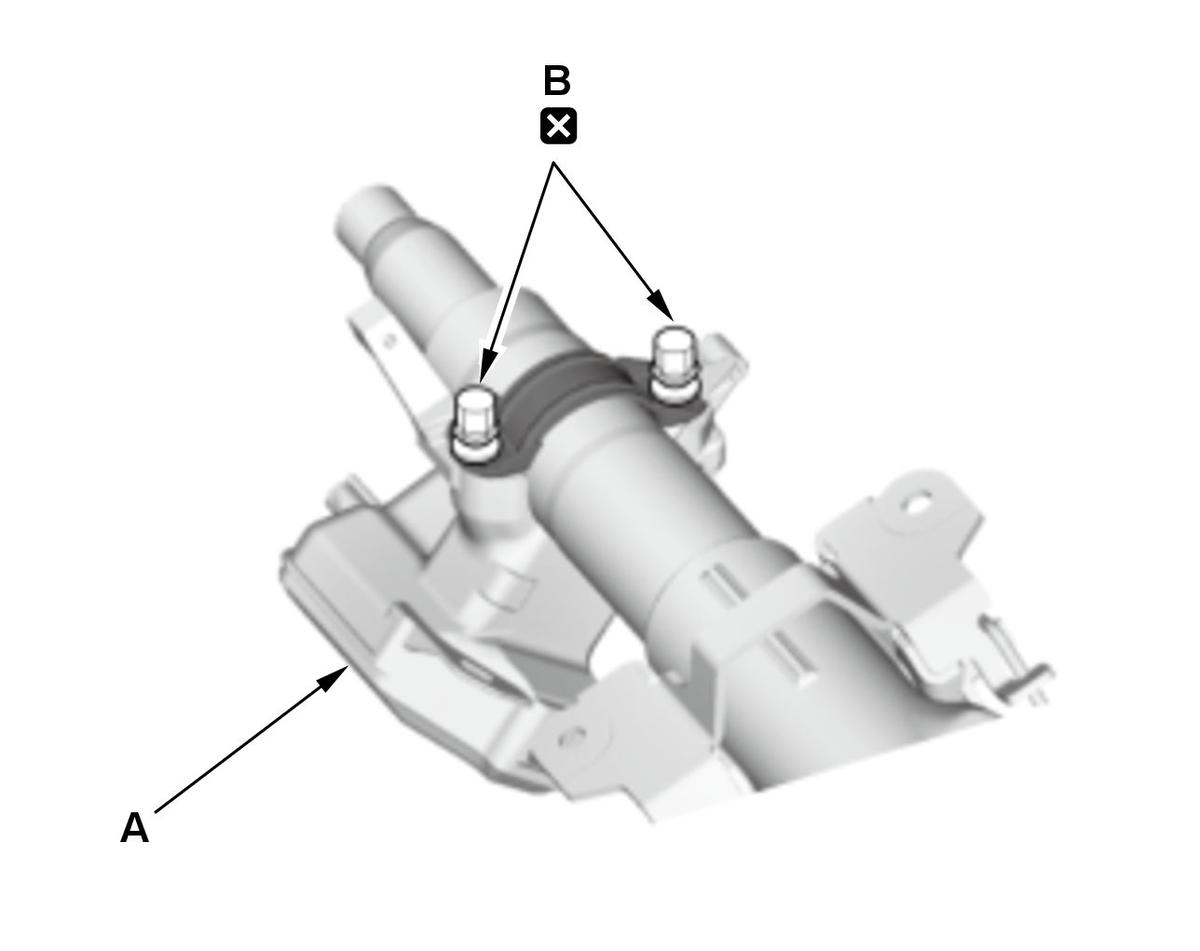

   1. Install the steering lock (A). 2. Loosely tighten new shear bolts (B). NOTE:  The shear bolts have left-hand threads. 3. Without keyless access system: Insert the ignition key, and check for proper operation of the steering wheel lock and that the ignition key turns freely.

   Courtesy of HONDA, U.S.A., INC.

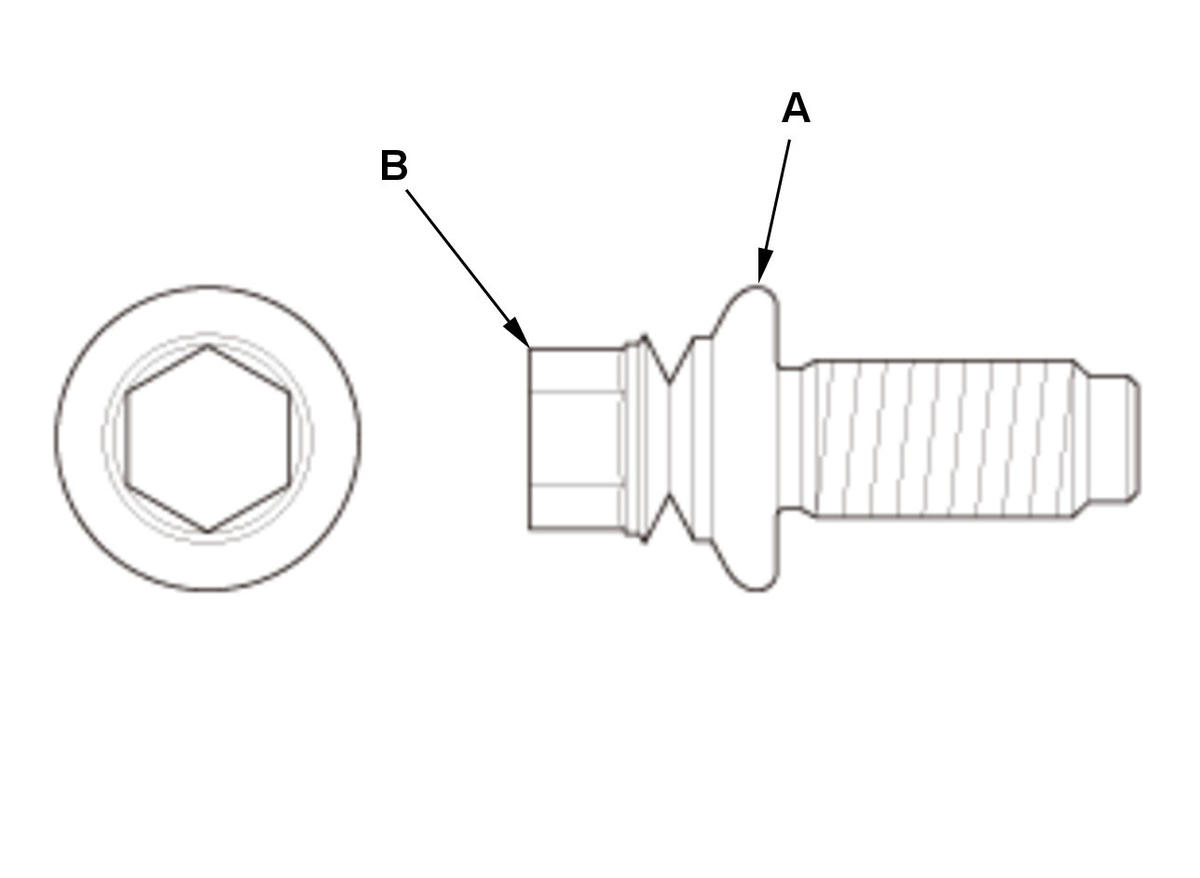

   4. Tighten the shear bolts (A) until the hex heads (B) twist off. NOTE:  The shear bolts have left-hand threads.

2. Steering Column - Install
3. Immobilizer-Keyless Control Unit (Without Keyless Access System) - Install
4. Keyless Access System - Register (With Keyless Access System)
