Steering Column Removal and Installation: Removal

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures before doing repairs or service.

NOTE:  Do not release the lock lever until the steering column is installed. If the lock lever is released before installation, adjust the steering column after installation.

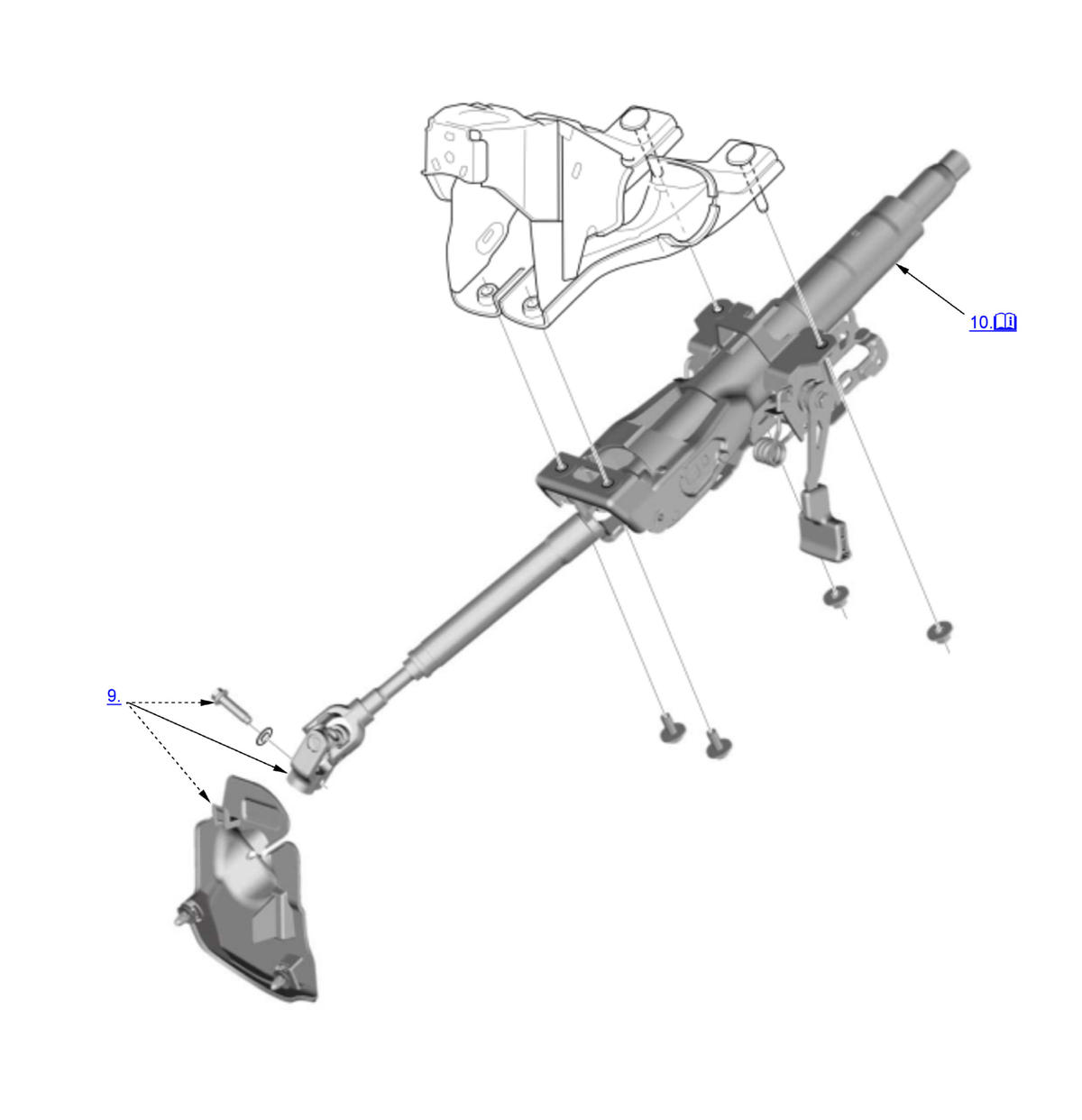

1

Courtesy of HONDA, U.S.A., INC.

1. Steering Column Tilt and Telescopic Position - Set

   1. Set the steering column to the highest tilt position, and to the longest telescopic position.

2. 12 Volt Battery Terminal - Disconnect

   NOTE:  Wait at least 3 minutes to start the following work.

3. Driver's Airbag - Remove
4. Steering Wheel - Remove
5. Driver's Dashboard Undercover - Remove
6. Driver's Dashboard Lower Cover - Remove
7. Column Cover - Remove
8. Combination Switch - Remove

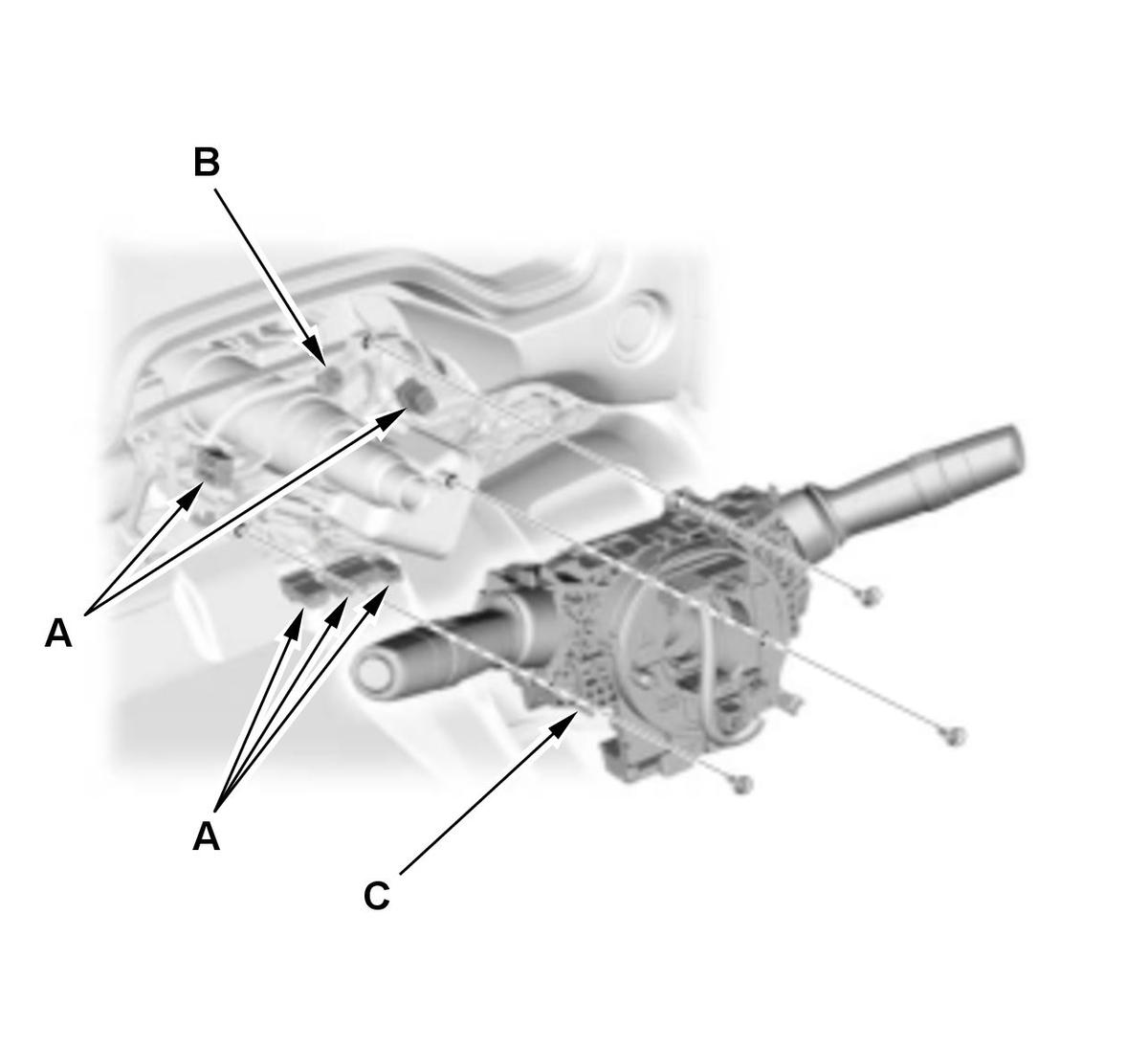

   Courtesy of HONDA, U.S.A., INC.

   1. Disconnect the connectors (A). 2. Remove the harness clip (B). 3. Remove the combination switch body assembly (C).

9. Steering Joint - Disconnect
10. Steering Column - Remove

    NOTE:  Be careful not to damage the brake pedal position switch.
