Removal and Installation

NOTE:

• How to read the torque specifications .
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

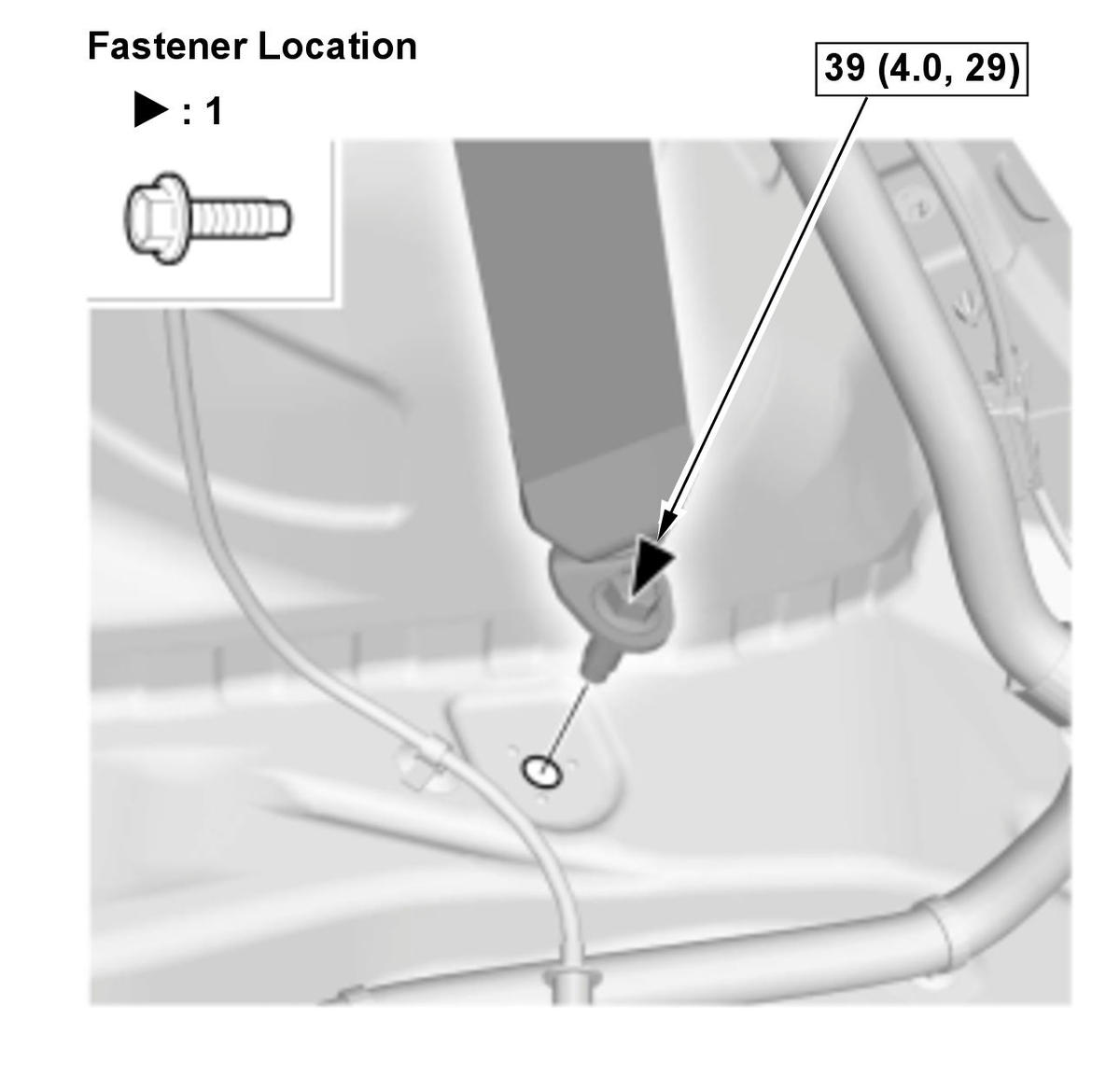

1. Rear Seat Belt Lower Anchor Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

2. Quarter Pillar Trim - Remove

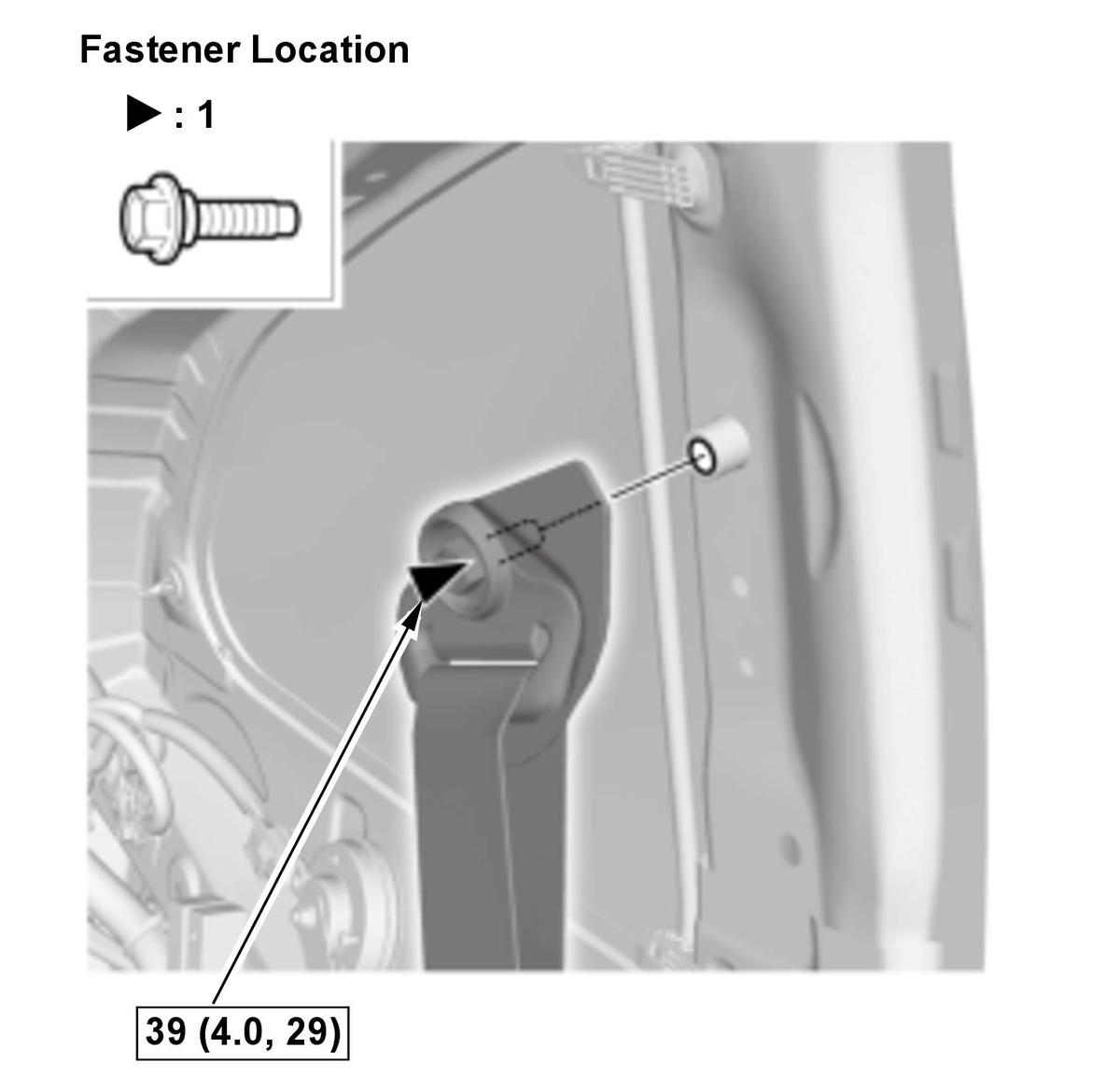

3. Rear Seat Belt Upper Anchor Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

4. Rear Side Trim Panel - Remove

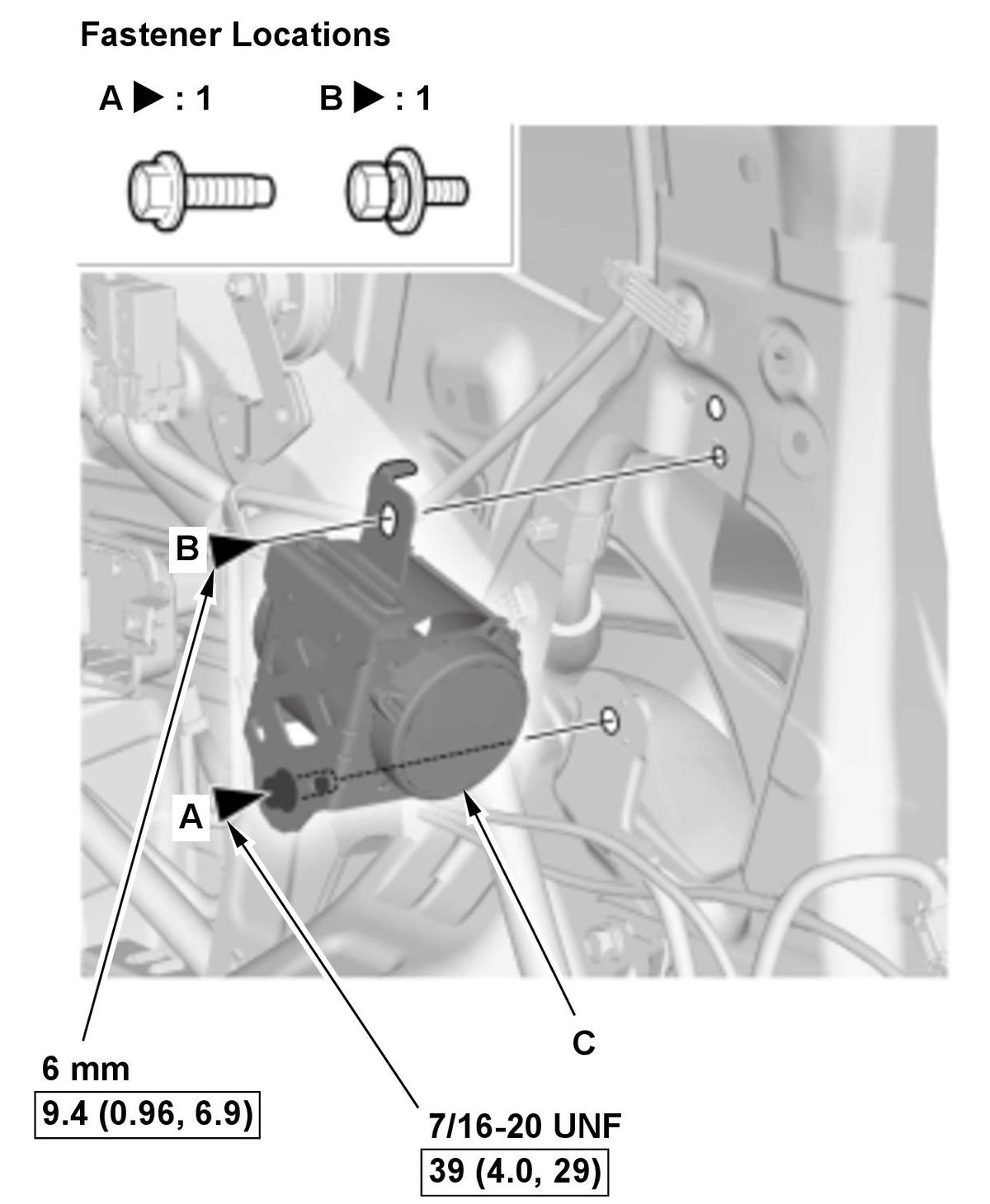

5. Rear Seat Belt Assembly - Remove

   Courtesy of HONDA, U.S.A., INC.

   1. Remove the bolts (A, B). 2. Remove the rear seat belt assembly (C).

6. All Removed Parts - Install

   Courtesy of HONDA, U.S.A., INC.

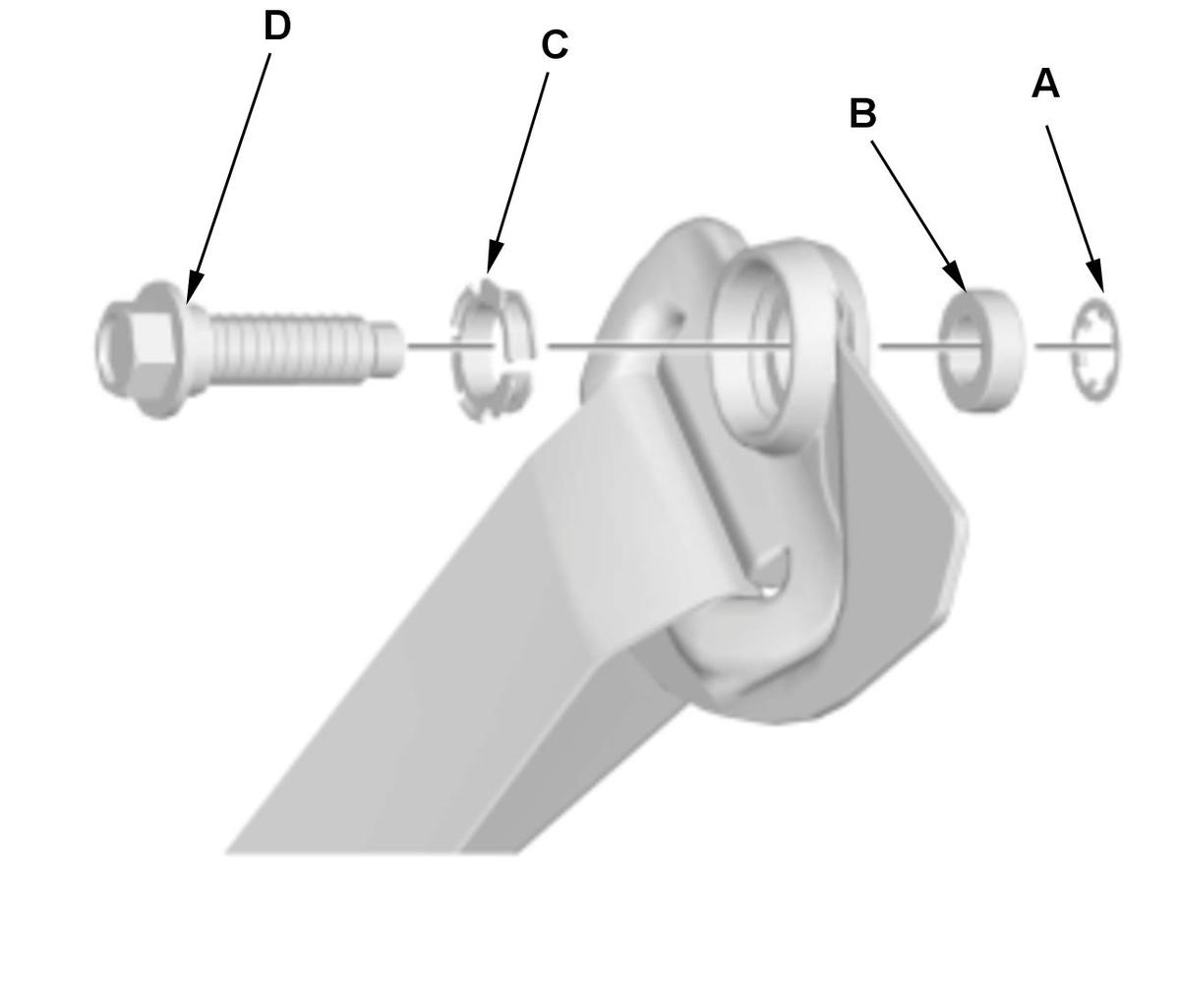

   1. Install the parts in the reverse order of removal. NOTE:  Assemble the toothed lock washer (A), the collar (B), and the bushing (C) on the upper anchor bolt (D) as shown.
