Removal and Installation

NOTE:  SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1

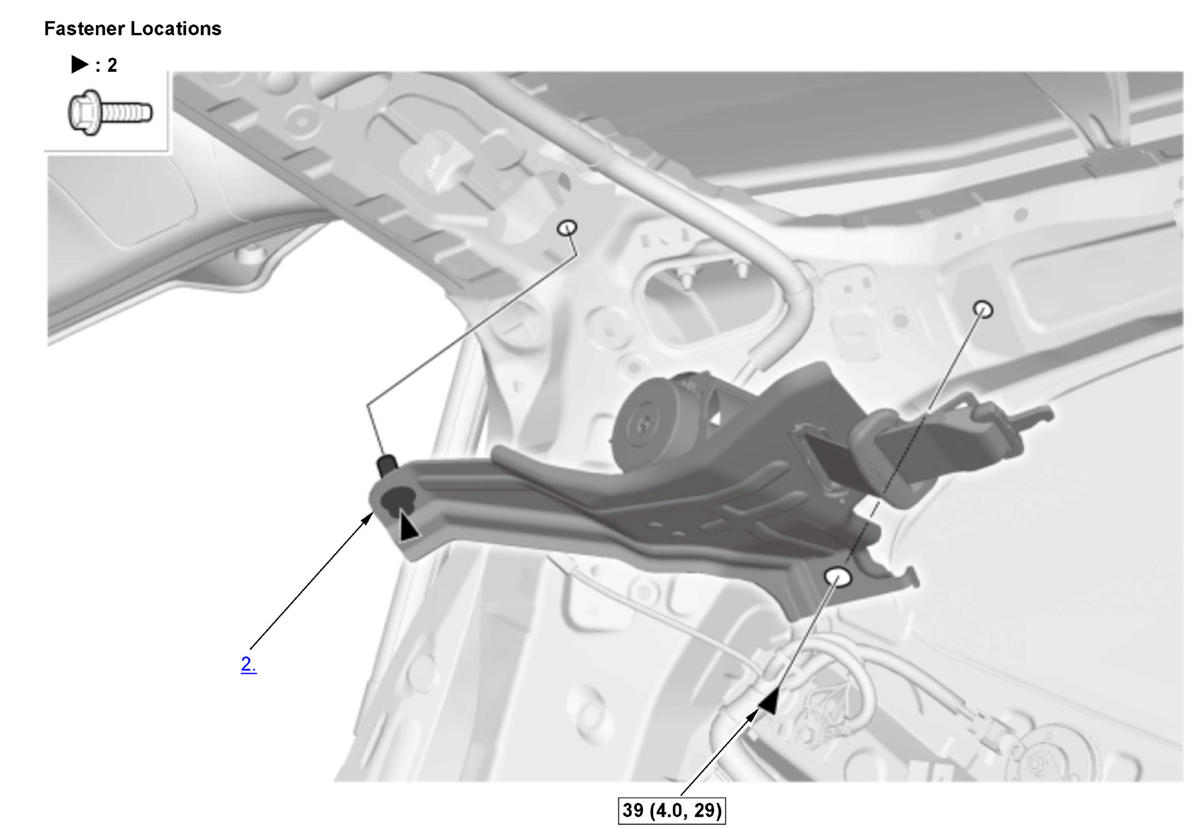

Fig 1: Rear Seat Belt Center Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Torque: N.m (kgf.m, lbf.ft)

1. Headliner - Remove
2. Rear Center Seat Belt - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
