Removal and Installation

NOTE:

• How to read the torque specifications .
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

   NOTE:  Wait at least 3 minutes before starting work.

2. Front Seat Belt Upper Anchor Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

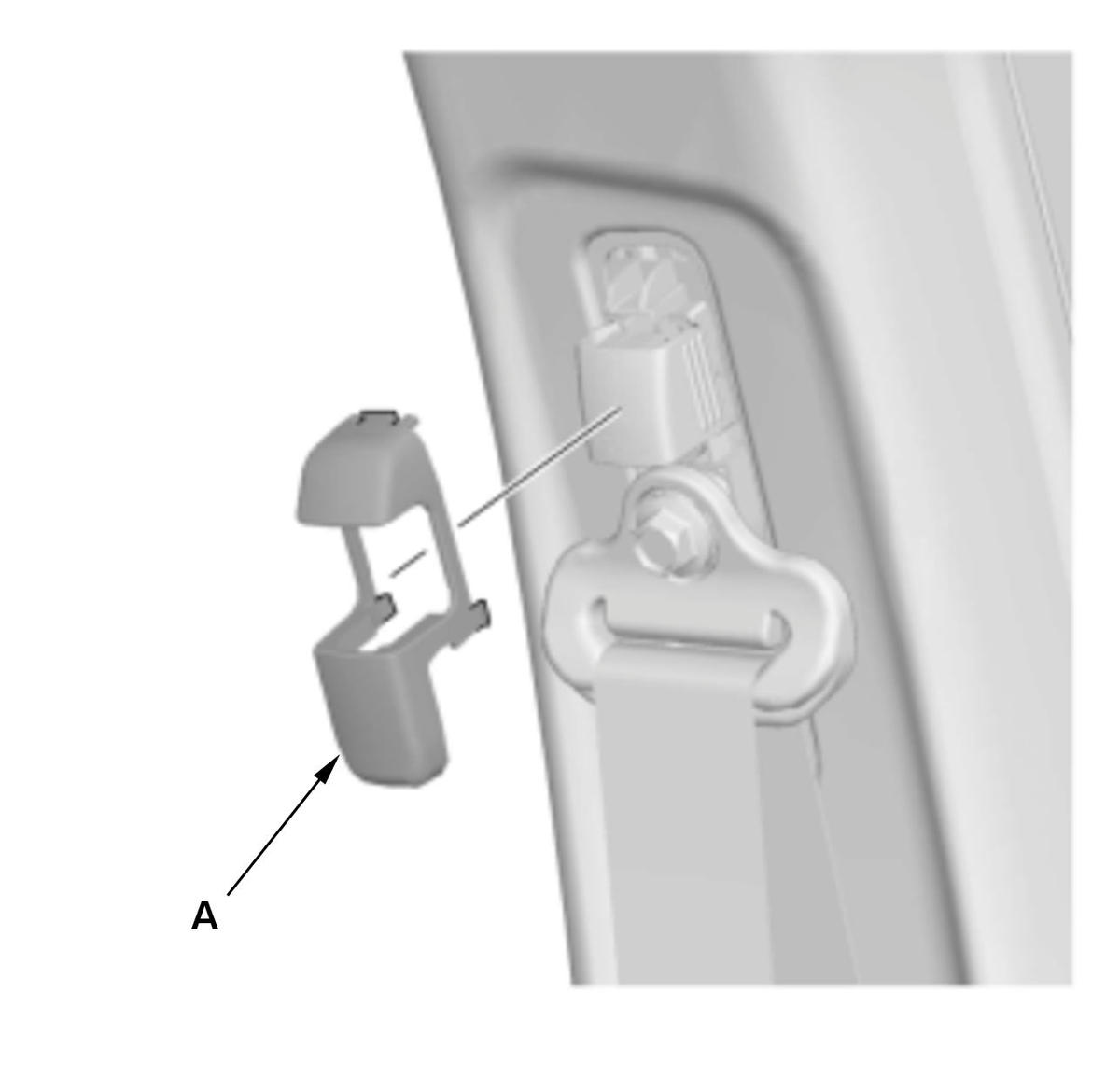

   1. Remove the front seat belt upper anchor bolt cover (A).

   Courtesy of HONDA, U.S.A., INC.

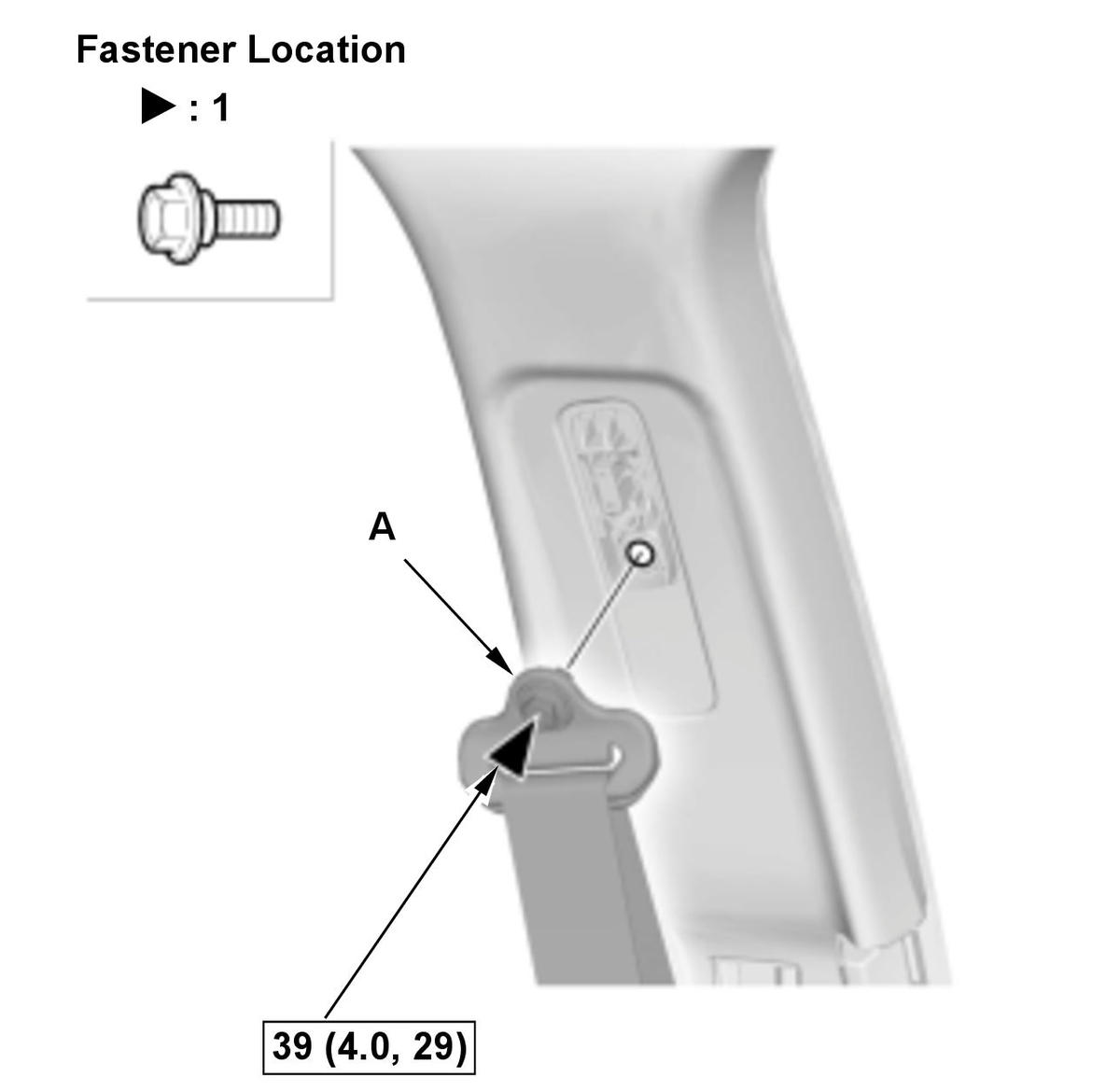

   2. Remove the front seat belt upper anchor (A).

3. B-pillar Lower Trim - Remove
4. Outer Lap Tensioner Bolt - Remove

   Courtesy of HONDA, U.S.A., INC.

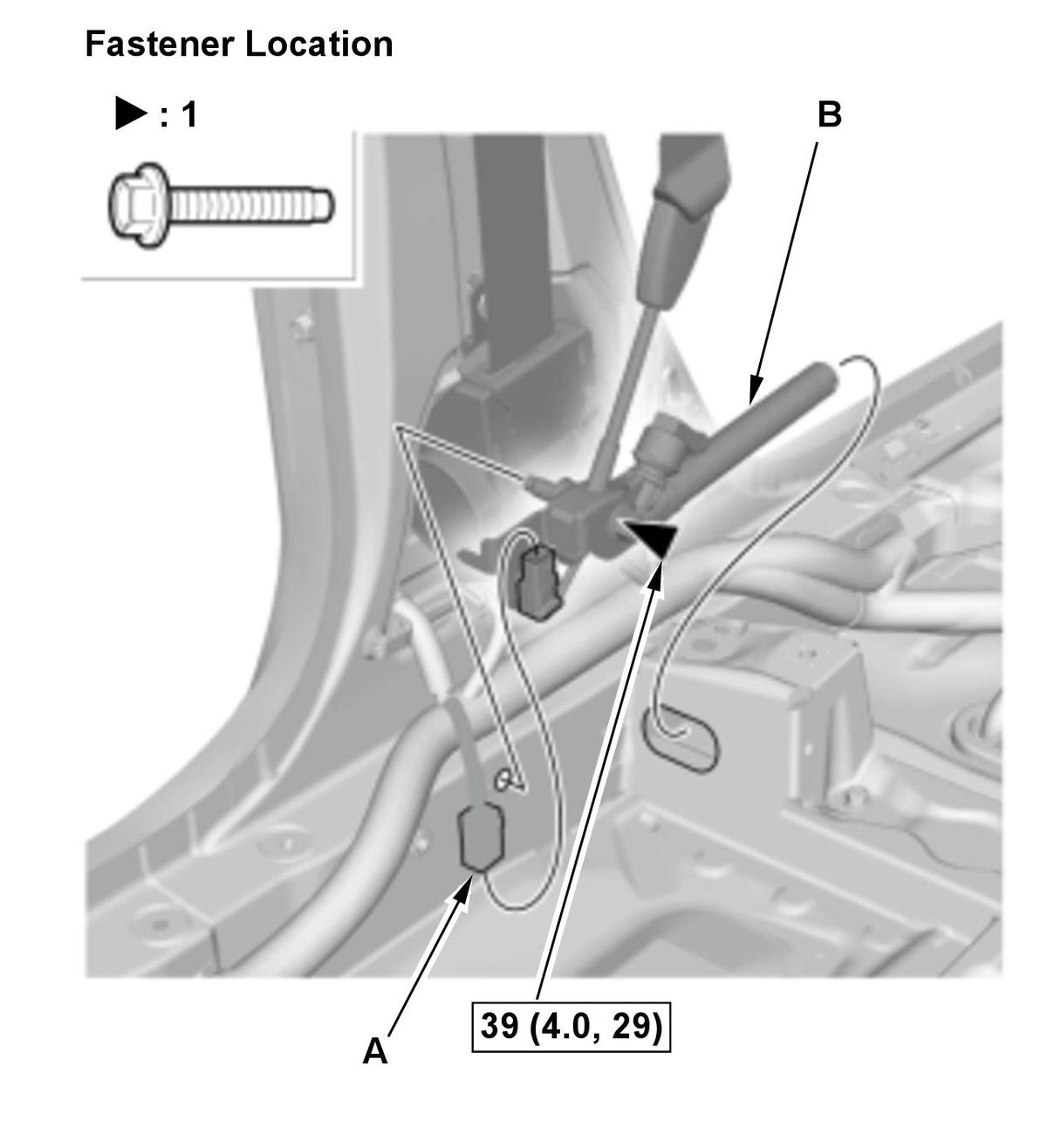

   1. Disconnect the connector (A), and then remove the outer lap pretensioner (B).

5. Front Seat Belt Assembly- Remove

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

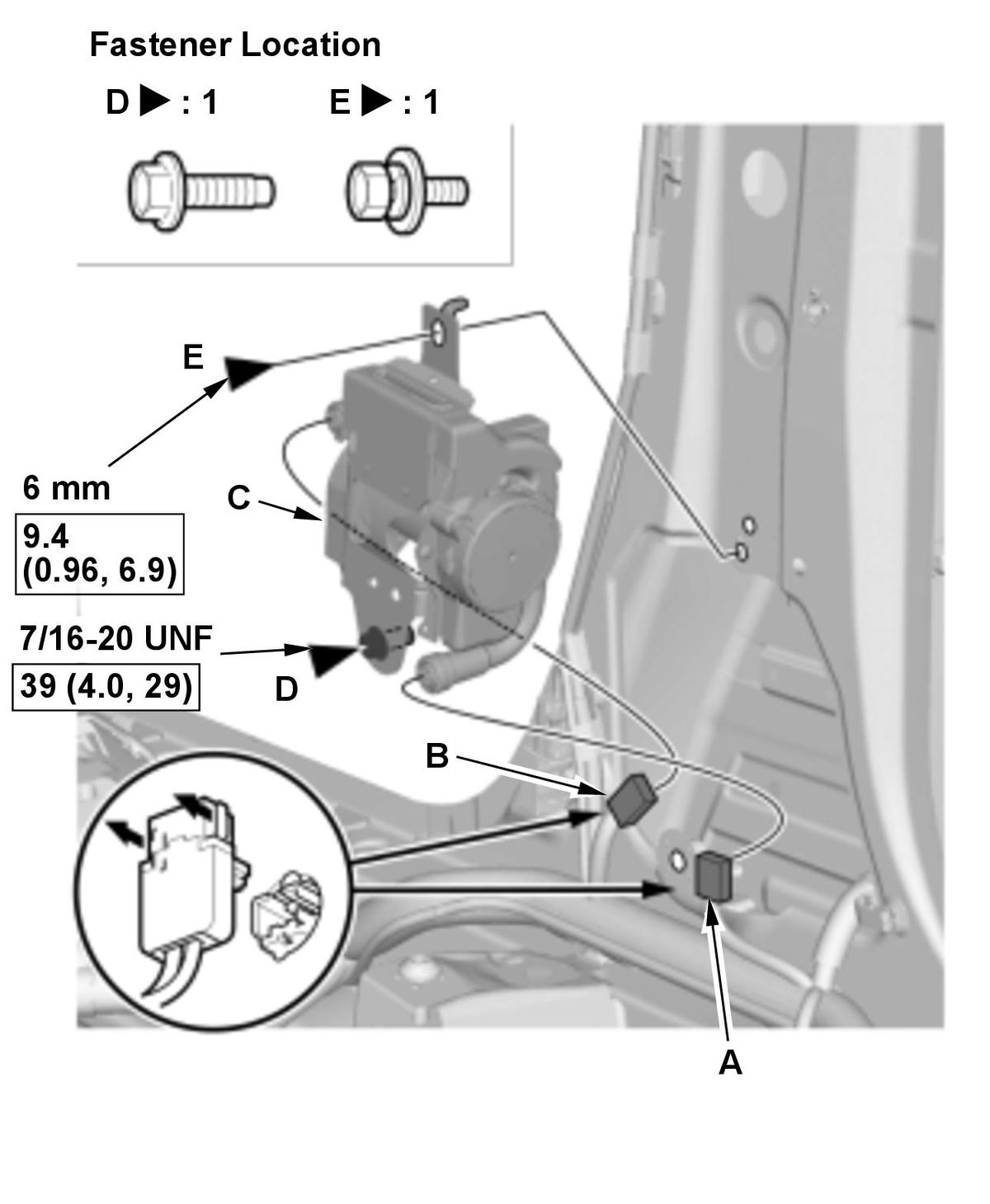

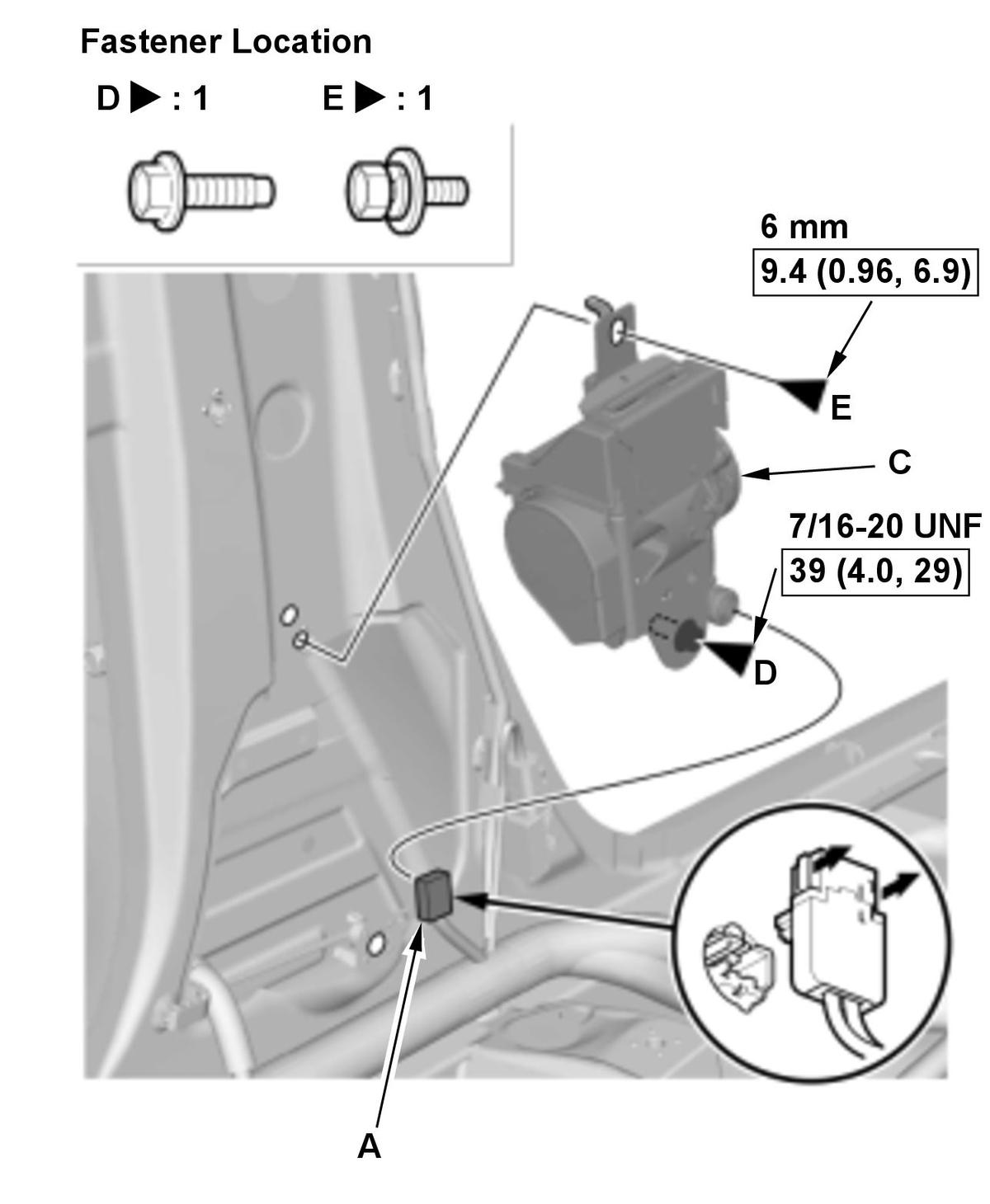

   1. Disconnect the connector (A). 2. For some models: Disconnect the connector (B). 3. Remove the lower anchor bolt, and then remove the front seat belt assembly (C).

6. All Removed Parts - Install

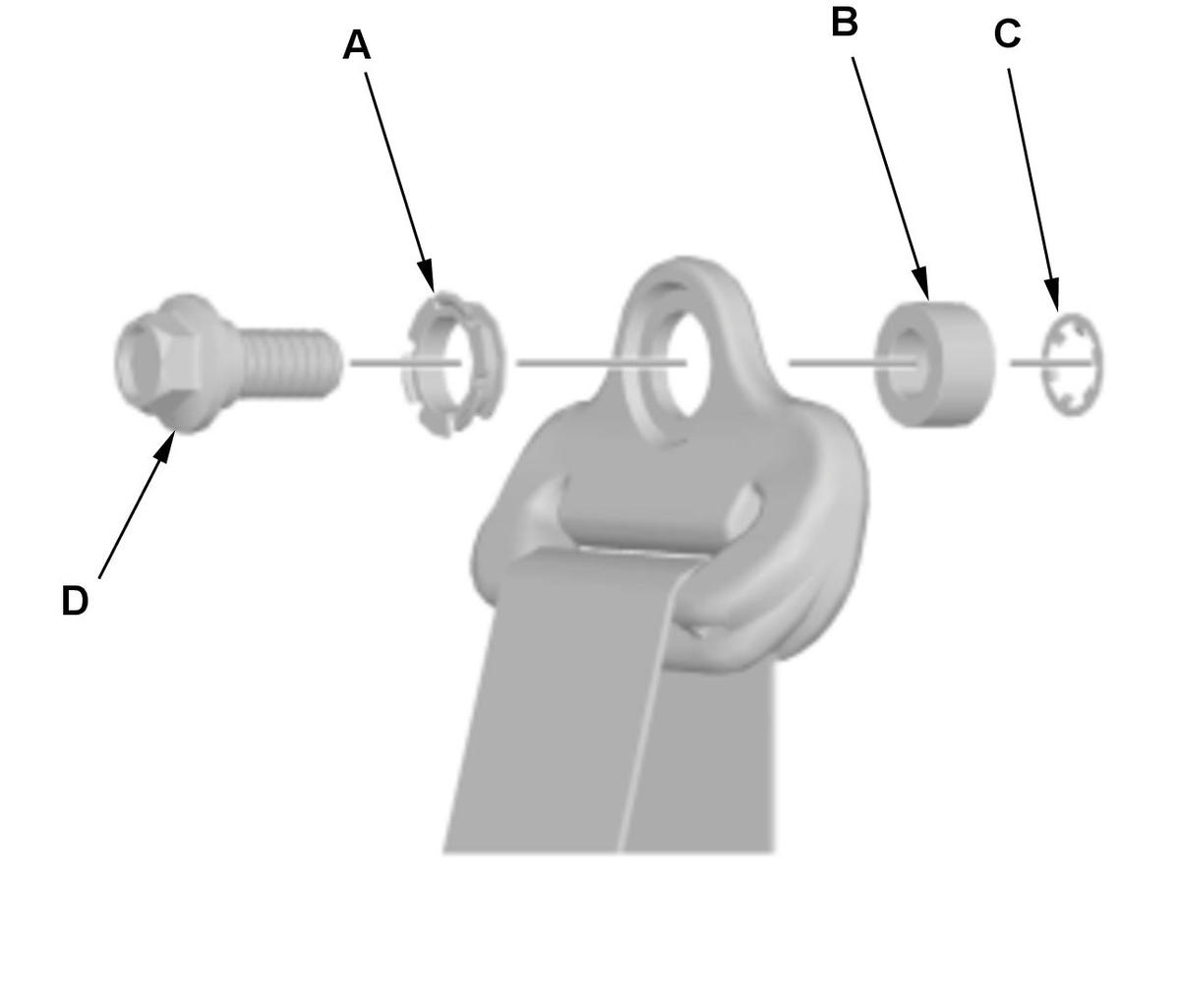

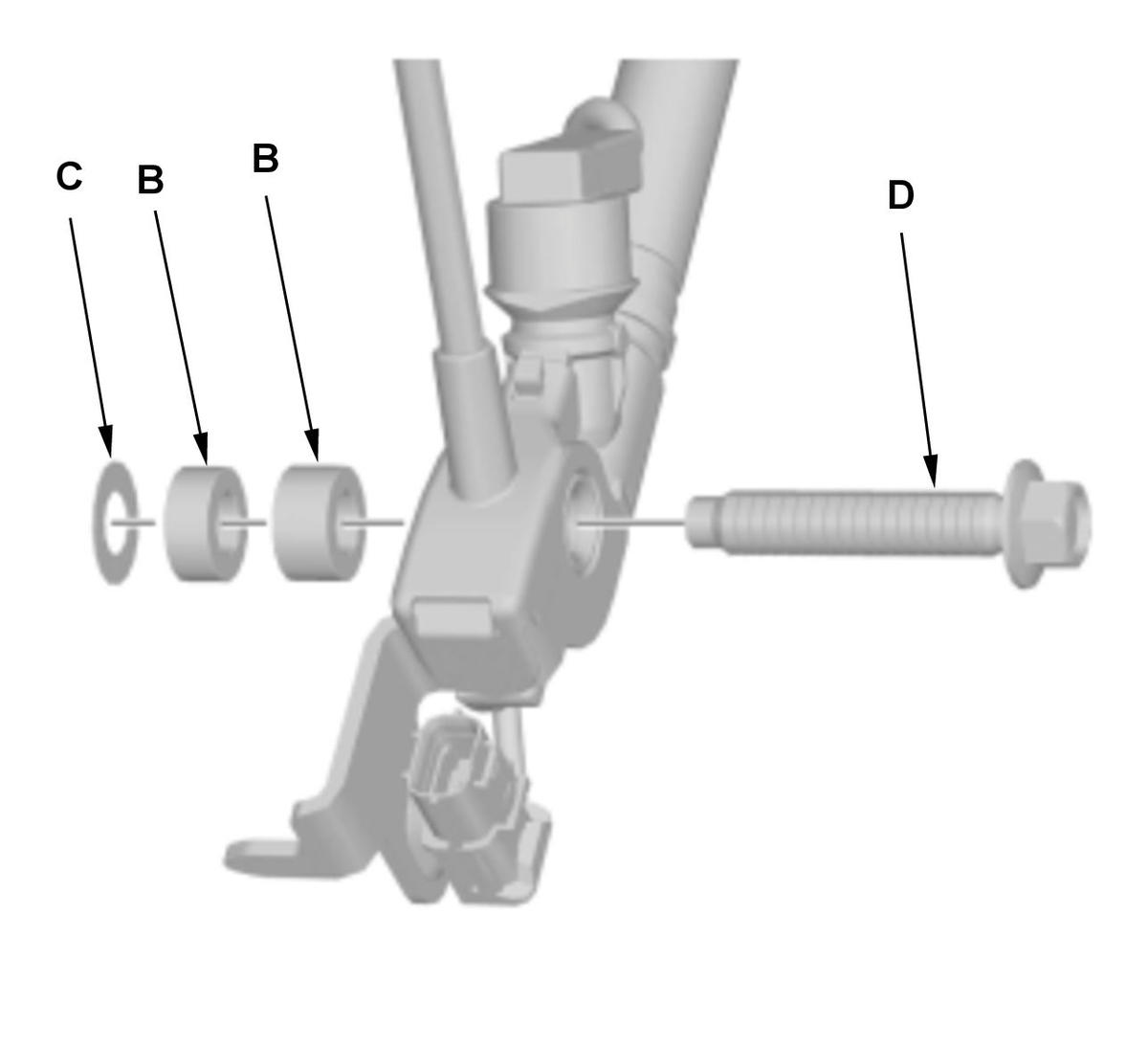

   Upper Anchor Bolt Installation  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Seat Belt Outer Lap Pretensioner Bolt Installation  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Install the parts reverse order of removal. NOTE:  Assemble the bushing (A), the collars (B), and the toothed lock washer (C) on the bolt (D) as shown. Apply medium strength type liquid thread lock to the upper anchor bolt before reinstallation.
