Removal and Installation

NOTE:

• How to read the torque specifications .
• SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. Front Seat - Remove
2. Front Seat Front Cushion Cover - Remove (Driver's Power Seat)
3. Front Seat Belt Buckle - Remove

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

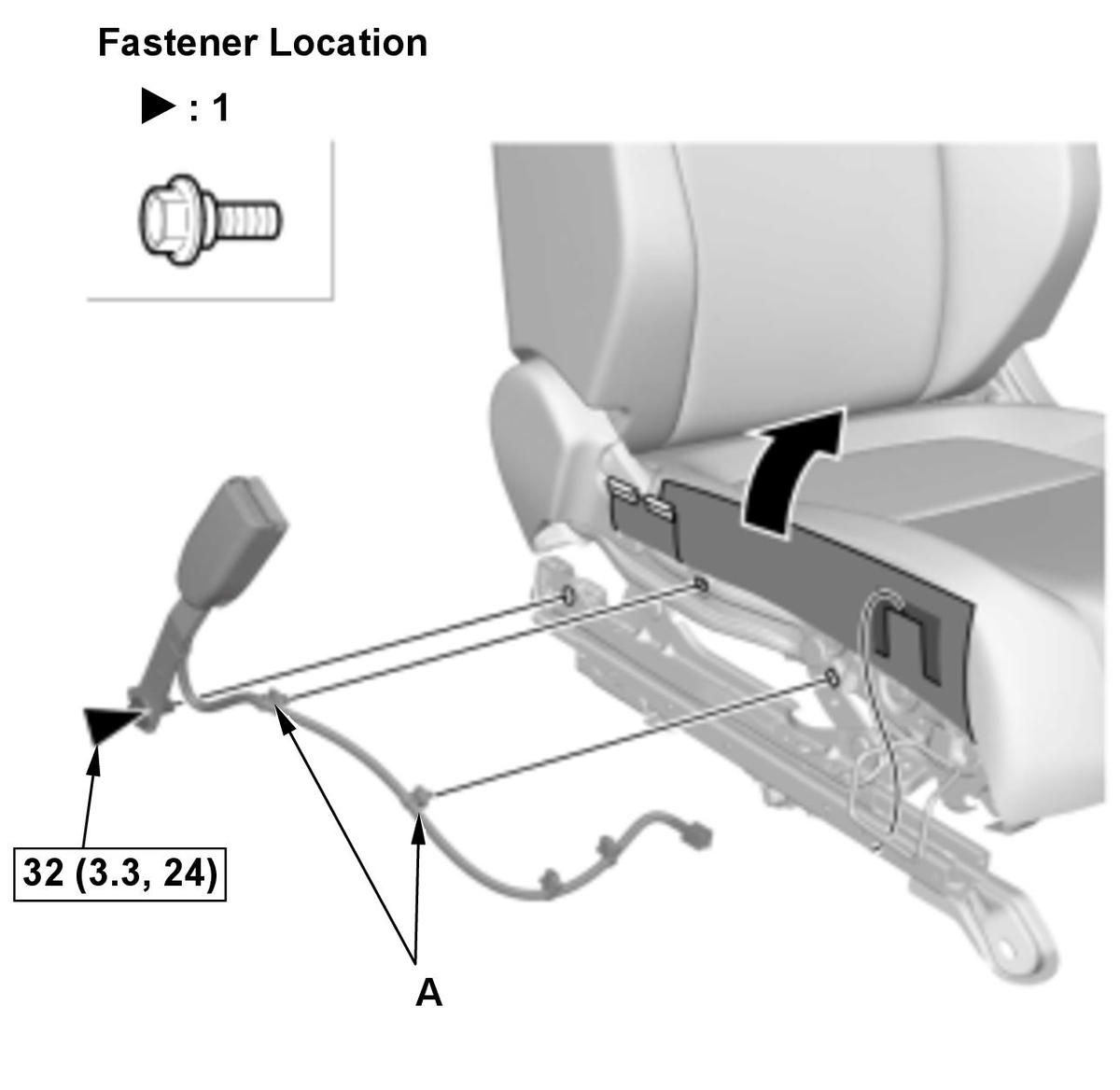

   Driver's Power Seat

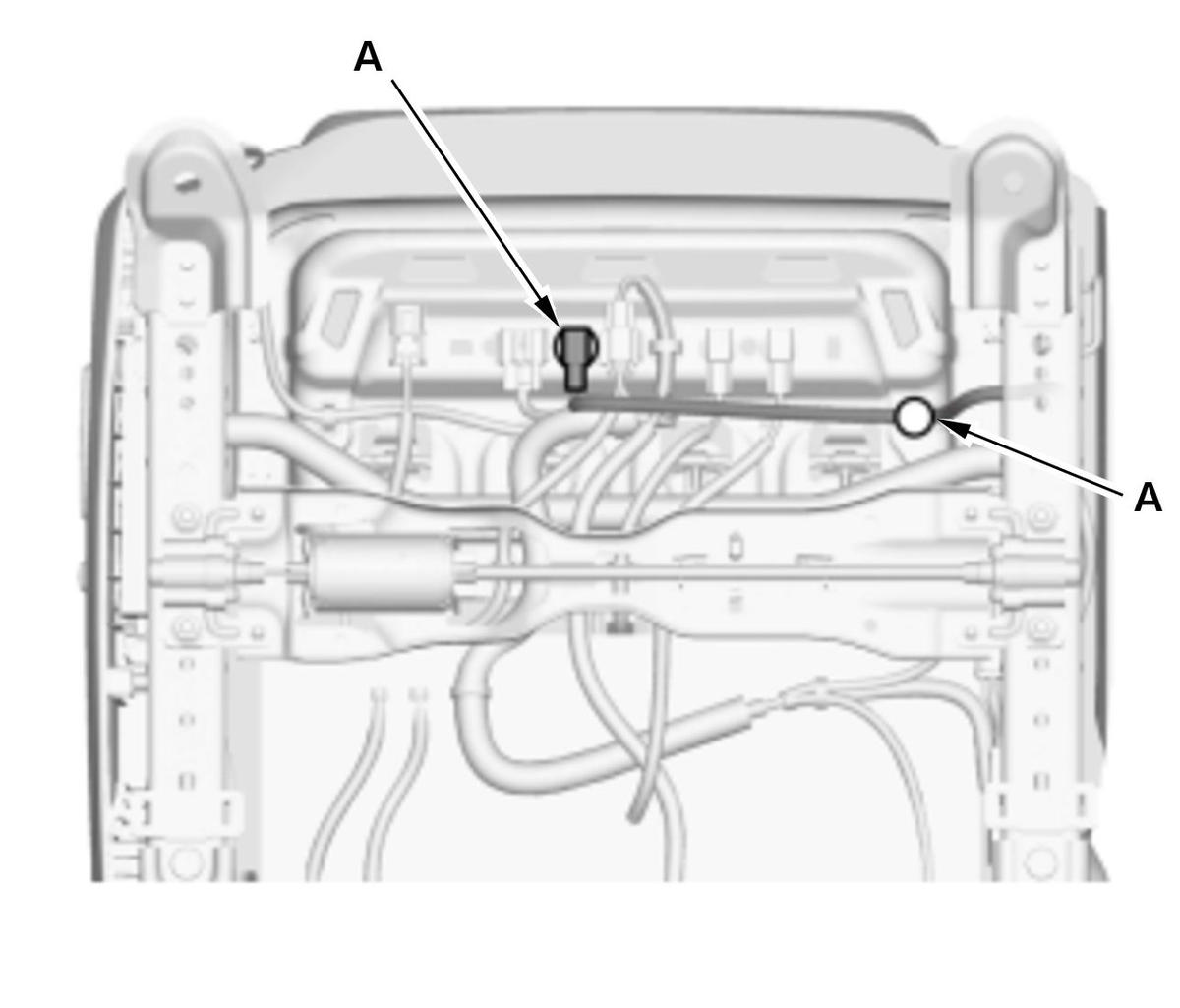

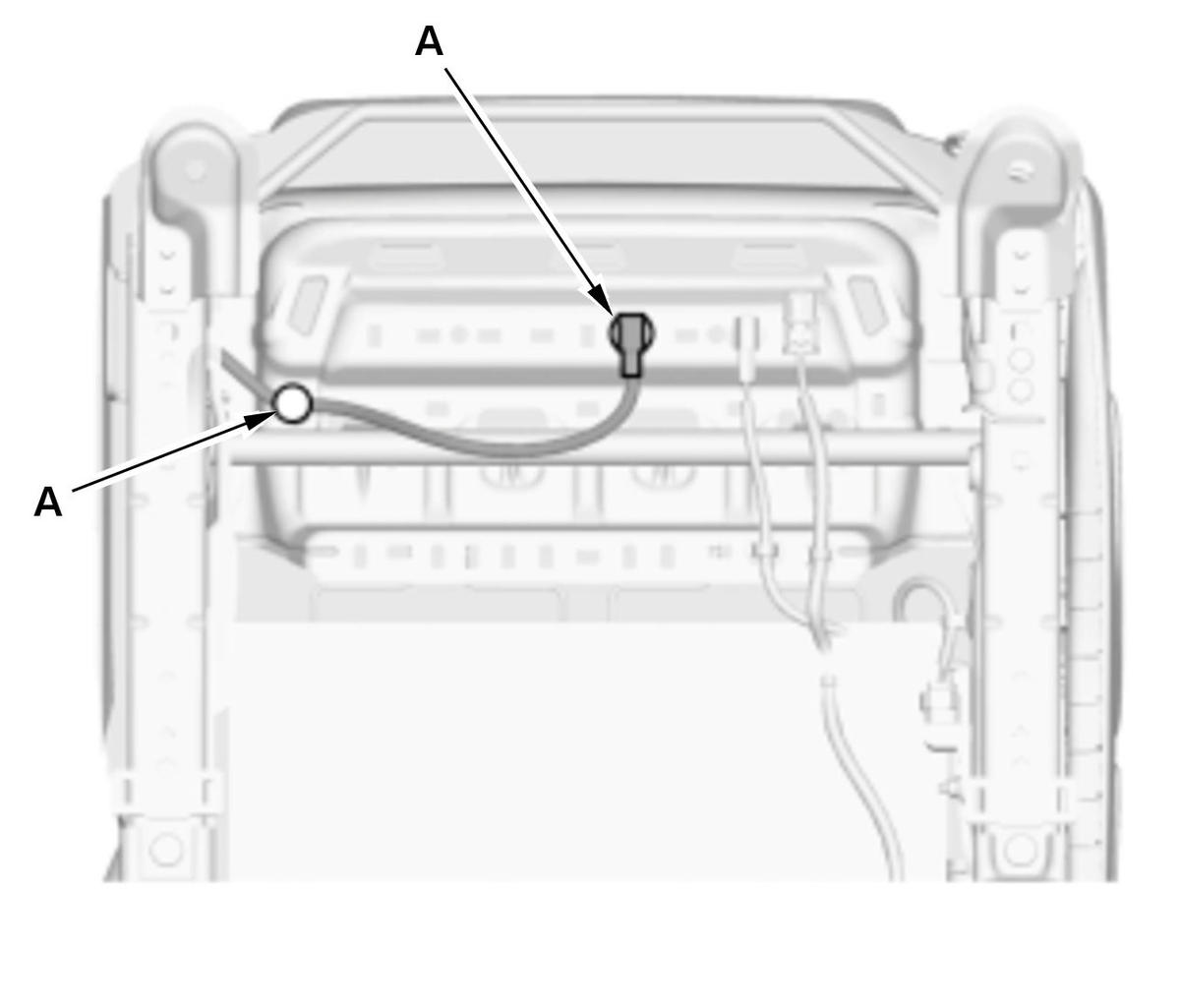

   1. Release the clips (A) and the remove the bolt.

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

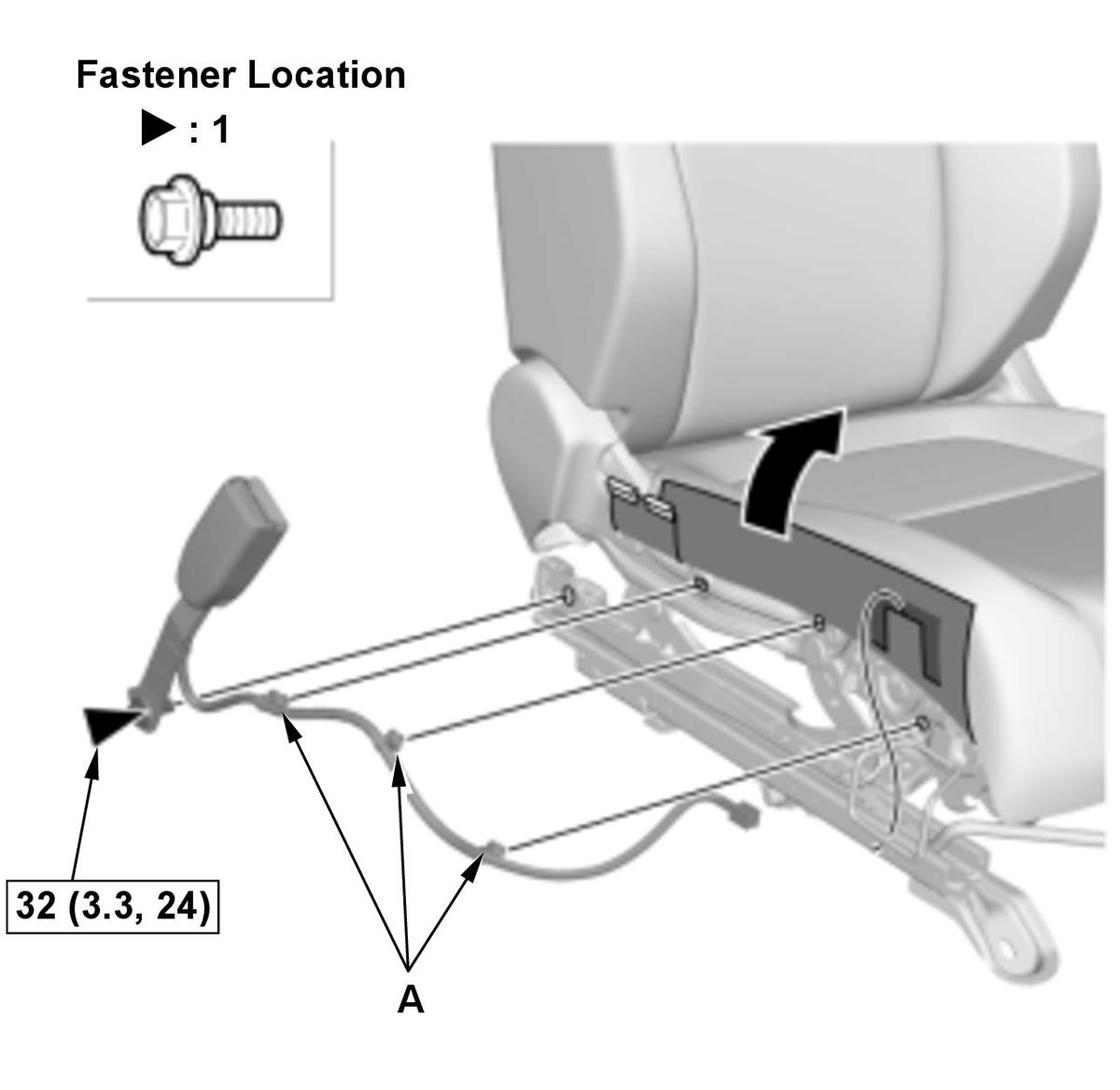

   Driver's Manual Seat

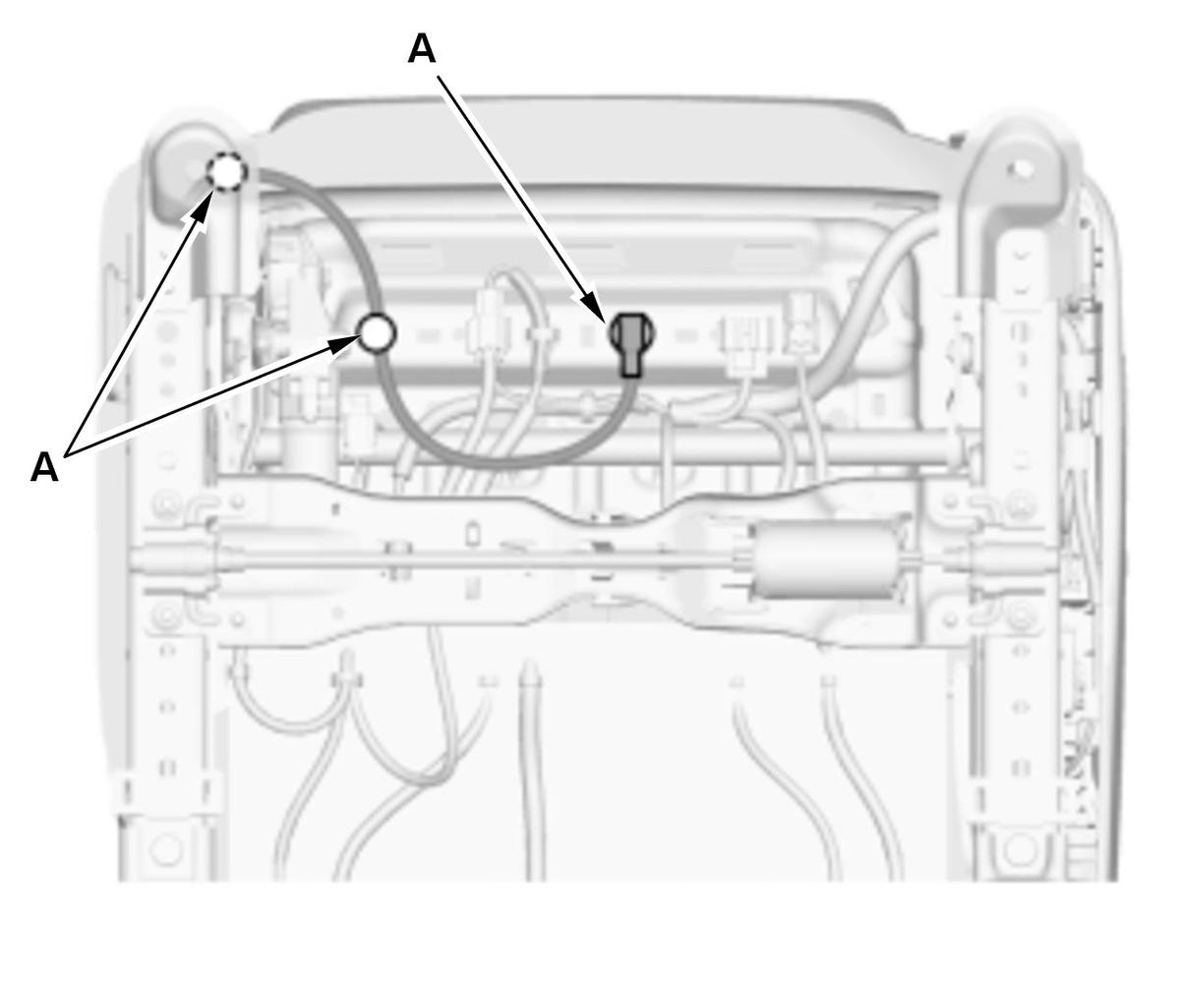

   1. Release the clips (A) and the remove the bolt.

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

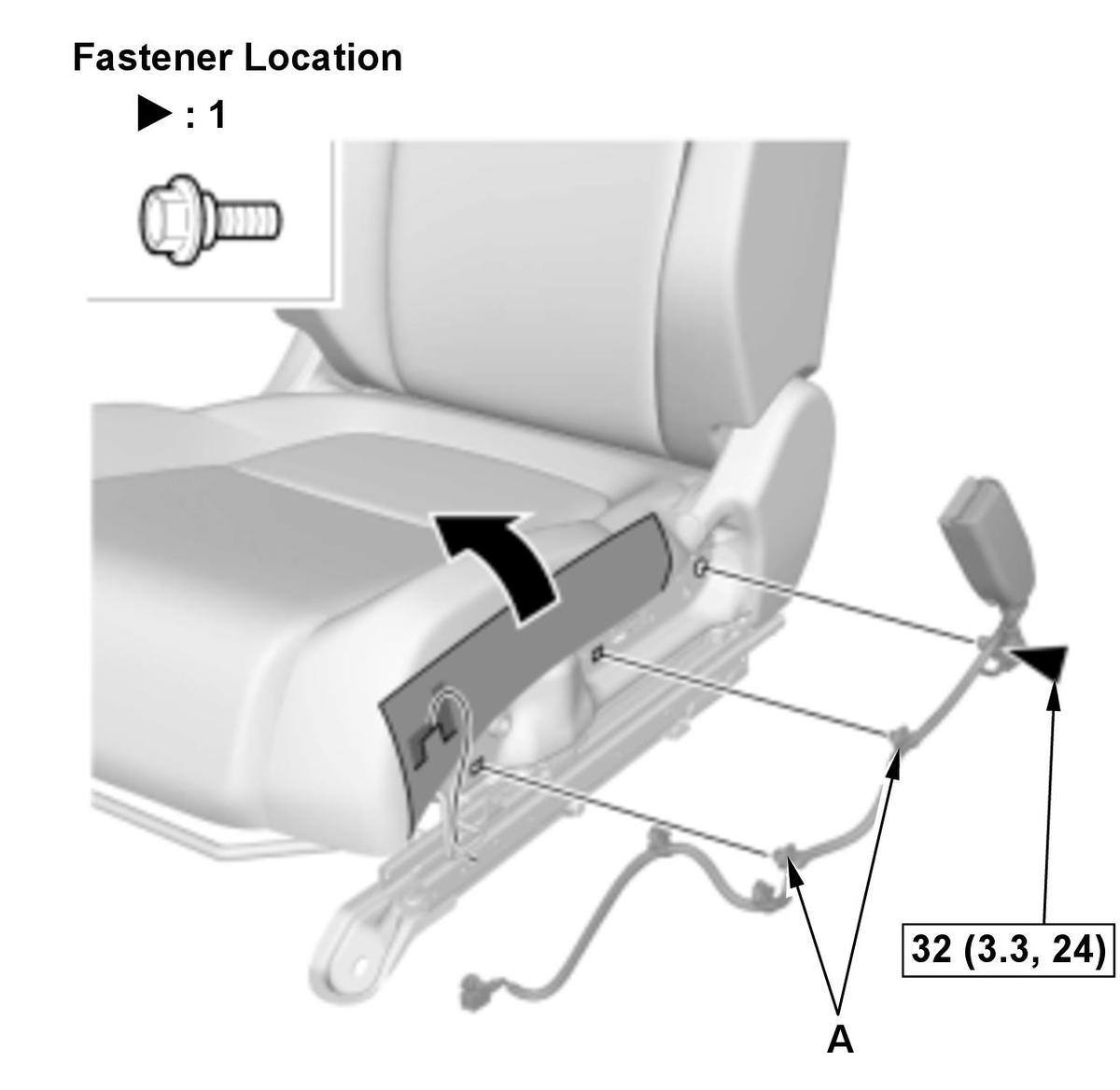

   Passenger's Power Seat

   1. Release the clips (A) and the remove the bolt.

   Courtesy of HONDA, U.S.A., INC.

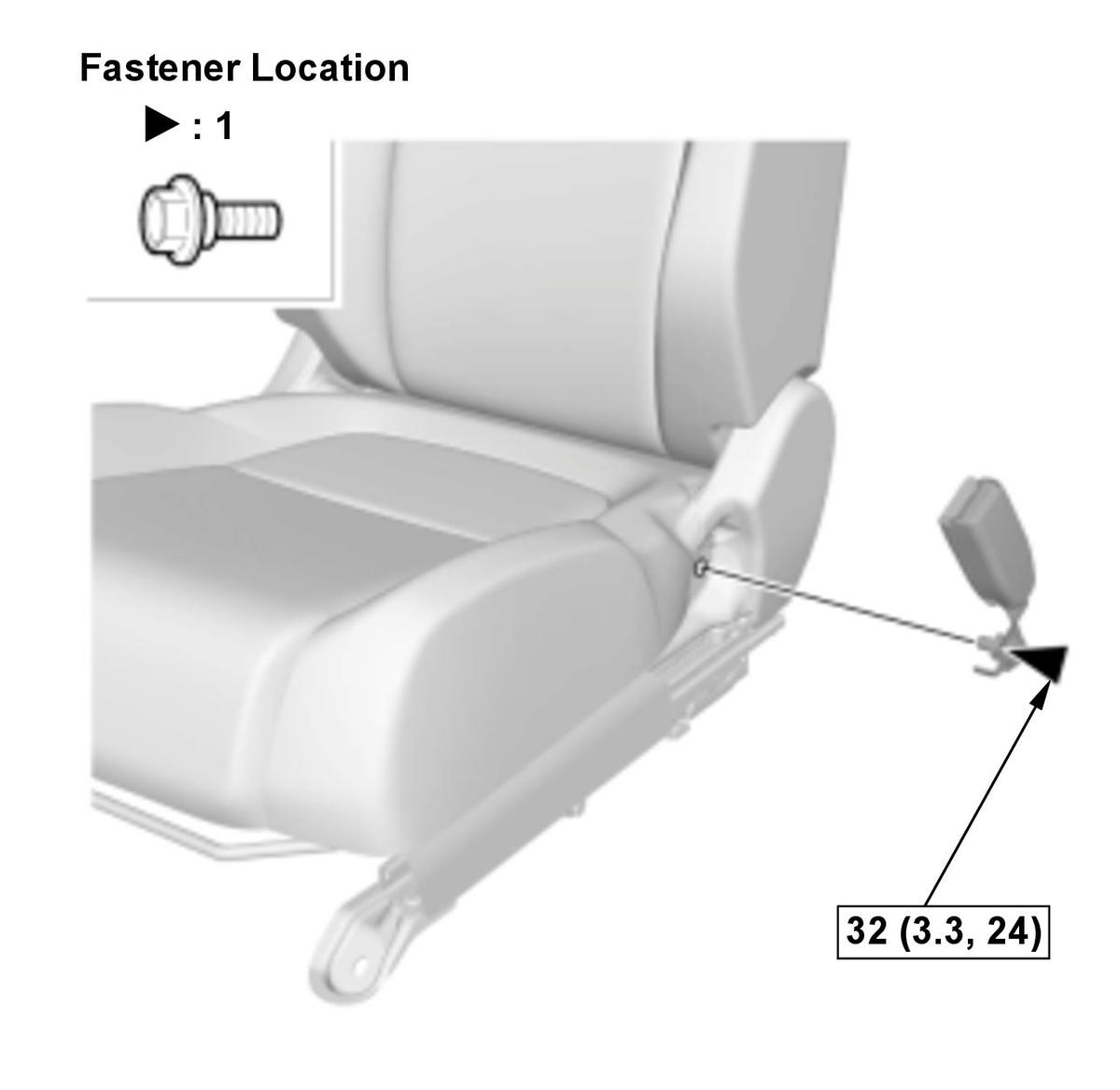

   Passenger's Seat Without Seat Belt Reminder

4. All Removed Parts - Install

   Power Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Manual Seat  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

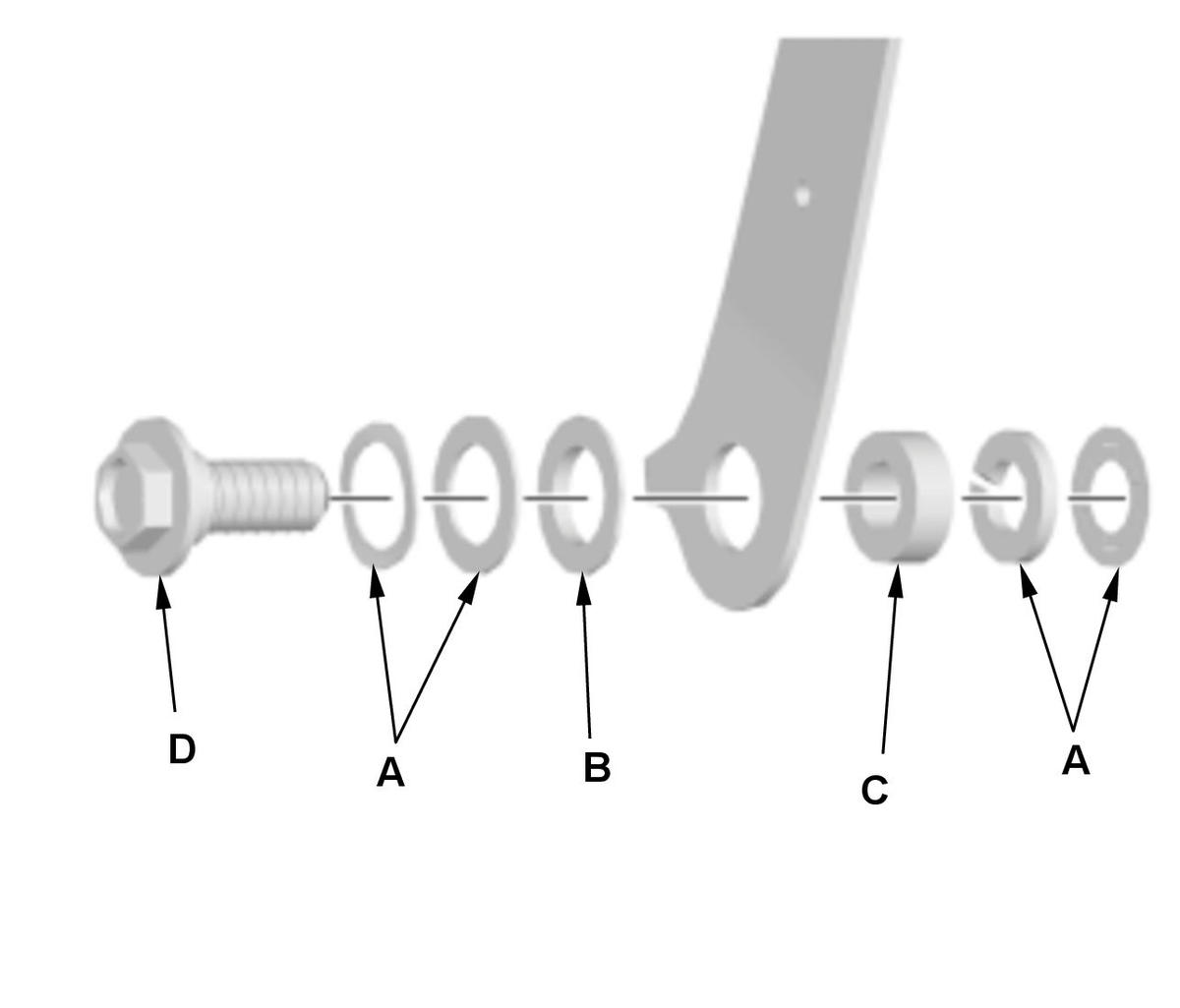

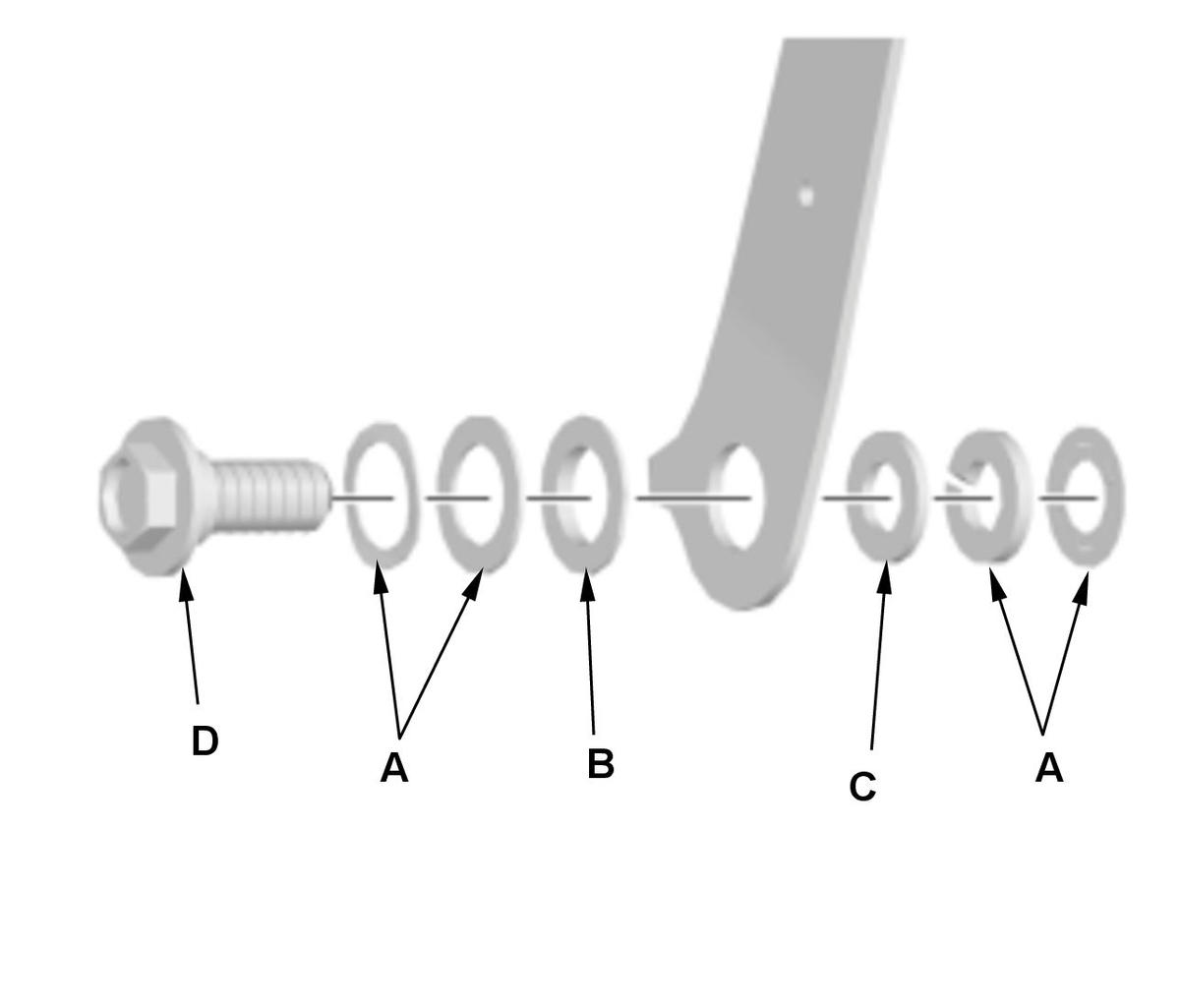

   1. Install the parts in the reverse order of removal. NOTE:  Assemble the washers (A), the bearing (B) and the collar (C) on the anchor bolt (D) as shown.
