Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• How to read the torque specifications .
• If replacing the side airbag after deployment, refer to Component Replacement/Inspection After Deployment for a complete list of other parts that must also be replaced.
• Before the front power seat is removed, slide the front power seat to the half-way position, then raise the seat to the highest position.
• When troubleshooting, do not remove the front seat. Disconnect only the side airbag inflator connector from under the front seat.

1. 12 Volt Battery Terminal - Disconnect

   NOTE:  Wait at least 3 minutes before starting work.

2. Front Seat - Remove
3. Front Seat-Back Cover/Pad - Remove

   1. Remove the front seat-back cover/pad and harness clips as needed .

4. Side Airbag - Remove

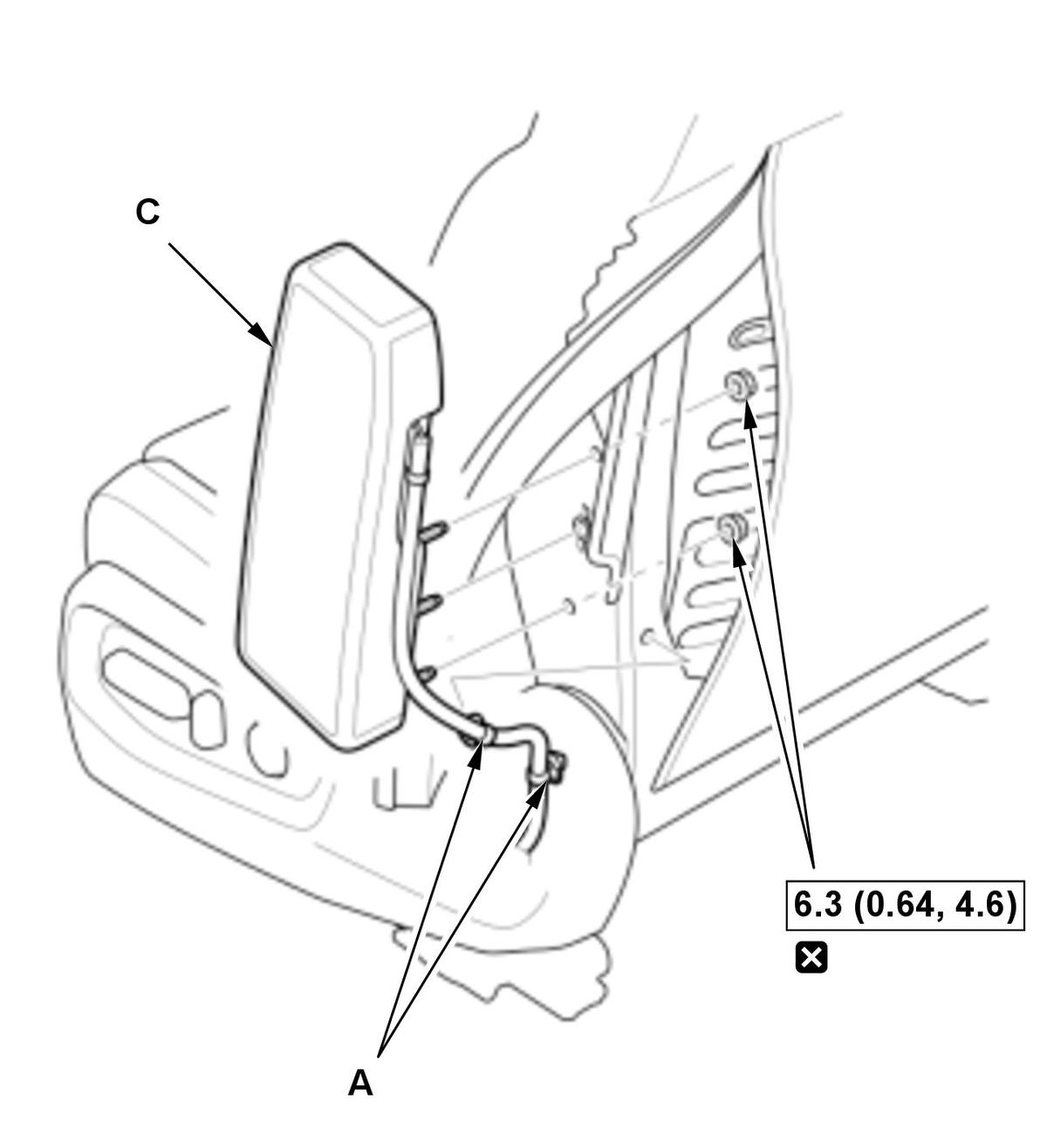

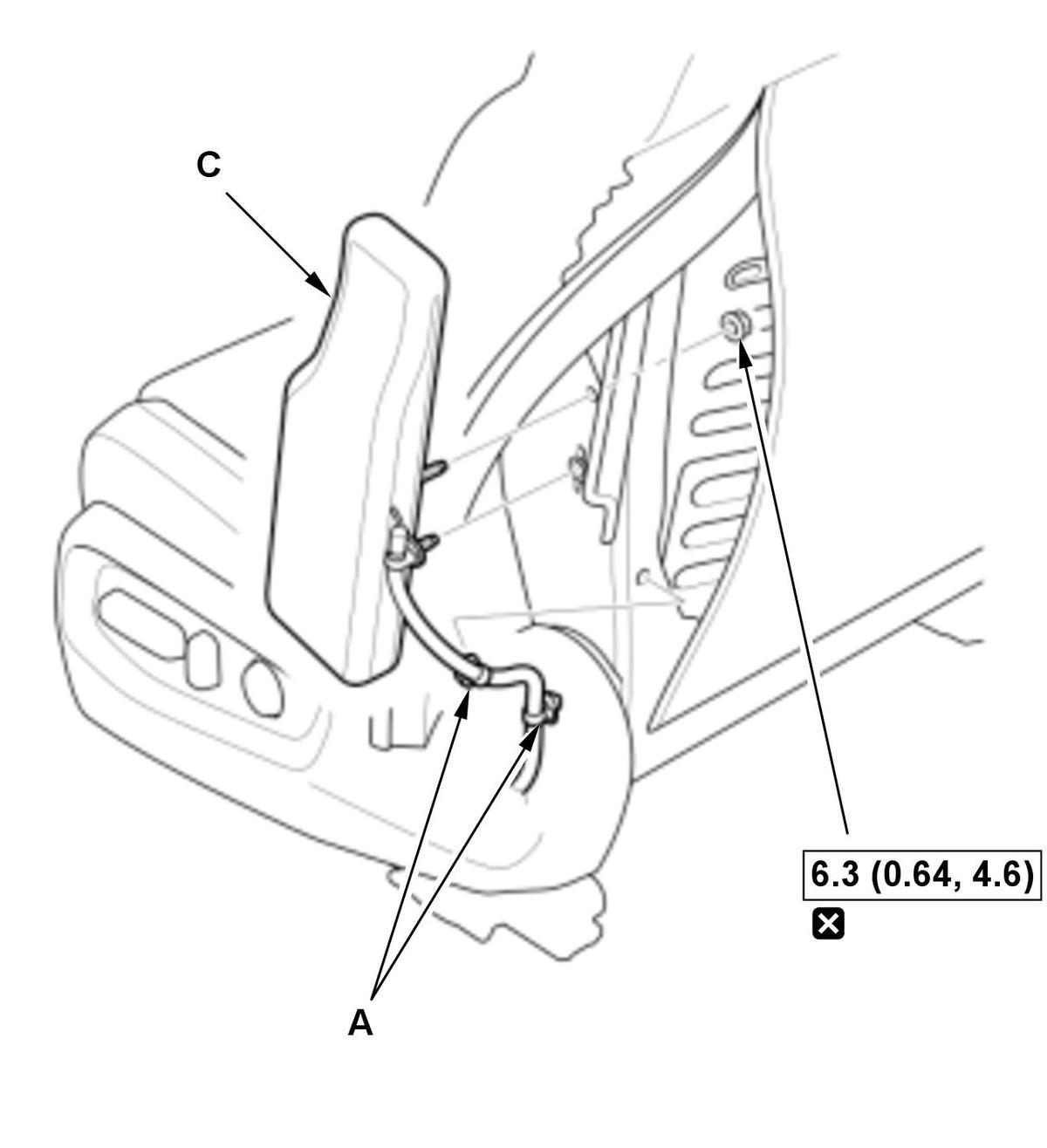

   One Mounting Nut Type  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Two Mounting Nuts Type  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

   1. Release the harness clips (A). 2. Remove the mounting nut (B), then remove the side airbag (C).

5. All Removed Parts - Install

   1. Install the all removed parts in the reverse order of removal. NOTE:  During installation, install the new mounting nut to the specified torque. If the side airbag cover is secured with tape, remove the tape. Do not open the lid on the side airbag cover. Make sure that the seat-back cover/pad is installed properly. Improper installation may prevent proper deployment. Be sure to install the harness so that they are not pinched or interfering with other parts.

6. Seat Operation - Confirm

   1. Move the front seat and the seat-back through their full ranges of movement, making sure the harness are not pinched or interfering with other parts.

7. SRS Operation - Confirm

   1. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
