Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE: How to read the torque specifications .

12 Volt Battery Terminal - Disconnect
NOTE: Wait at least 3 minutes before starting work.
Center Console - Remove

SRS Unit - Remove

Courtesy of HONDA, U.S.A., INC.

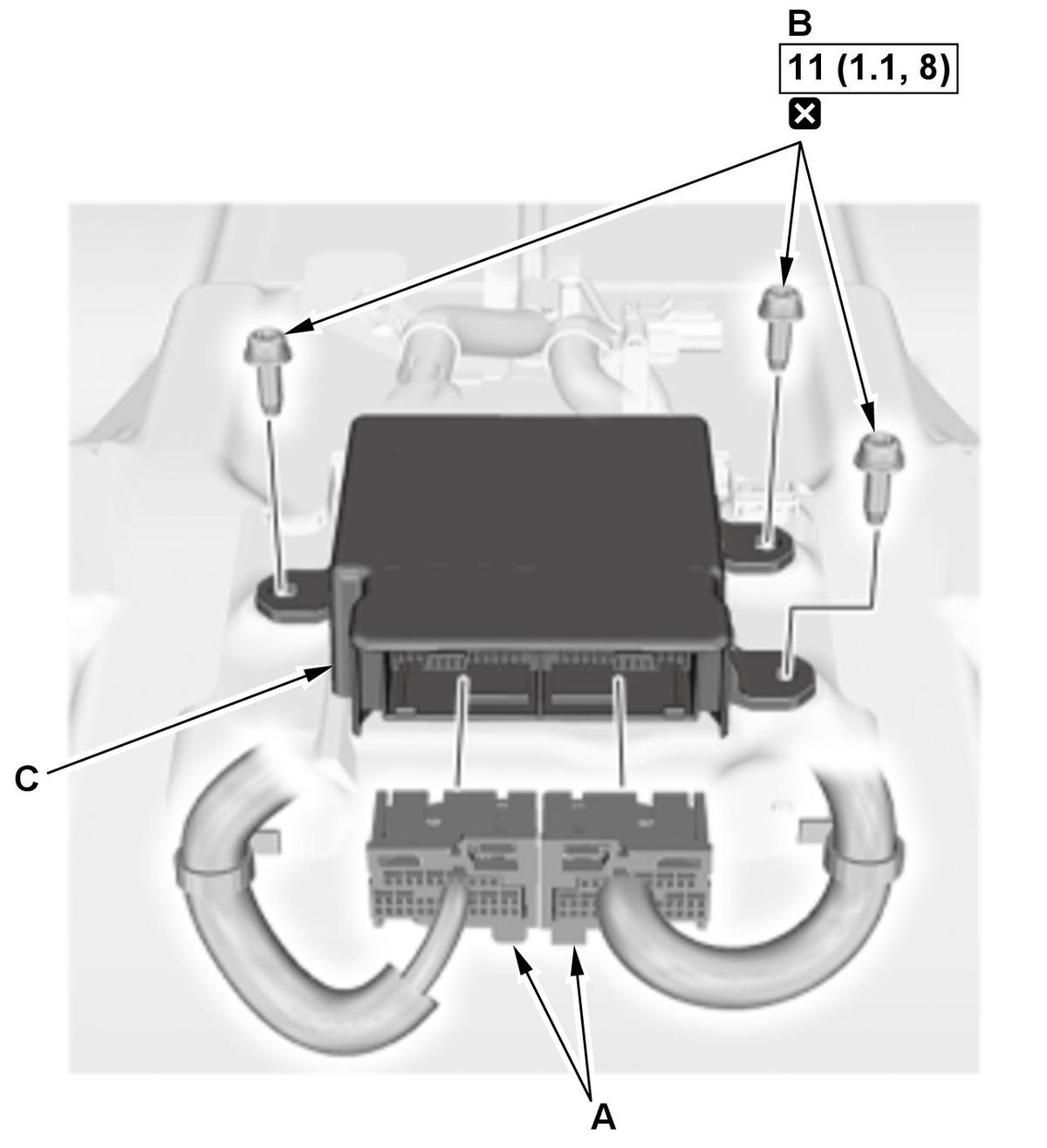

1. Disconnect the connectors (A).
NOTE: The SRS unit connectors have lever locks. Release the locks before disconnecting the connectors

2. Remove the bolts (B).

3. Remove the SRS unit (C).

All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.
NOTE:

During installation, install the new bolts to the specified torque.
Before installing the center console, make sure the SRS indicator works normally.
Make sure the SRS unit has the latest software. If it does not have the latest, update the software in the SRS unit .

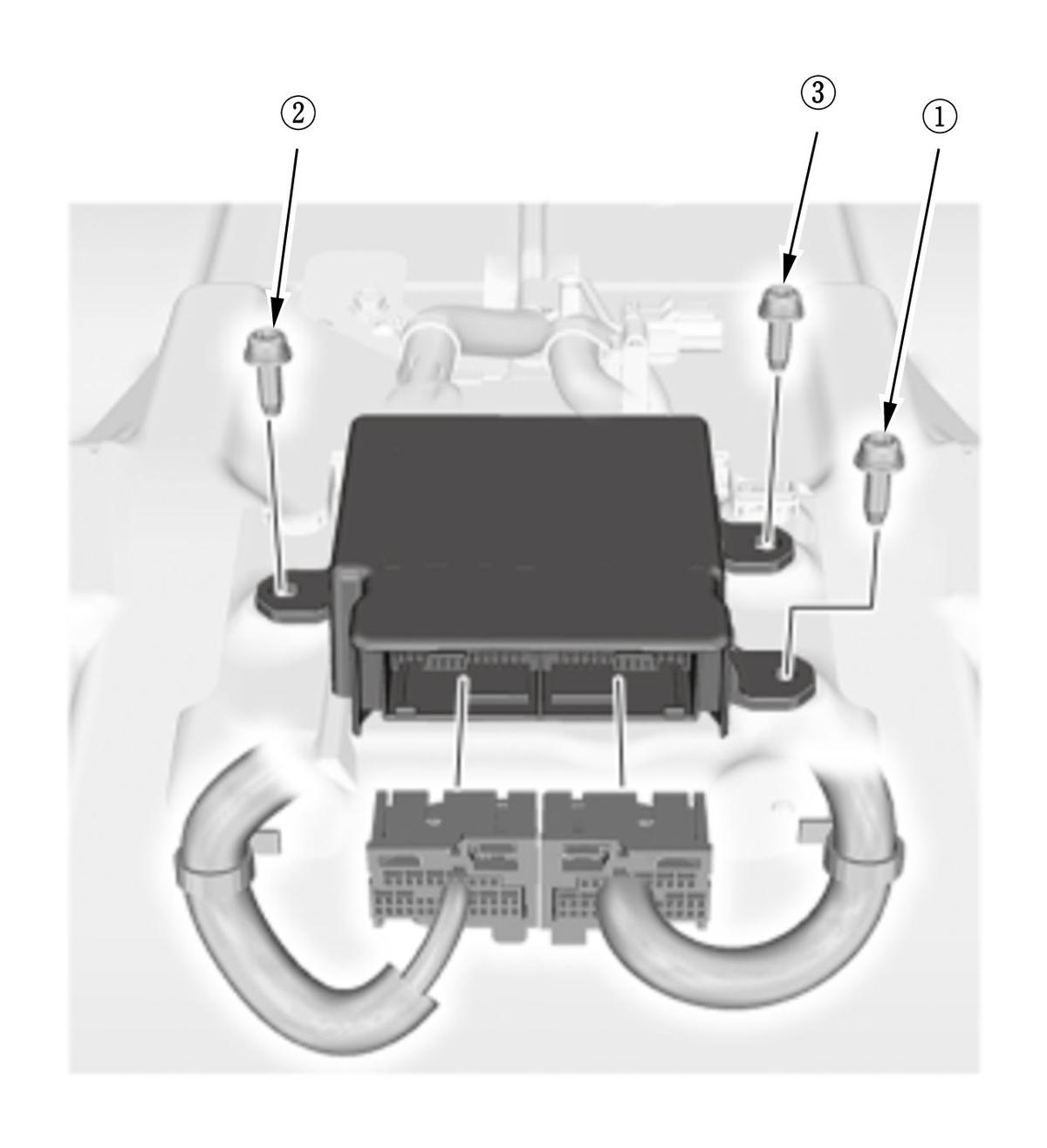

Tighten the bolts to specified torque in the numbered sequence shown.

Yaw Rate-Acceleration Neutral Position - Memorize
NOTE: After replacing the SRS unit with a new one, memorize the yaw rate-acceleration neutral position.
Front Passenger's Weight Sensor - Initialize
NOTE: After replacing the SRS unit with a new one, initialize the front passenger's weight sensors.

SRS Operation - Confirm

1. Do the 12 volt battery terminal reconnection procedure, turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
