Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• How to read the torque specifications .
• Do not turn the vehicle to the ON mode, while removing or installing the driver's seat position sensor.

1. Front Seat - Remove

   NOTE:  Raise the driver's seat all the way up.

2. Driver's Seat Position Sensor - Remove

   Courtesy of HONDA, U.S.A., INC.

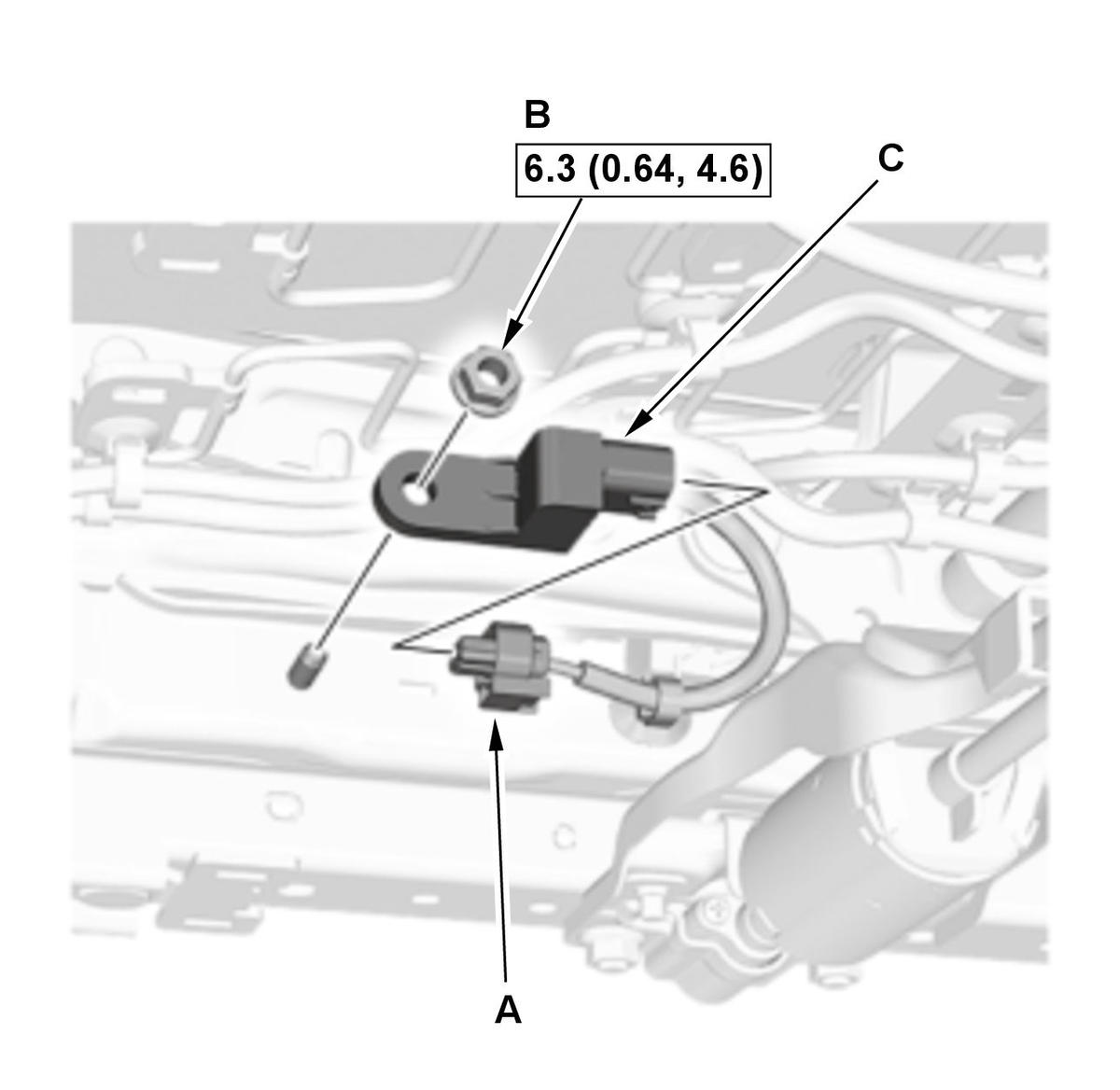

   1. Disconnect the connector (A). 2. Remove the nut (B), then remove the driver's seat position sensor (C).

3. All Removed Parts - Install

   1. Install the all removed parts in the reverse order of removal. NOTE:  Be sure to install the harness so it is not pinched or interferes with other parts. After replacing the driver's seat position sensor with a new one, check the driver's seat position sensor operation .

4. Driver's Seat Position Sensor - Operation Check
5. SRS Operation - Confirm

   1. Turn the vehicle to the ON mode, and check that the SRS indicator comes on for about 6 seconds and then goes off.
