A/C System Description - System Diagram (2020 2021)

For locations of each component on vehicle, refer to Component Location Index .

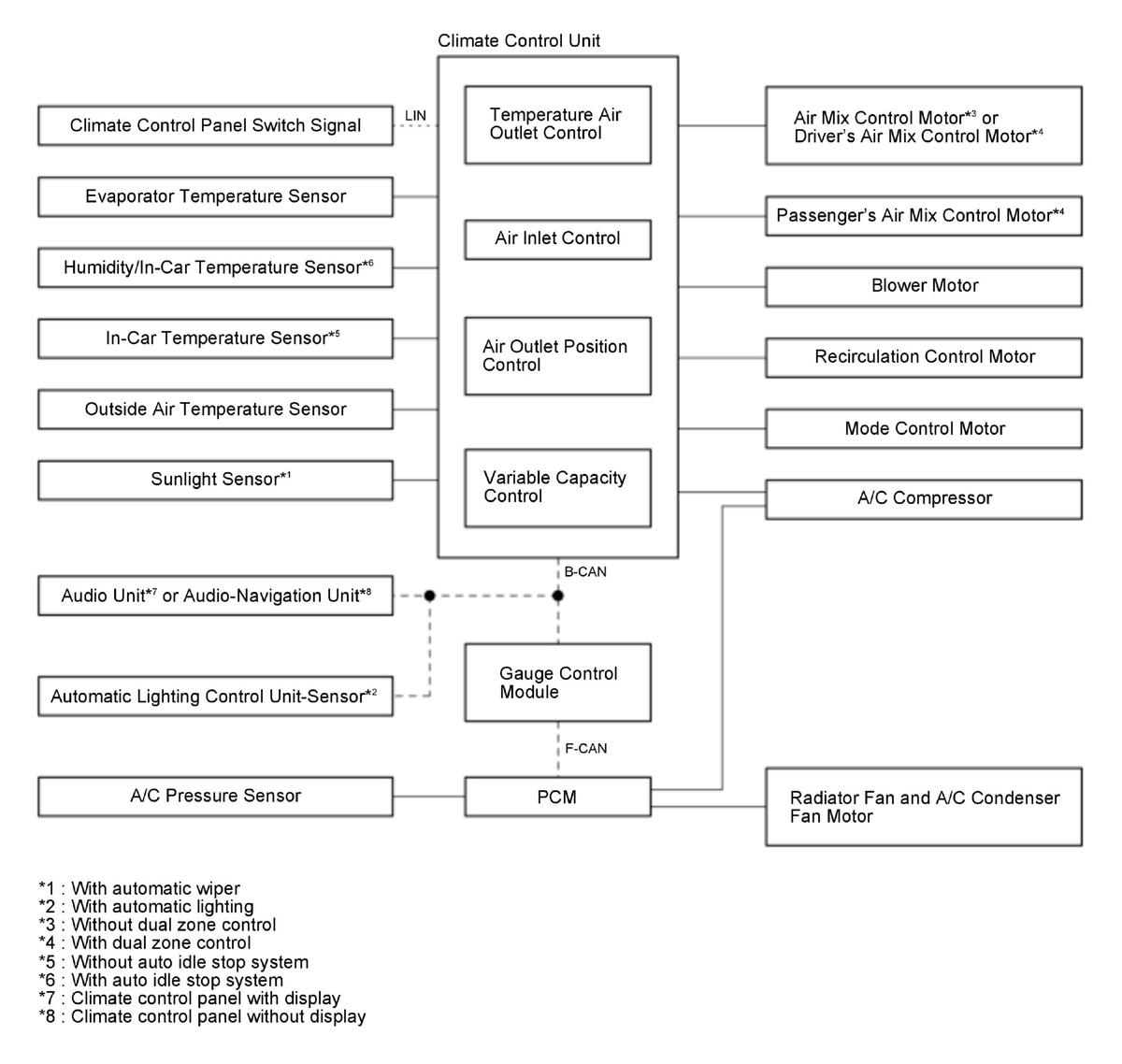

System Diagram

GHH428529Courtesy of HONDA, U.S.A., INC.
