Climate Control System Component Location Index

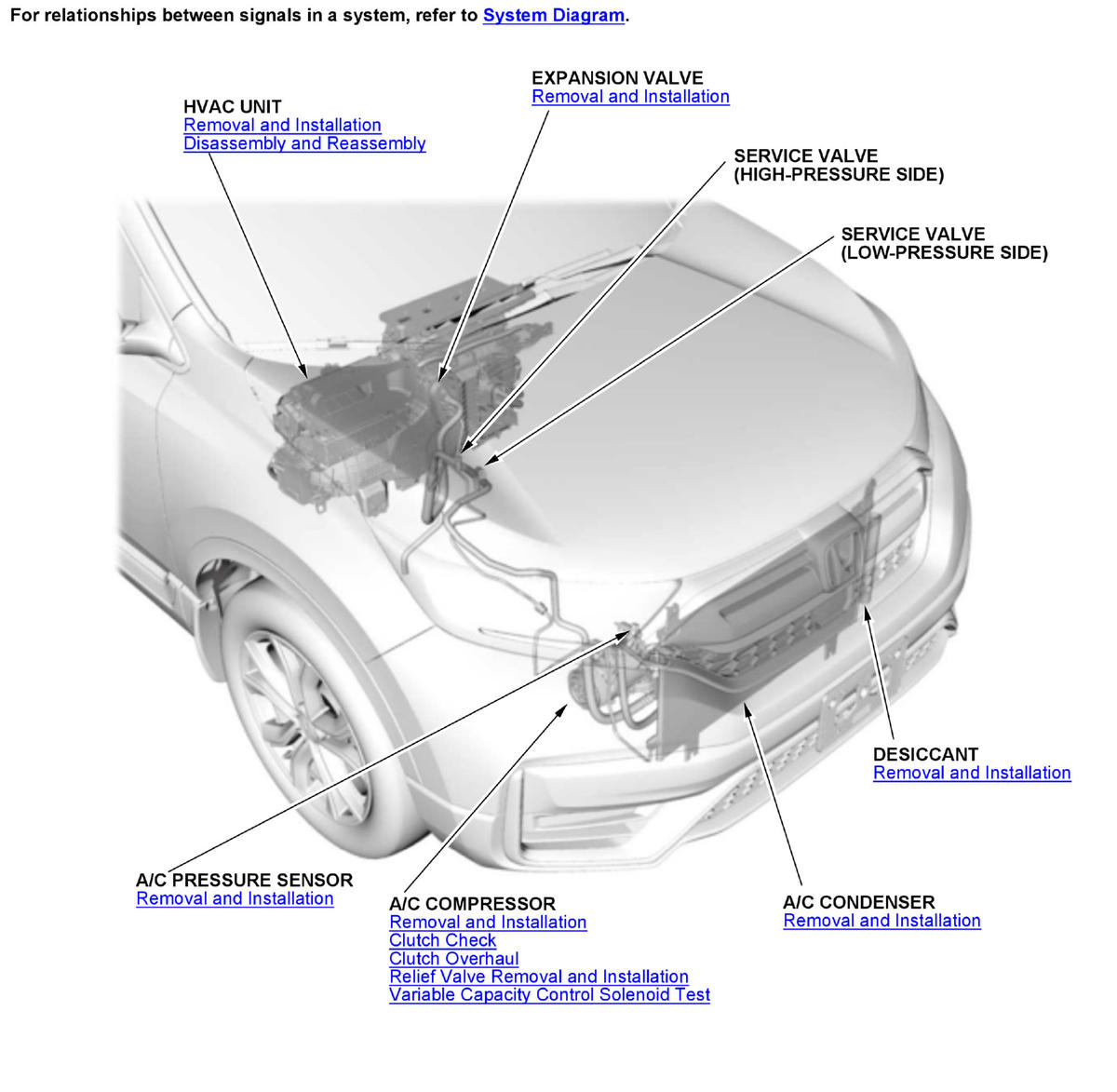

GHH428588

Courtesy of HONDA, U.S.A., INC.

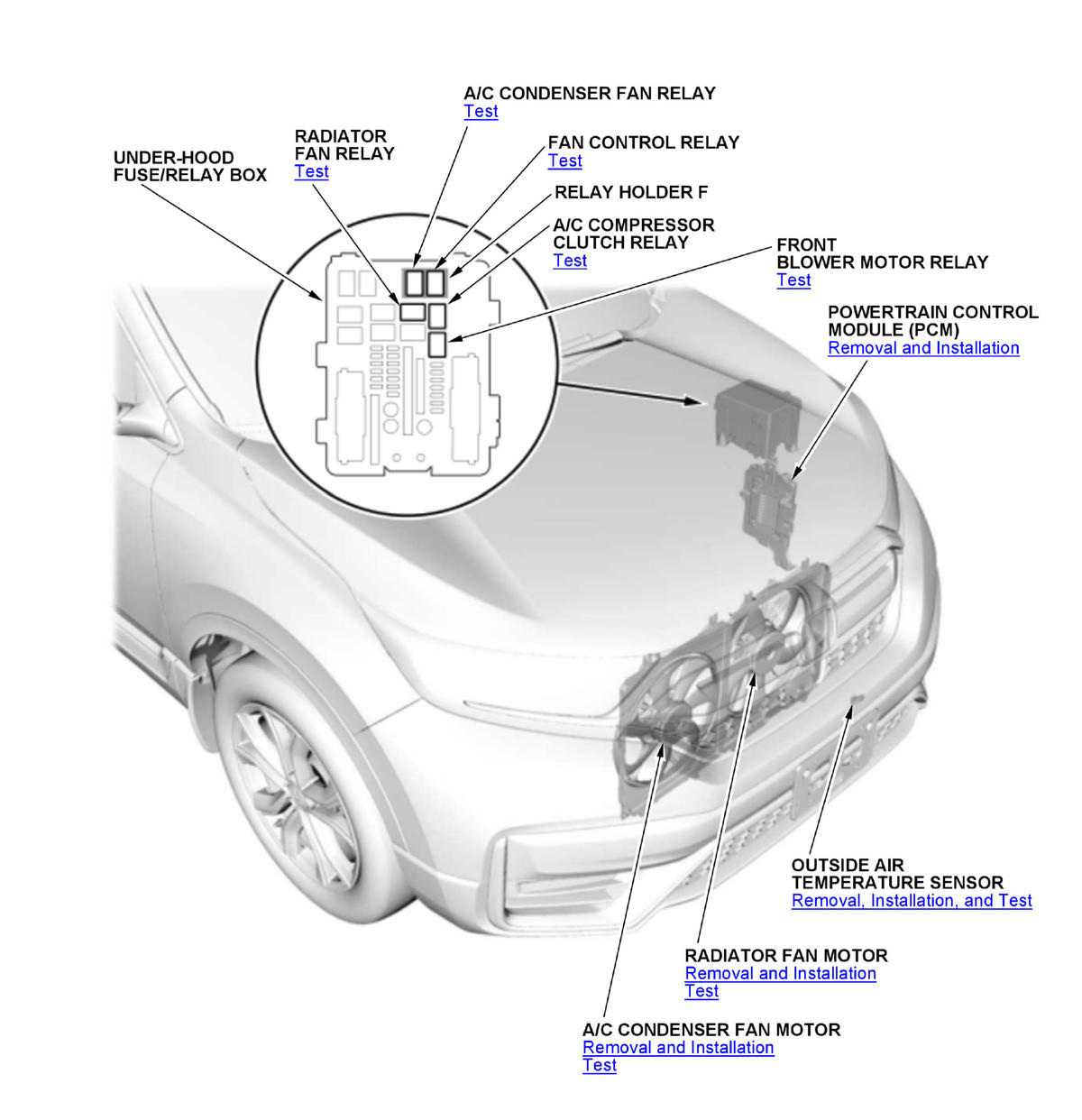

GHH428589

Courtesy of HONDA, U.S.A., INC.

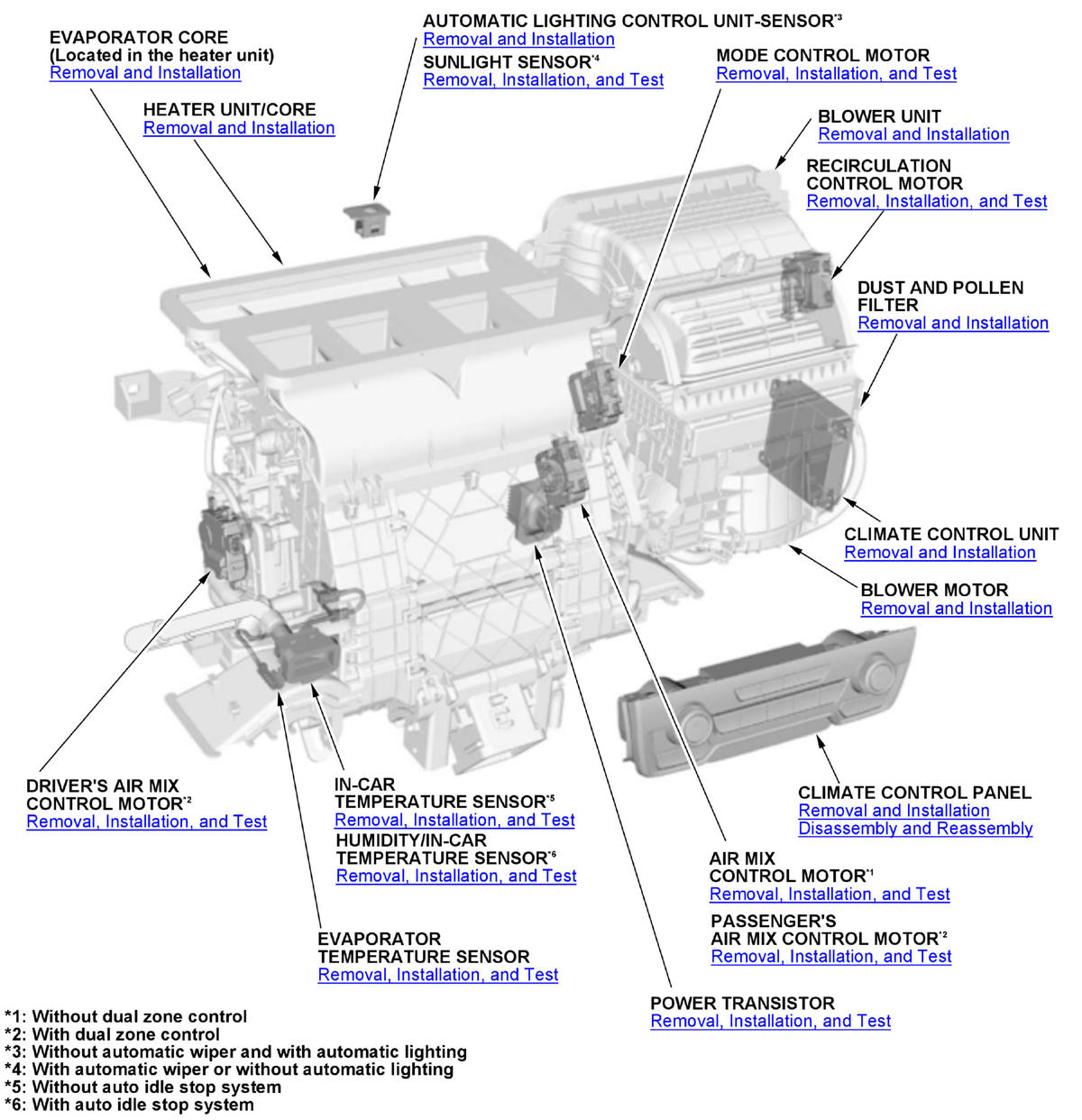

GHH428590

Courtesy of HONDA, U.S.A., INC.
