A/C System Description - System Diagram (2017 2018 2019)

For locations of each component on vehicle, refer to Component Location Index .

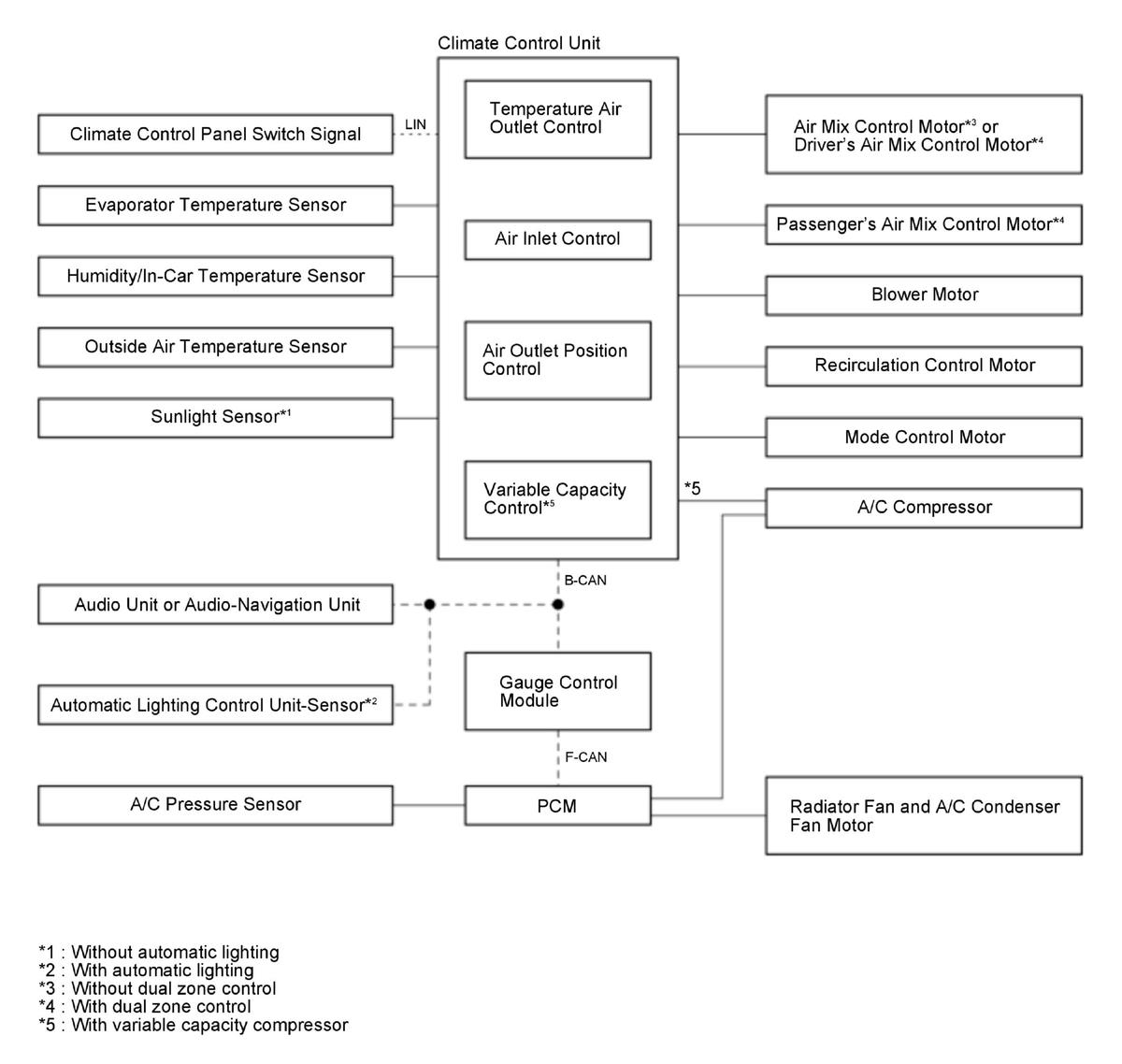

System Diagram

GHH428528Courtesy of HONDA, U.S.A., INC.
