Climate Control System Component Location Index (1.5 L Engine)

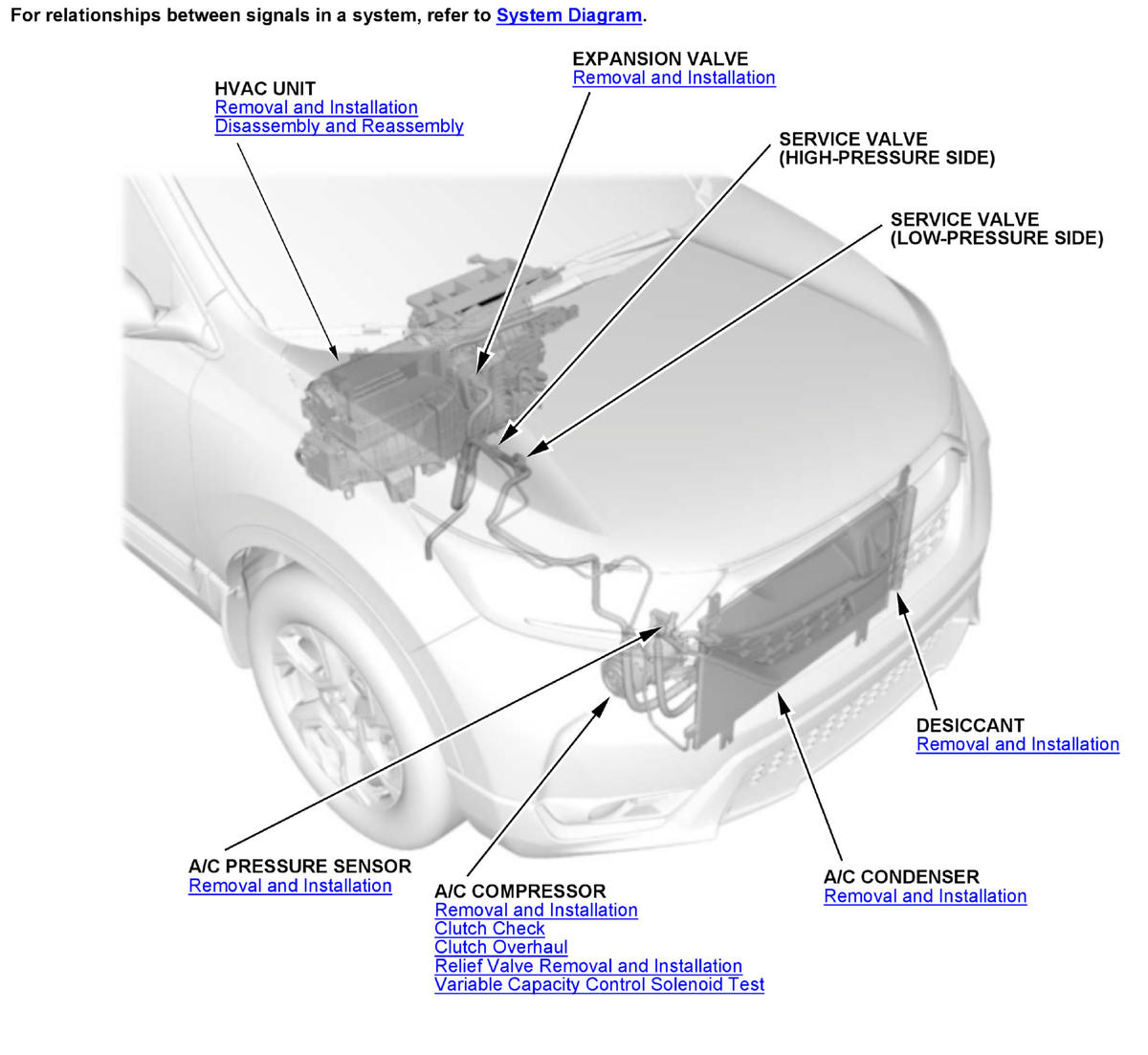

GHH428591

Courtesy of HONDA, U.S.A., INC.

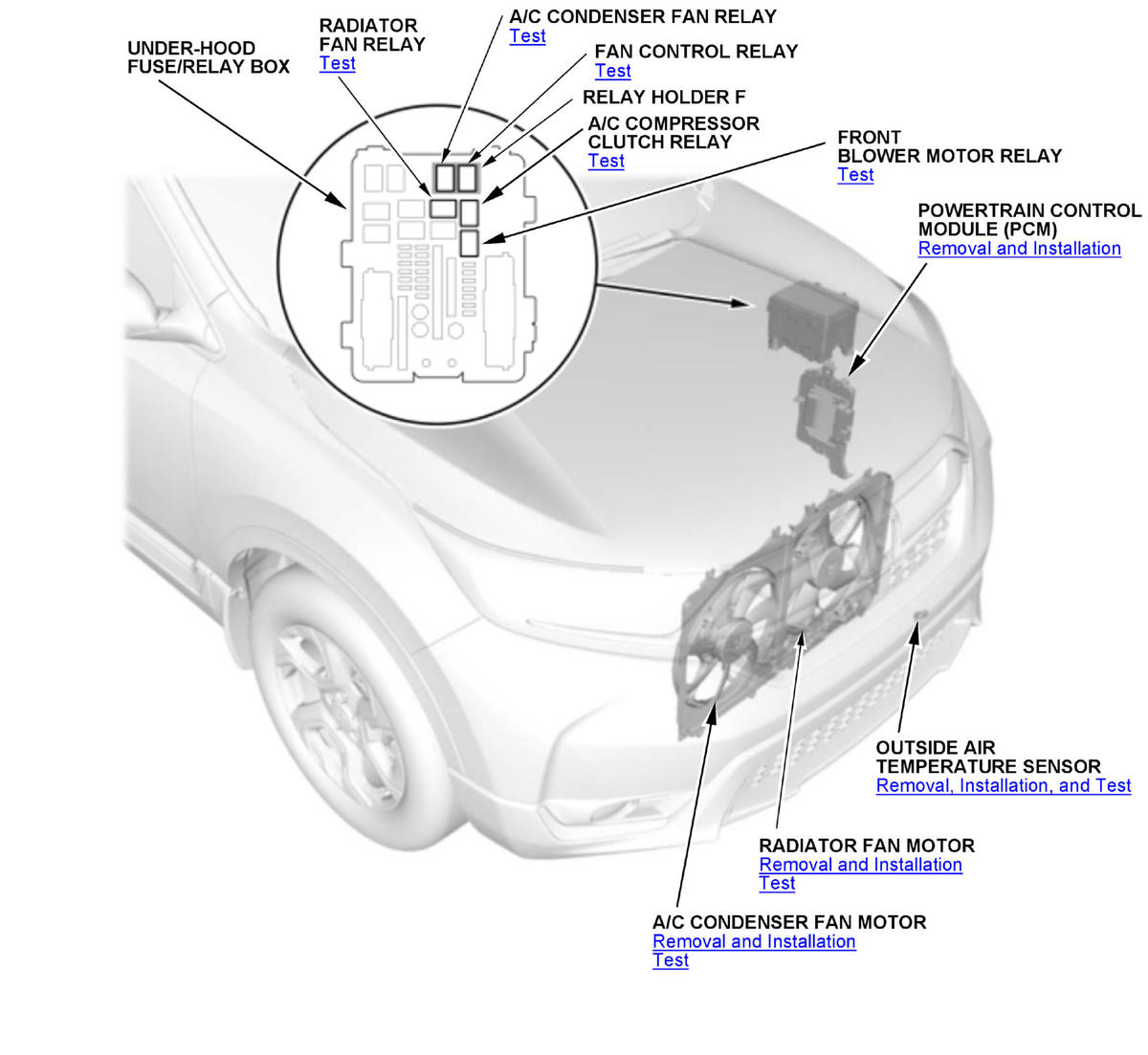

GHH428592

Courtesy of HONDA, U.S.A., INC.

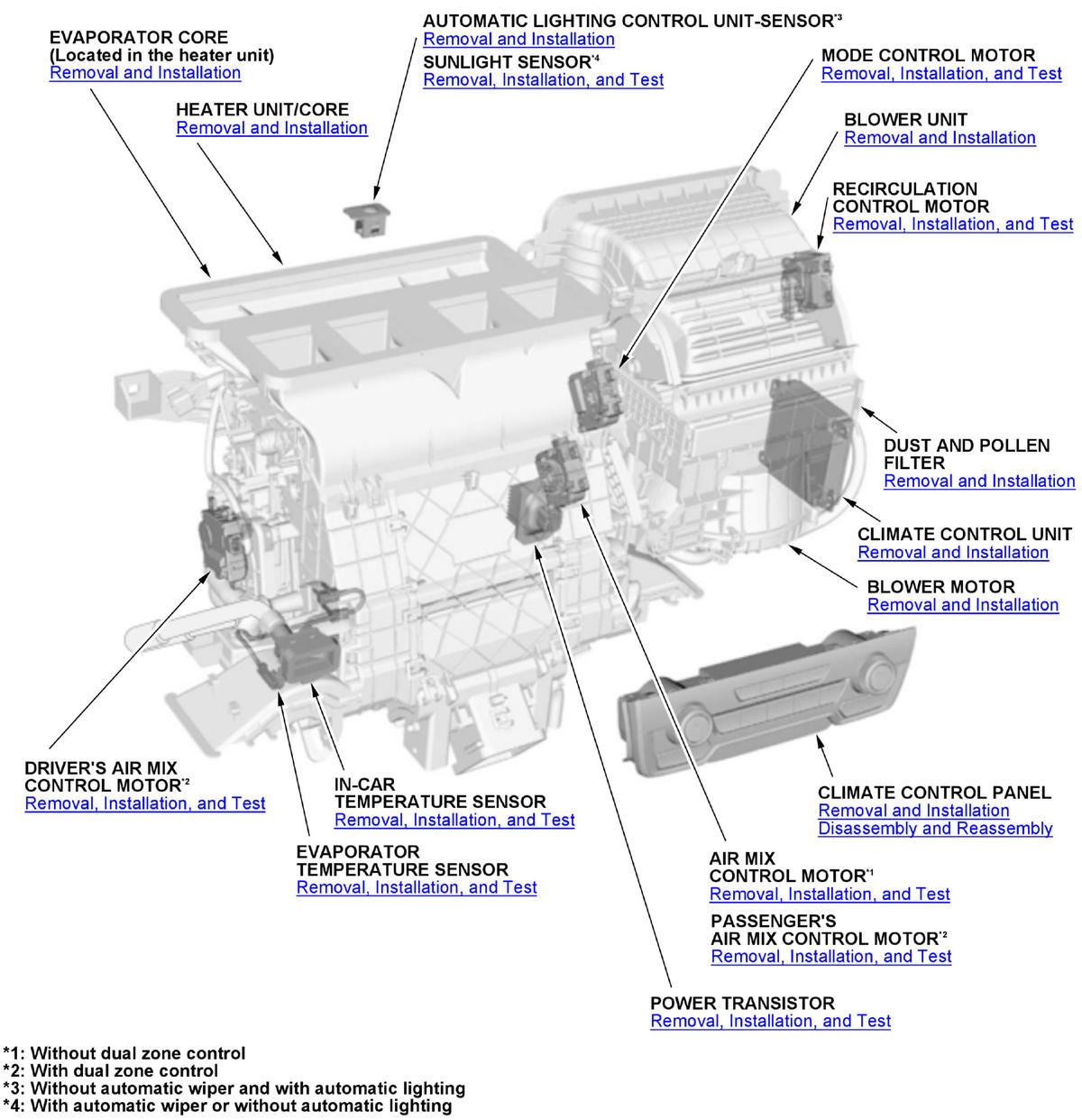

GHH428593

Courtesy of HONDA, U.S.A., INC.
