Removal and Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1

Courtesy of HONDA, U.S.A., INC.

1. Passenger's Dashboard Undercover - Remove

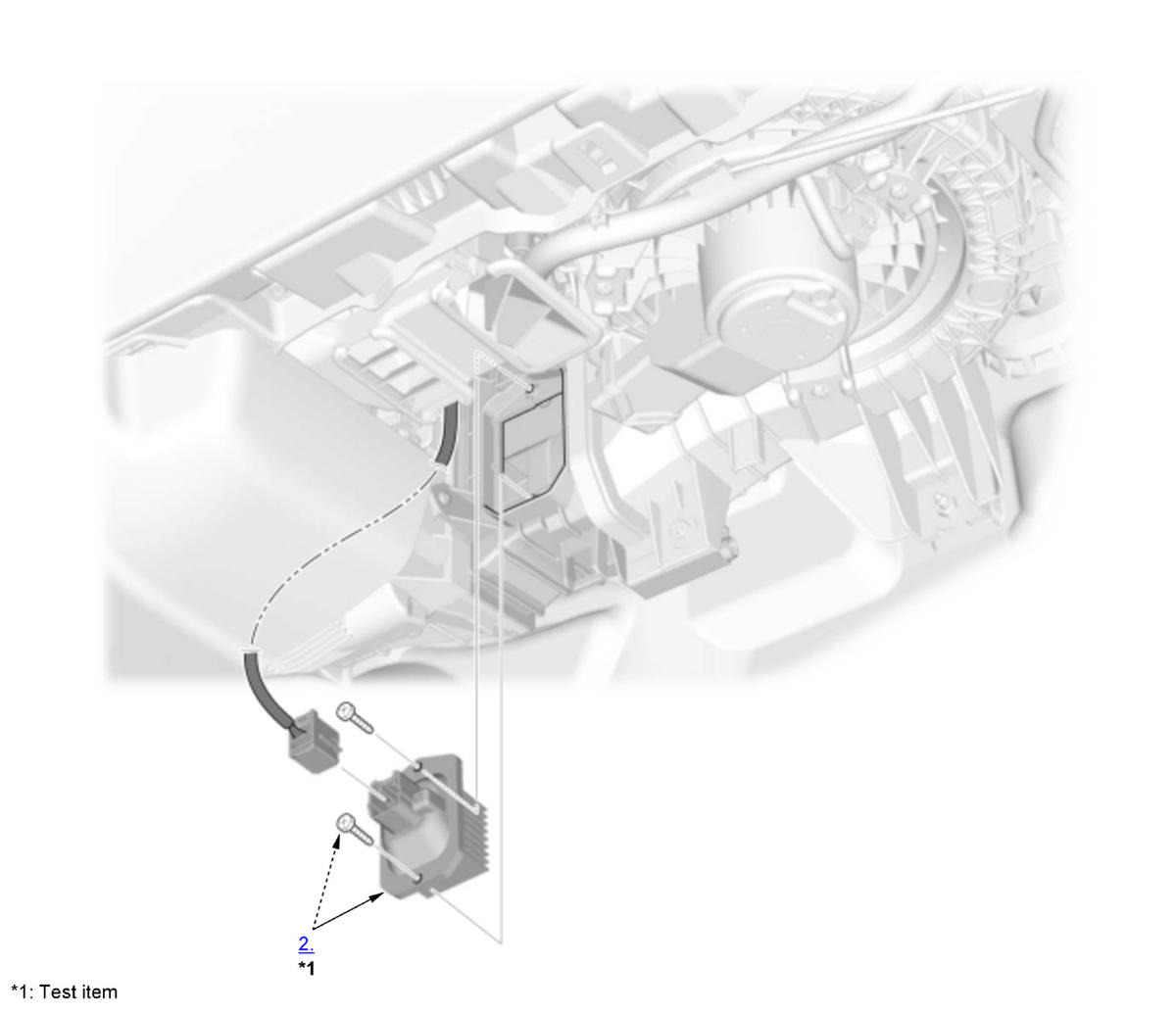

2. Power Transistor - Remove
3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
