DTC C1852-18

DTC C1852-18  : Solenoid Valve Circuit Low Current

NOTE:  Before you troubleshoot, review the General Troubleshooting Information .

DTC (Real Time AWD)

1. Problem verification (with engine idling)

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Enter the maintenance mode and start the engine .

   -5. Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   C1852-18 Solenoid Valve Circuit Low Current

   Is DTC C1852-18 indicated?

   YES

   The failure is duplicated. Go to step 5.

   NO

   Go to step 2.

2. Problem verification (with rear differential pump motor running)

   -1. Clear the DTC with the HDS.

   -2. Turn the vehicle to the OFF (LOCK) mode.

   -3. Enter the maintenance mode and start the engine .

   -4. Select the ADJUSTMENT in the REAL TIME AWD with the HDS.

   -5. With the engine running, do the AIR BLEEDING in the ADJUSTMENT with the HDS .

   Air Bleeding

   Check for DTCs with the HDS.

   DTC Description	DTC	Freeze Frame
   C1852-18 Solenoid Valve Circuit Low Current

   Is DTC C1852-18 indicated?

   YES

   The failure is duplicated. Go to step 3.

   NO

   Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

3. Determine possible failure area (DTYH1 line)

   -1. Turn the vehicle to the OFF (LOCK) mode

   -2. Disconnect the following connector.

   Rear differential solenoid valve 1P connector

   AWD control unit 24P connector

   -3. Measure the resistance between test points 1 and 2.

   Test condition

   Vehicle OFF (LOCK) mode

   	Rear differential solenoid valve 1P connector: disconnected
   	AWD control unit 24P connector: disconnected
   Test point 1	Rear differential solenoid valve 1P connector (female terminals) No. 1:
   Test point 2	AWD control unit 24P connector No. 15

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The DTYH1 wire is not open. Go to step 4.

   NO

   Repair an open in the DTYH1 wire between the rear differential solenoid valve and the AWD control unit.

4. Shorted wire check (DTYH1 line)

   -1. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rear differential solenoid valve 1P connector: disconnected
   	AWD control unit 24P connector: disconnected
   Test point 1	AWD control unit 24P connector No. 15
   Test point 2	Body ground

   Is there 1.0 MΩ or more?

   YES

   The DTYH1 wire is not shorted. Go to step 5.

   NO

   Repair a short to ground in the DTYH1 wire between the rear differential solenoid valve and the AWD control unit.

5. Determine possible failure area (D-GND/GND line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the rear differential subharness D-GND/GND wire terminal from the rear differential assembly.

   -3. Measure the resistance between the following test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rear differential subharness D-GND/GND wire terminal: disconnected
   Test point 1	Rear differential subharness D-GND/GND wire terminal
   Test point 2	Body ground

   Is there 1.0 Ω or less?

   YES

   Go to step 6.

   NO

   Repair an open in the D-GND/GND wires between the AWD control unit and ground (G503).

6. Determine possible failure area (D-GND2/GND line, others)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the rear differential subharness D-GND2/GND wire terminal from the rear differential assembly.

   -3. Measure the resistance between the following test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rear differential subharness D-GND2/GND wire terminal: disconnected
   Test point 1	Rear differential subharness D-GND2/GND terminal
   Test point 2	Body ground

   Is there 1.0 Ω or less?

   YES

   Go to step 7.

   NO

   Repair an open in the D-GND2/GND wires between the AWD control unit and ground (G503).

7. Rear differential solenoid valve check

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. On the solenoid valve side, measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Rear differential solenoid valve 1P connector: disconnected
   	AWD control unit 24P connector: disconnected
   	Rear differential subharness D-GND/GND and D-GND2/GND wire terminal: disconnected

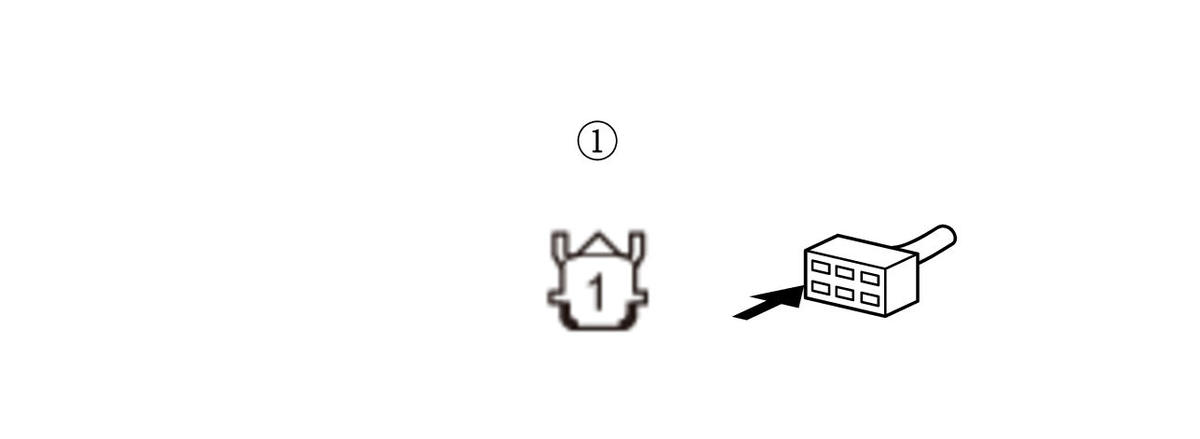

   Test point 1	Rear differential solenoid valve 1P connector (male terminals) No. 1:
   Test point 2	Rear differential solenoid valve body

   Courtesy of HONDA, U.S.A., INC.

   Is there about 100 Ω or less?

   YES

   The rear differential solenoid valve is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good AWD control unit , and recheck. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit .

   NO

   Replace the rear differential solenoid valve .
