DTC C1840-12

WARNING: This page is about a different variant/trim than selected.

DTC C1840-12  : Differential Fluid Pressure Sensor Circuit High Voltage

NOTE:  Before you troubleshoot, review the General Troubleshooting Information .

DTC Description DTC Freeze Frame
C1840-12 Differential Fluid Pressure Sensor Circuit High Voltage

DTC (Real Time AWD)

  1. Determine possible failure area (electrical circuit problem, hydraulic circuit problem)

    -1. Enter the maintenance mode and start the engine .

    -2. Check the parameter(s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Voltage of the oil pressure sensor for rear differential More than 4.14 V

    Do the current condition(s) match the threshold?

    YES

    Go to step 3.

    NO

    Go to step 2.

  2. Problem verification

    -1. Clear the DTC with the HDS.

    -2. Turn the vehicle to the OFF (LOCK) mode.

    -3. Turn the vehicle to the ON mode.

    -4. Select the FUNCTIONAL TEST in the REAL TIME AWD with the HDS.

    -5. Do the OIL PRESSURE CONTROL TEST in the FUNCTIONAL TEST with the HDS .

    Oil Pressure Control Test

    Is the test result OK?

    YES

    Intermittent failure, the system is OK at this time. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

    NO

    The failure is duplicated. Follow the instructions indicated on the HDS according to the test result .

  3. Determine possible failure area (short to power in PS1 line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    Rear differential fluid pressure sensor 3P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Rear differential fluid pressure sensor 3P connector: disconnected

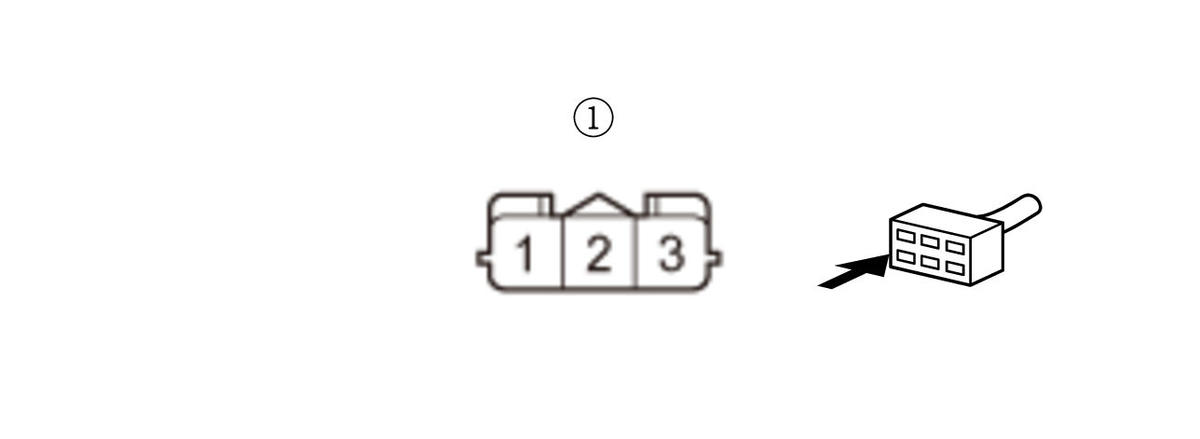

    Test point 1 Rear differential fluid pressure sensor 3P connector (female terminals) No. 1:
    Test point 2 Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    GHH380481Courtesy of HONDA, U.S.A., INC.

    Is there about 4.14 V or more?

    YES

    Go to step 4.

    NO

    Go to step 7.

  4. Shorted wire check (PS1 line to power)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Disconnect the following connector.

    AWD control unit 24P connector

    -3. Turn the vehicle to the ON mode.

    -4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
      Rear differential fluid pressure sensor 3P connector: disconnected
      AWD control unit 24P connector: disconnected
    Test point 1 Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    Test point 2 Body ground
    GHH380483Courtesy of HONDA, U.S.A., INC.

    Is there about 0.5 V or more?

    YES

    Repair a short to power in the PS1 wire between the rear differential fluid pressure sensor and the AWD control unit.

    NO

    Go to the 5.

  5. Shorted wire check (PS1 line to SVCC line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Rear differential fluid pressure sensor 3P connector: disconnected
      AWD control unit 24P connector: disconnected

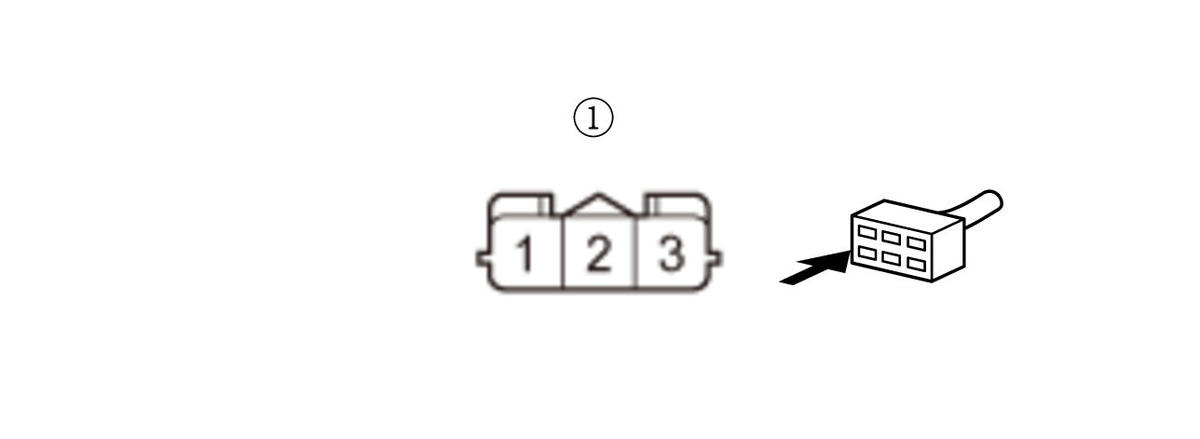

    Test point 1 Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    Test point 2 Rear differential fluid pressure sensor 3P connector (female terminals) No. 3:
    GHH380486Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 MΩ or more?

    YES

    Go to step 6.

    NO

    Repair a short in the PS1 wire to the SVCC wire between the rear differential fluid pressure sensor and the AWD control unit.

  6. Rear differential fluid pressure sensor check

    -1. Connect the following connector.

    AWD control unit 24P connector

    -2. Connect terminals A and B with a jumper wire.

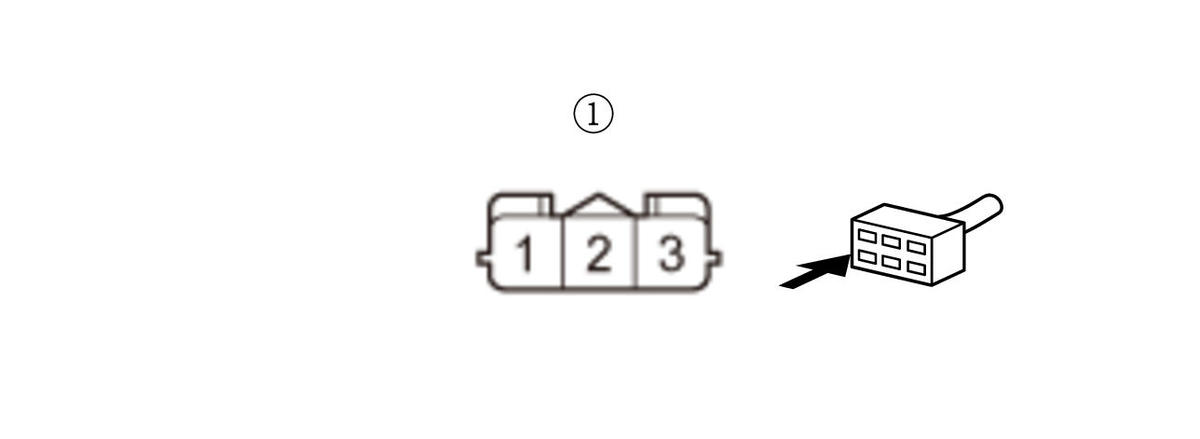

    Terminal A Rear differential fluid pressure sensor 3P connector (female terminals) No. 1:
    Terminal B Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    GHH380489Courtesy of HONDA, U.S.A., INC.

    -3. Turn the vehicle to the ON mode.

    -4. Check the parameter(s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Voltage of the oil pressure sensor for rear differential Less than 0.1 V

    Do the current condition(s) match the threshold?

    YES

    Replace the rear differential fluid pressure sensor .

    NO

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good AWD control unit , and recheck. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit .

  7. Determine possible failure area (open in PS1 line, others)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Connect terminals A and B with a jumper wire.

    Terminal A Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    Terminal B Body ground
    GHH380491Courtesy of HONDA, U.S.A., INC.

    -3. Turn the vehicle to the ON mode.

    -4. Check the parameter(s) below with the HDS.

    Signal Threshold Current conditions
    Values Unit Values Unit
    Voltage of the oil pressure sensor for rear differential Less than 0.1 V

    Do the current condition(s) match the threshold?

    YES

    Go to step 9.

    NO

    Go to step 8.

  8. Open wire check (PS1 line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Disconnect the following connector.

    AWD control unit 24P connector

    -4. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Rear differential fluid pressure sensor 3P connector: disconnected
      AWD control unit 24P connector: disconnected
    Test point 1 Rear differential fluid pressure sensor 3P connector (female terminals) No. 2:
    Test point 2 AWD control unit 24P connector No. 21
    GHH380493Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The PS1 wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good AWD control unit , and recheck. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit .

    NO

    Repair an open in the PS1 wire between the rear differential fluid pressure sensor and the AWD control unit.

  9. Open wire check (SG line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    -2. Remove the jumper wire.

    -3. Disconnect the following connector.

    AWD control unit 24P connector

    -4. Measure the resistance between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
      Rear differential fluid pressure sensor 3P connector: disconnected
      AWD control unit 24P connector: disconnected

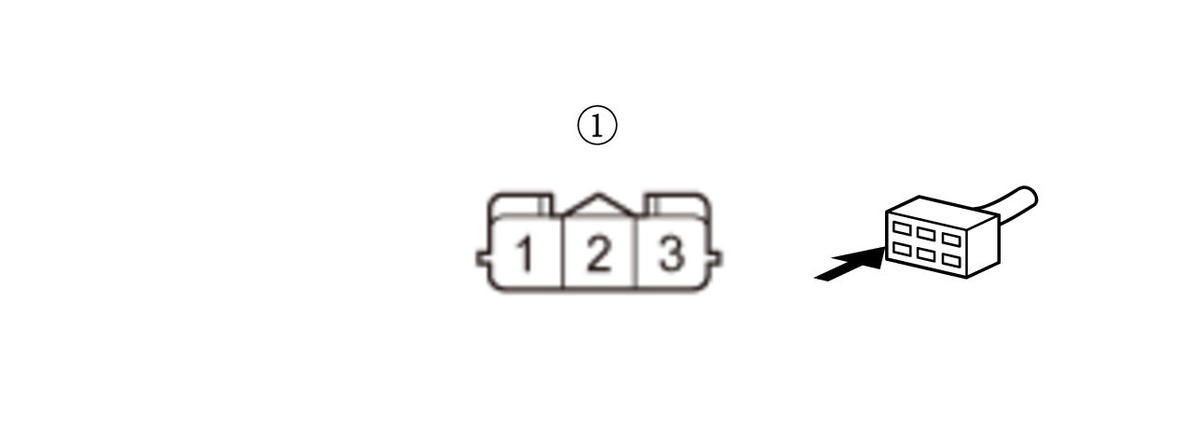

    Test point 1 Rear differential fluid pressure sensor 3P connector (female terminals) No. 1:
    Test point 2 AWD control unit 24P connector No. 11
    GHH380495Courtesy of HONDA, U.S.A., INC.

    Is there 1.0 Ω or less?

    YES

    The SG wire is OK. Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good AWD control unit , and recheck. If the symptom/indication goes away with a known-good AWD control unit, replace the original AWD control unit .

    NO

    Repair an open in the SG wire between the rear differential fluid pressure sensor and the AWD control unit.
