Blind Spot Information (BSI) System Description - System Diagram
WARNING: This page is about a different variant/trim than selected.

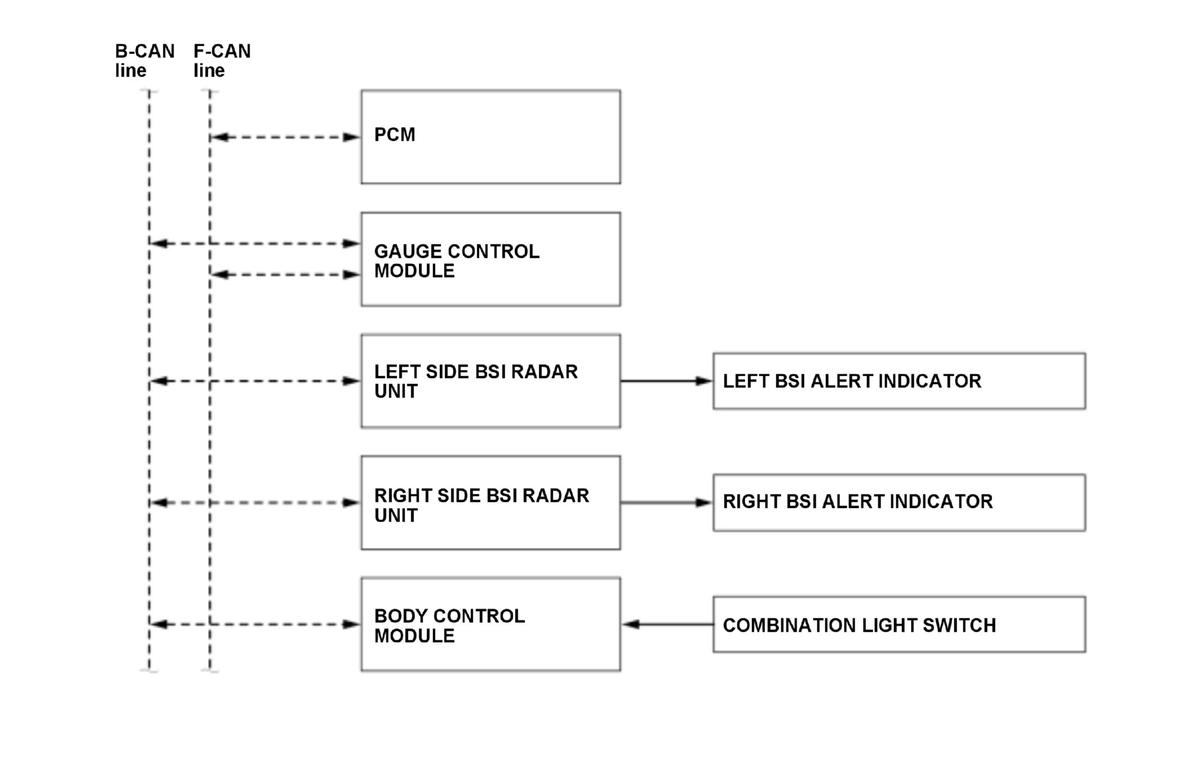

The system diagram of the BSI system is shown below.
For locations of each component on the vehicle, refer to Component Location Index:
- PCM
- Gauge control module
- Left side BSI radar unit, Left BSI alert indicator, Right side BSI radar unit, Right BSI alert indicator
- Body control module
- Combination Light Switch
