DTC P0B40 (1048)

DTC P0B40  : HV Battery Cell Voltage Sense Circuit 2

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (Electric Powertrain)

1. Problem verification (DTC check)

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0B40 HV Battery Cell Voltage Sense Circuit 2

   Is DTC P0B40 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the battery module the battery condition monitor module. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Problem verification (update)

   -1. Clear the DTC with the HDS.

   -2. Do the battery condition monitor module update procedure .

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0B40 HV Battery Cell Voltage Sense Circuit 2

   Is DTC P0B40 indicated?

   YES

   Go to step 3.

   NO

   The update is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.

3. Open wire check (VHB subharness)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the service plug and the IPU cover .

   -3. Remove the IPU and the IPU case .

   -4. Disconnect the following connectors.

   Battery condition monitor module connector B (28P)

   Battery module 1 28P connector

   Battery module 2 28P connector

   -5. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Battery condition monitor module connector B (28P): disconnected
   	Battery module 1 28P connector: disconnected
   	Battery module 2 28P connector: disconnected

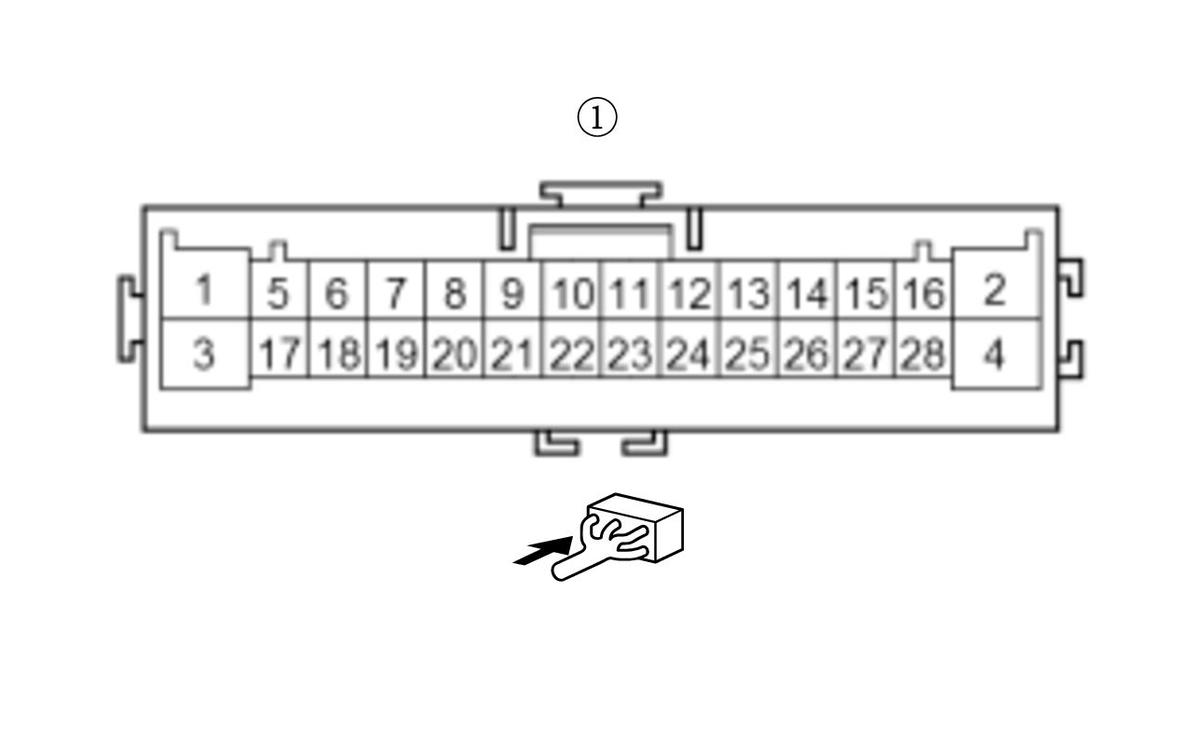

   Circuit name	Test point 1 (Battery condition monitor module connector B (28P) )	Test point 2 (Battery module 1 28P connector (male terminals)):
   VH12	No. 15	No. 10
   VH13	No. 1	No. 22
   VH14	No. 16	No. 11
   VH15	No. 2	No. 23
   VH16	No. 17	No. 12
   VH17	No. 3	No. 24
   VH18-0	No. 18	No. 13

   Courtesy of HONDA, U.S.A., INC.

   Circuit name	Test point 1 (Battery condition monitor module connector B (28P) )	Test point 2 (Battery module 2 28P connector (male terminals)):
   VH19	No. 4	No. 3
   VH20	No. 19	No. 5
   VH21	No. 5	No. 17
   VH22	No. 20	No. 6
   VH23	No. 6	No. 18
   VH24	No. 7	No. 7

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The VHB subharness is OK. Replace the battery condition monitor module and the battery pack .

   NO

   Repair an open in the VHB subharness between the battery condition monitor module and the battery module.
