DTC P0B3B (122)

DTC P0B3B  : HV Battery Cell Voltage Sense Circuit 1

NOTE:  Before you troubleshoot, review the general troubleshooting information .

DTC (Electric Powertrain)

1. Problem verification (DTC check)

   -1. Turn the vehicle to the ON mode.

   -2. Clear the DTC with the HDS.

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0B3B HV Battery Cell Voltage Sense Circuit 1

   Is DTC P0B3B indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the battery module the battery condition monitor module. If the freeze data/on-board snapshot of this DTC is recorded, try to reproduce the failure under the same conditions with the freeze data/on-board snapshot.

2. Problem verification (update)

   -1. Clear the DTC with the HDS.

   -2. Do the battery condition monitor module update procedure .

   -3. Turn the vehicle to the OFF (LOCK) mode.

   -4. Turn the vehicle to the ON mode.

   -5. Check for Pending or Confirmed DTCs with the HDS.

   DTC Description	Confirmed DTC	Pending DTC	Freeze Frame
   P0B3B HV Battery Cell Voltage Sense Circuit 1

   Is DTC P0B3B indicated?

   YES

   Go to step 3.

   NO

   The update is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.

3. Open wire check (VHB subharness)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Remove the service plug and the IPU cover .

   -3. Remove the IPU and the IPU case .

   -4. Disconnect the following connectors.

   Battery condition monitor module connector A (28P)

   Battery condition monitor module connector B (28P)

   Battery module 1 28P connector

   -5. Measure the resistance between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   	Battery condition monitor module connector A (28P): disconnected
   	Battery condition monitor module connector B (28P): disconnected
   	Battery module 1 28P connector: disconnected

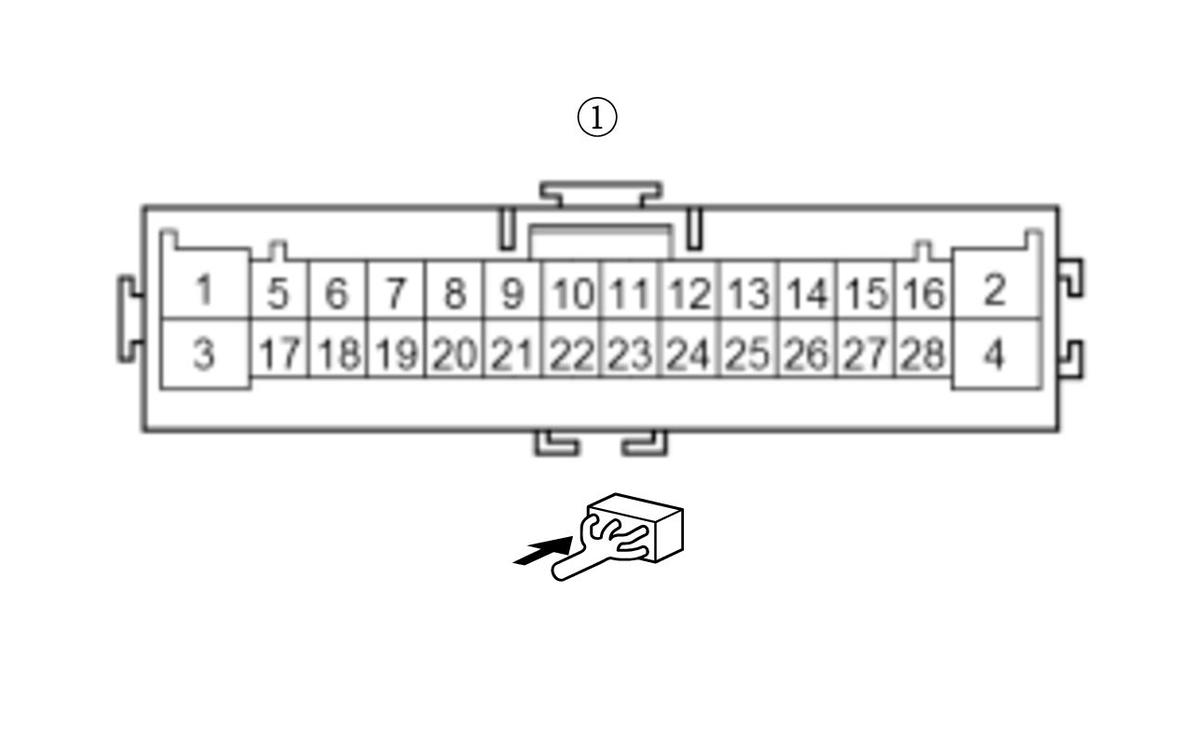

   Circuit name	Test point 1 (Battery condition monitor module connector A (28P) )	Test point 2 (Battery module 1 28P connector (male terminals)):
   VH0	No. 8	No. 1
   VH1	No. 23	No. 3
   VH2	No. 9	No. 5
   VH3	No. 24	No. 17
   VH4	No. 10	No. 6
   VH5	No. 25	No. 18
   VH6	No. 11	No. 7
   VH7	No. 26	No. 19
   VH8	No. 12	No. 8

   Circuit name	Test point 1 (Battery condition monitor module connector A (28P) )	Test point 2 (Battery module 1 28P connector (male terminals)):
   VH9	No. 27	No. 20
   VH10	No. 13	No. 9
   VH11	No. 28	No. 21

   Courtesy of HONDA, U.S.A., INC.

   Circuit name	Test point 1 (Battery condition monitor module connector B (28P) )	Test point 2 (Battery module 1 28P connector (male terminals)):
   VH12	No. 15	No. 10

   Courtesy of HONDA, U.S.A., INC.

   Is there 1.0 Ω or less?

   YES

   The VHB subharness is OK. Replace the battery condition monitor module and the battery pack .

   NO

   Repair an open in the VHB subharness between the battery condition monitor module and the battery module.
