Removal procedure

WARNING: This page is about a different variant/trim than selected.

NOTE:

When replacing the connector bolt, replace the cable if there are any damages, scratches or coating deterioration on the aluminum portion of the connector or resin parts.
The following illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.
If necessary, remove the orange cable cover.

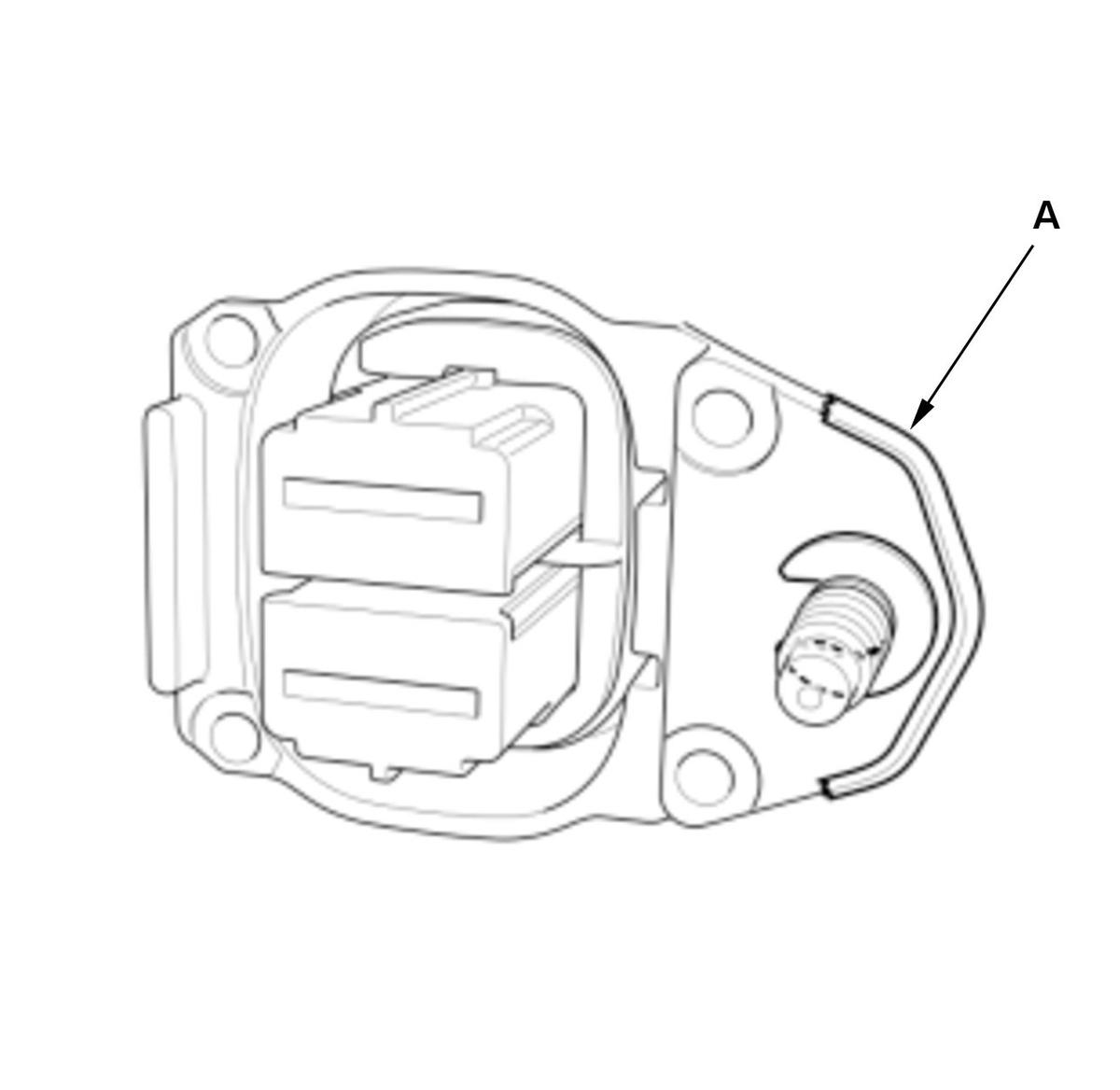

1. Apply protective tape to the connector (A) as shown.

Courtesy of HONDA, U.S.A., INC.

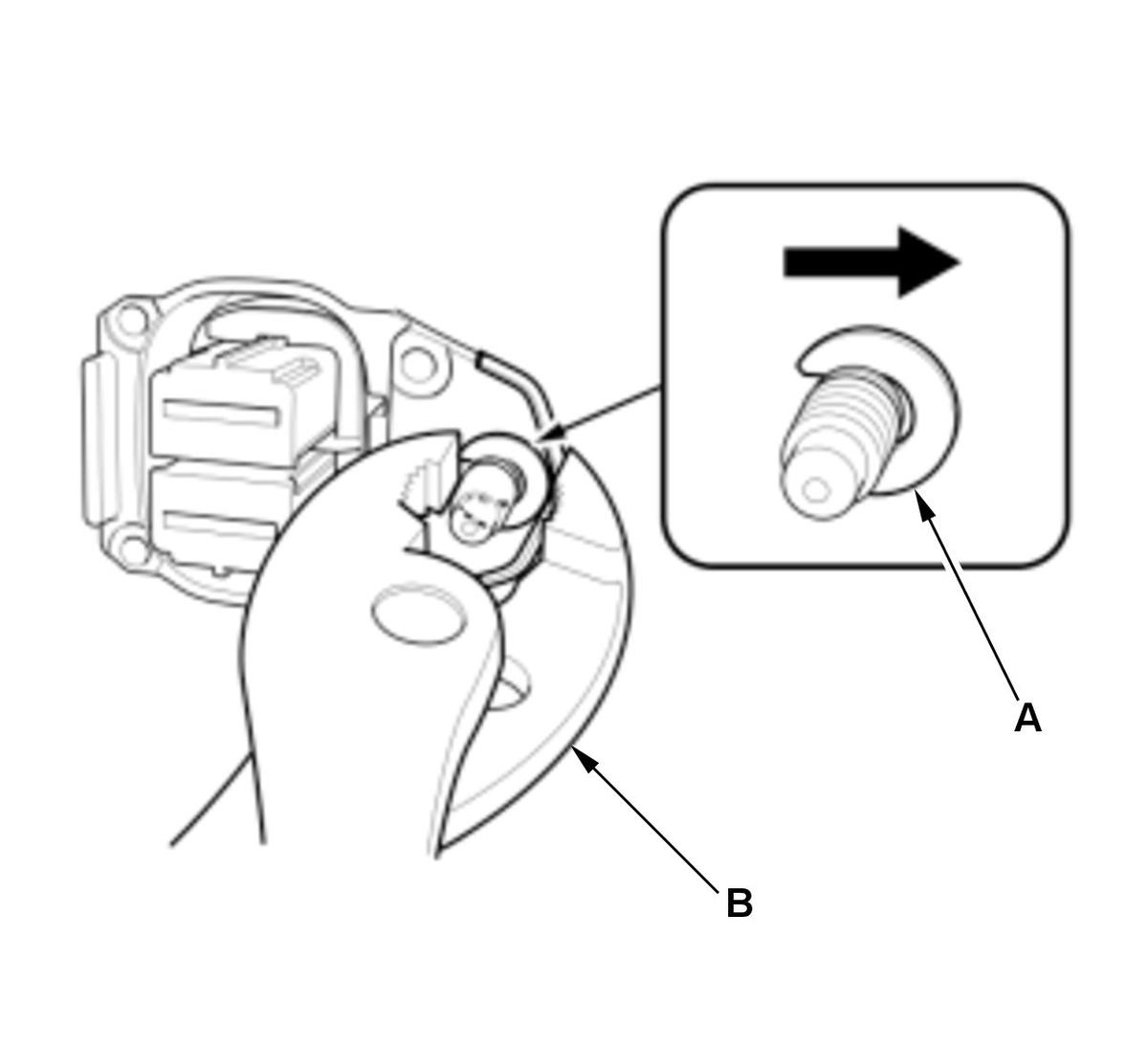

2. Adjust the position of the bolt clip (A) as shown. By using pliers (B), move the clip a bit toward the arrow as shown.

Courtesy of HONDA, U.S.A., INC.

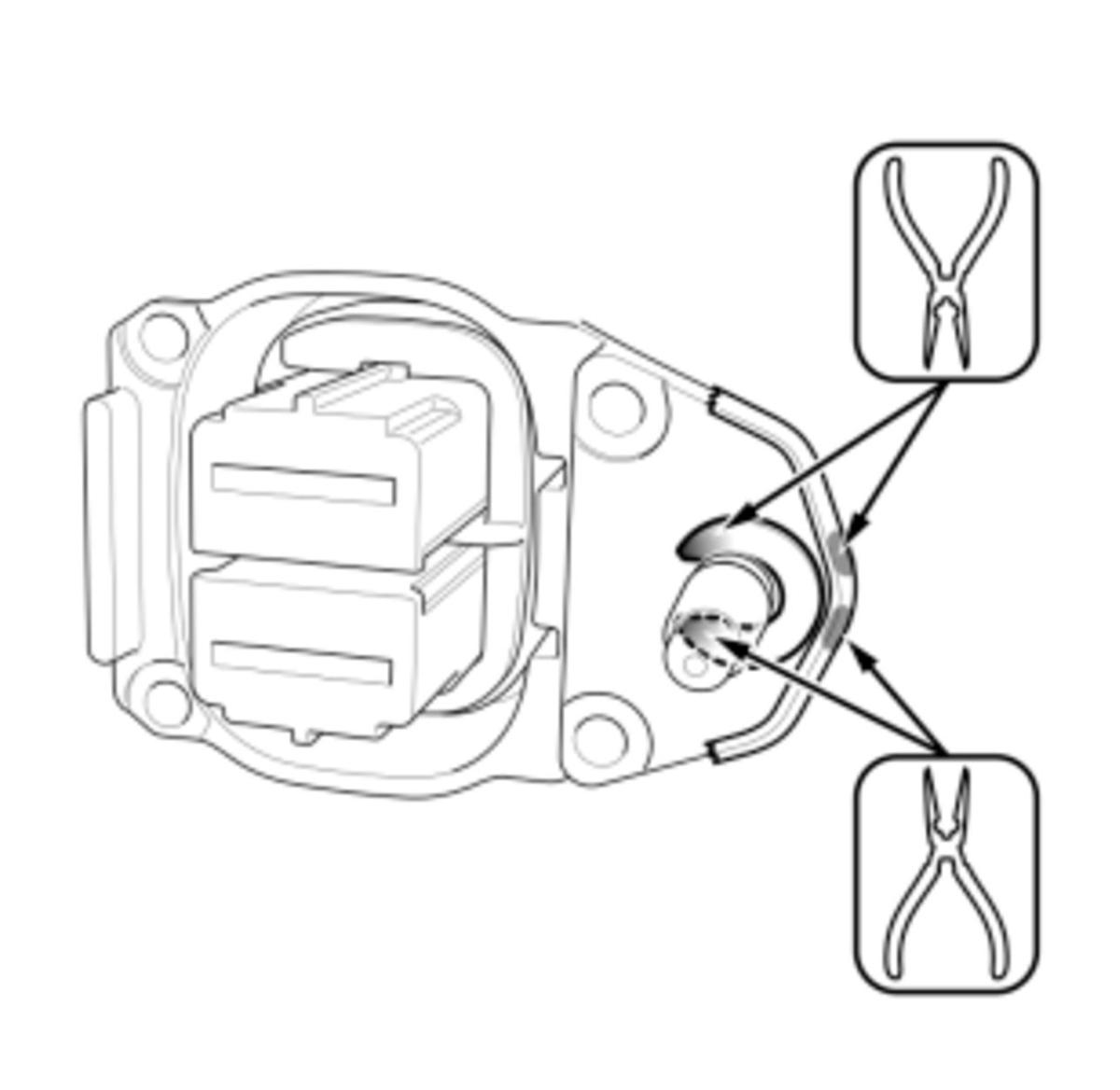

3. Put 2 long nose pliers onto the areas as shown and remove the bolt clip by gripping the pliers tightly. Then, remove the bolt.

Courtesy of HONDA, U.S.A., INC.
