Installation procedure

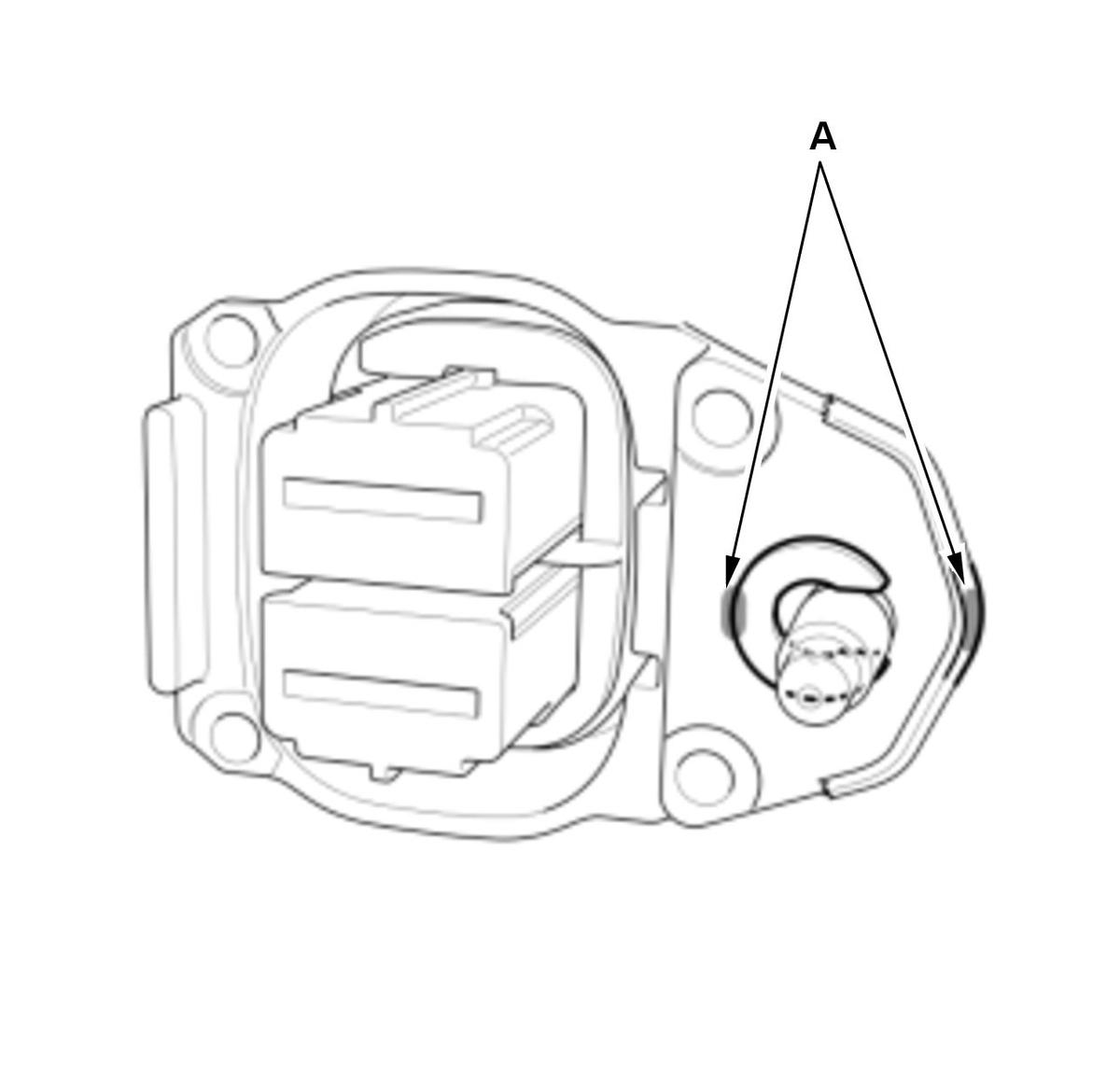

1. Place the bolt clip as shown. Put pliers onto the areas (A) as shown and install the clip by gripping the pliers tightly.

NOTE:  Install the bolt clip into a groove, not into a screw thread.

Courtesy of HONDA, U.S.A., INC.
