Slider-Locked Connector

WARNING: This page is about a different variant/trim than selected.

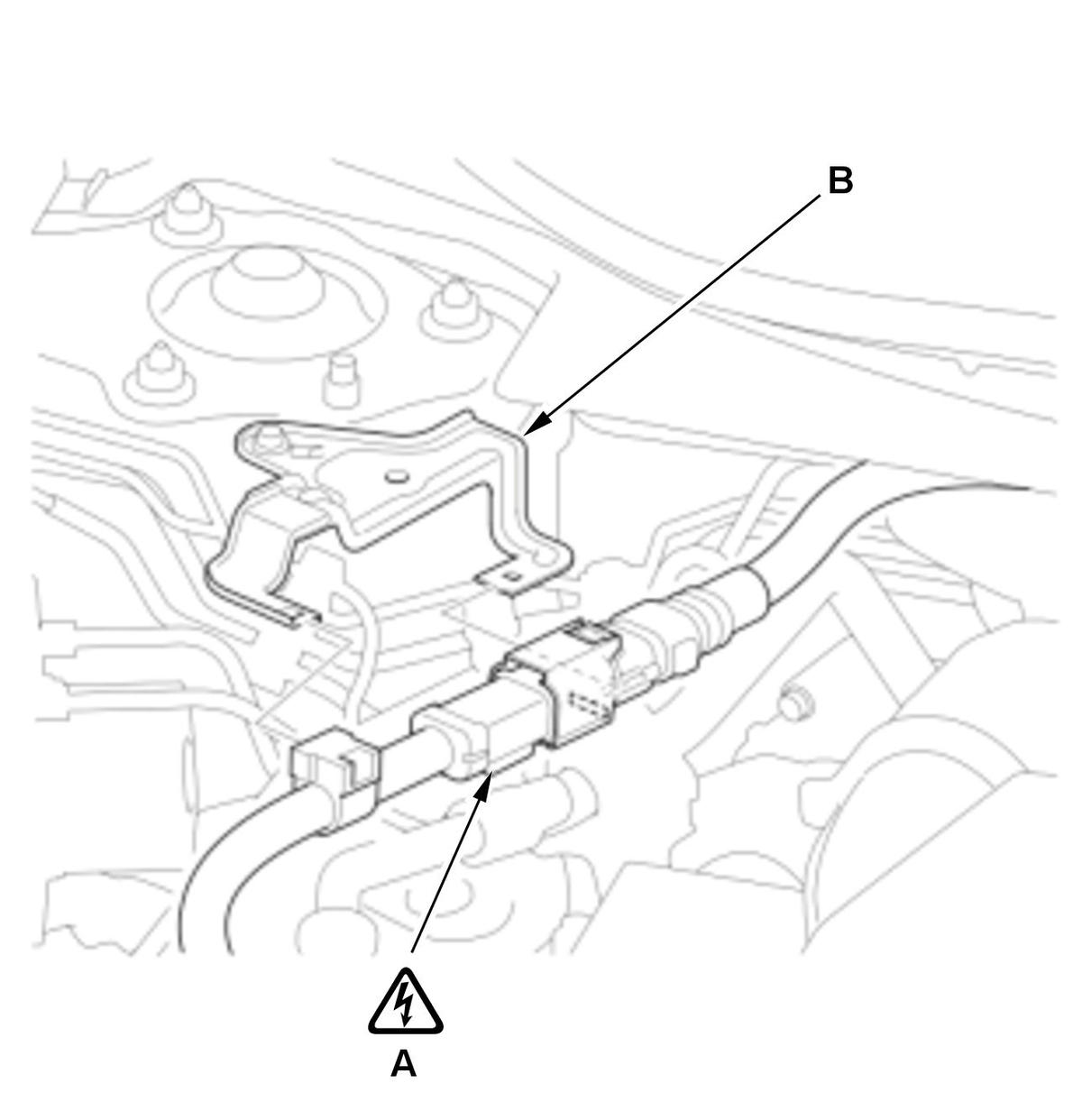

1. Remove the connector (A) from the bracket (B).

Courtesy of HONDA, U.S.A., INC.

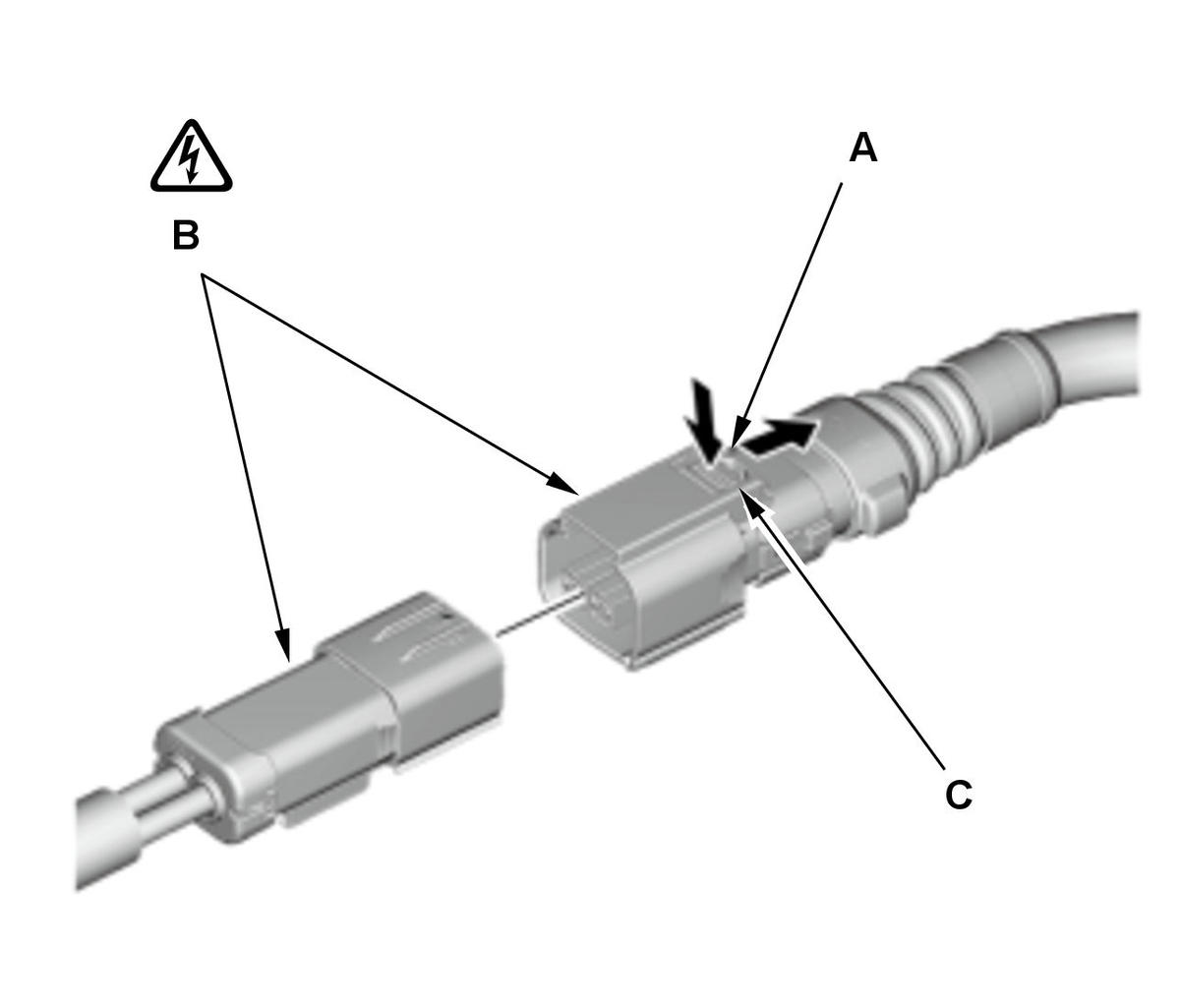

Move the slider (A) in the direction of the arrow, then disconnect the connector (B) while pushing the tab (C).

NOTE:

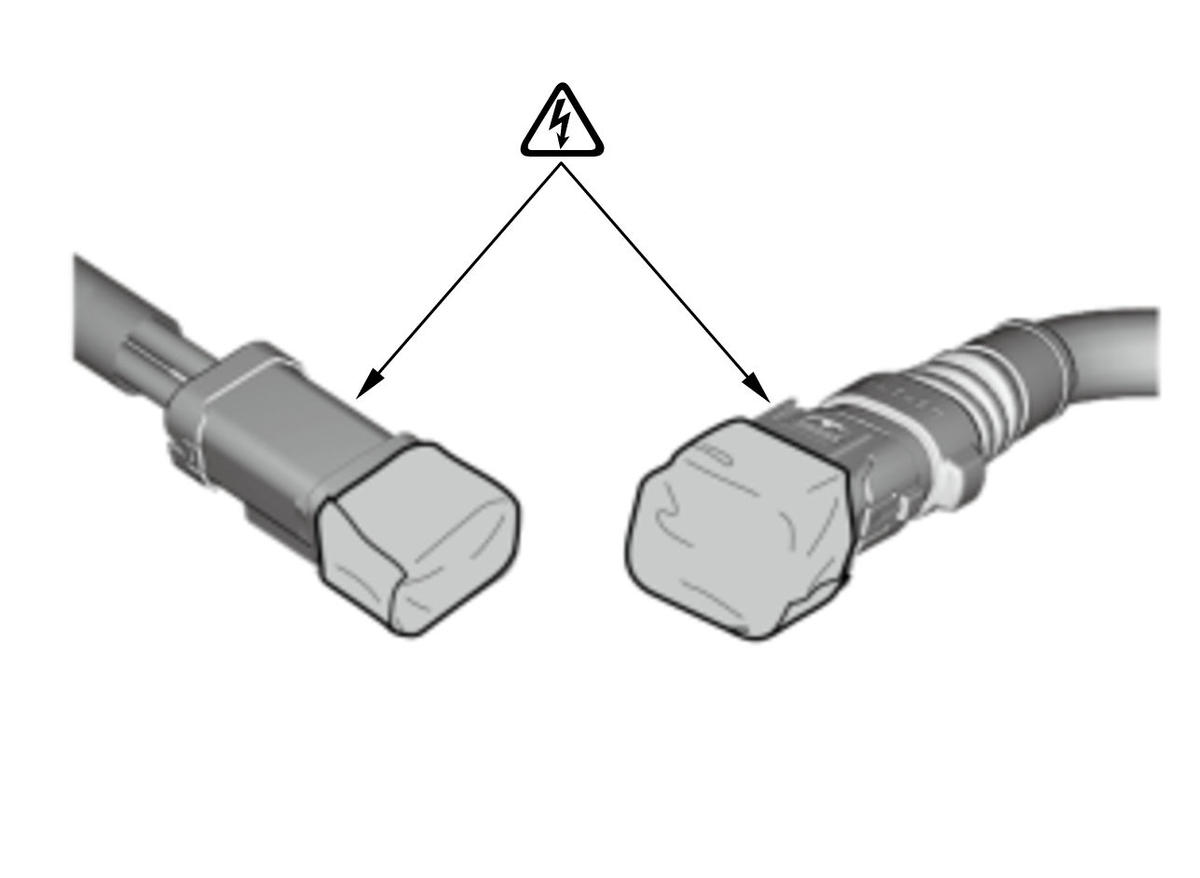

When removing or installing the service plug or items marked with , always use insulated tools, and wrap the items with insulating tape.
The following illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
