Power Cable Connector
WARNING: This page is about a different variant/trim than selected.
NOTE: How to read the torque specifications .

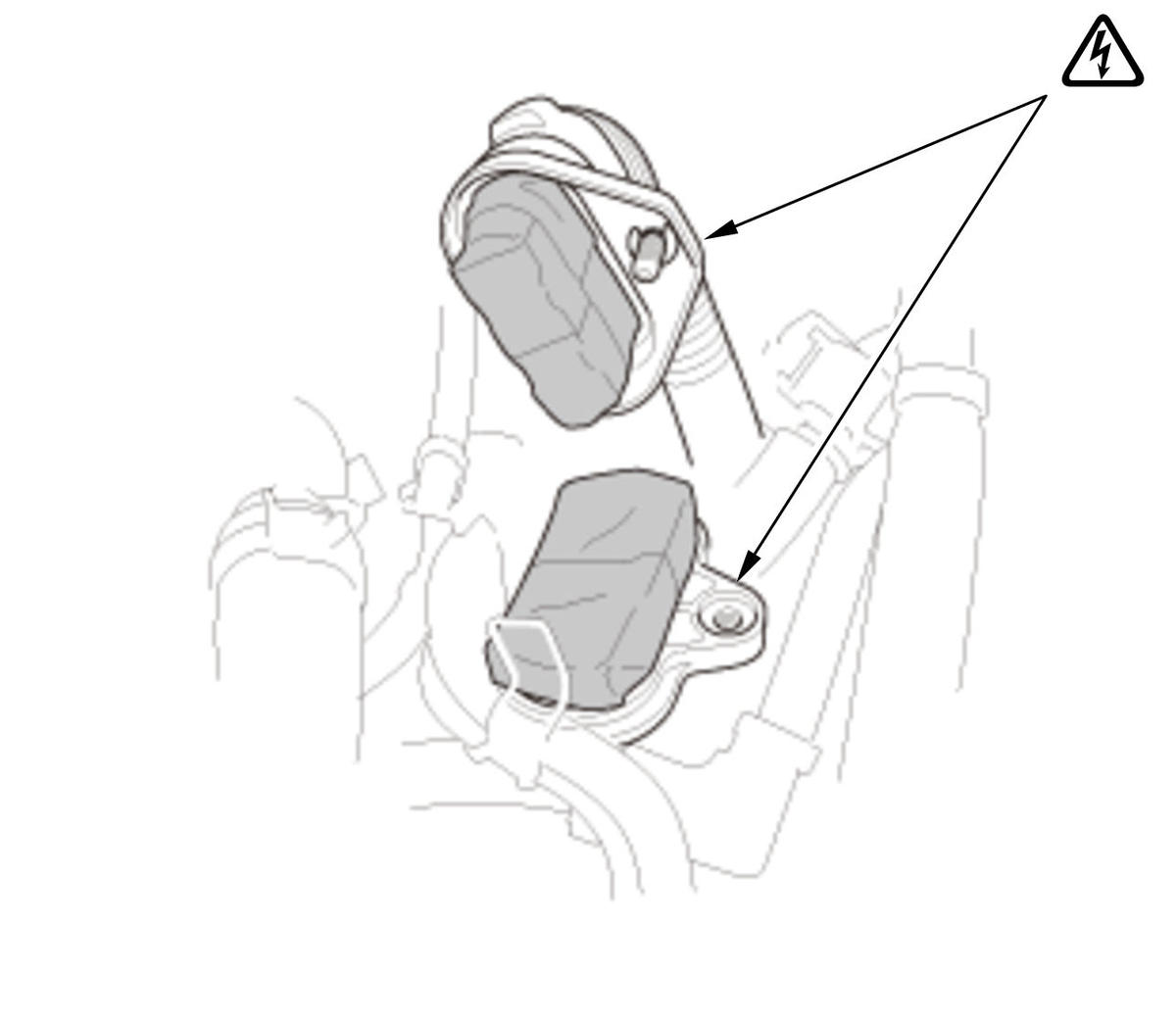

Disconnect the power cable connector, and wrap the items with insulating tape.
NOTE:
- The connector is removed by loosening the bolt.
- When removing or installing the service plug or items marked with
, always use insulated tools, and wrap the items with insulating tape.
- The following illustration is an example only. Appearance and structure of the actual parts may vary depending on the model.
