Coolant Replacement and Check (Electric Powertrain): Check

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not spill the PCU coolant on the surrounding parts. If you spill the PCU coolant, wipe the PCU coolant off immediately.

PCU Coolant - Check

Courtesy of HONDA, U.S.A., INC.

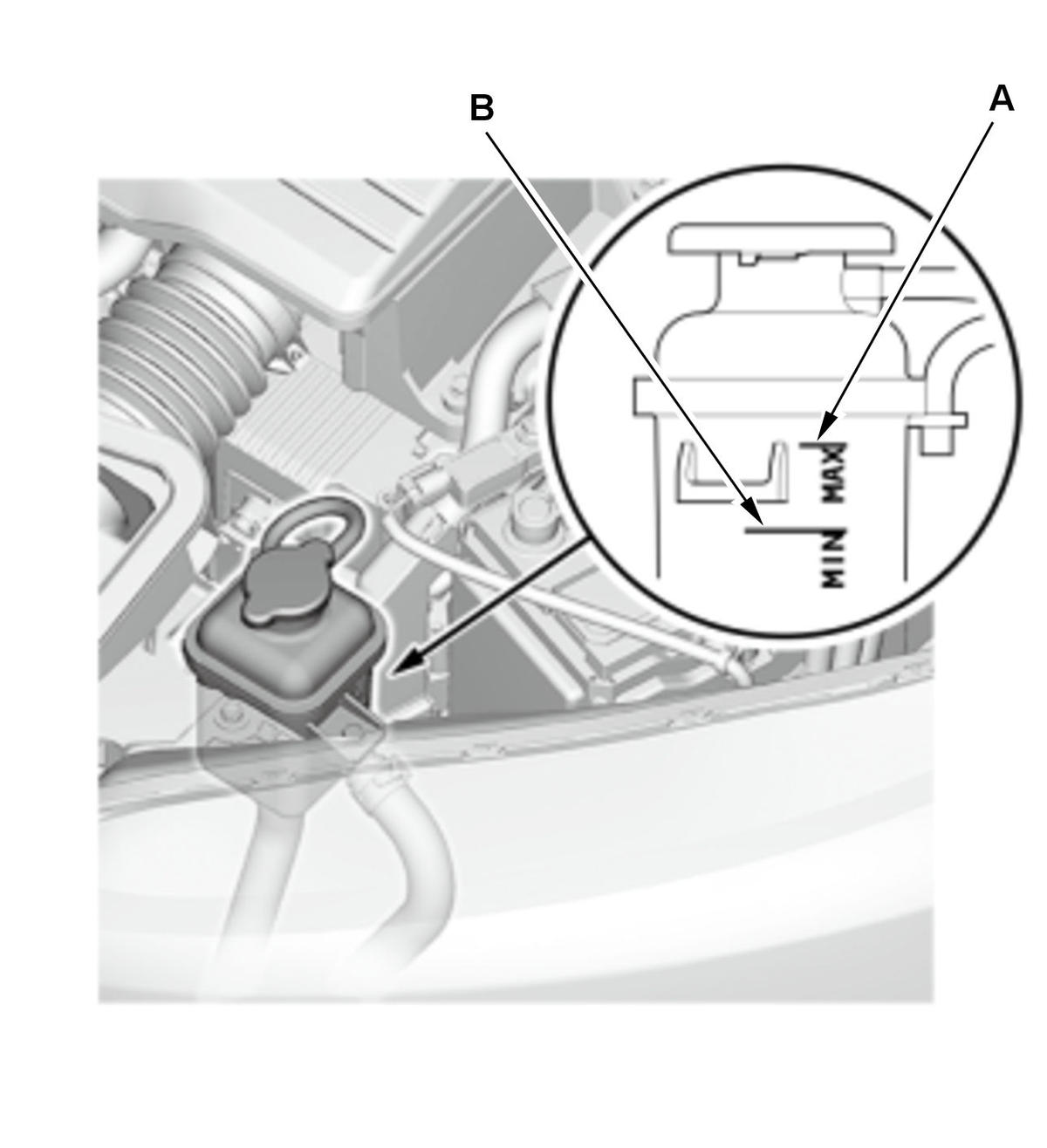

1. Check the coolant level in the coolant expansion tank. Make sure it is between the MAX mark (A) and the MIN mark (B).

2. If the coolant level in the coolant expansion tank is at or below the MIN mark, add coolant to bring it on the MAX mark, then inspect the cooling system for leaks .

NOTE:

Always use Honda All Season Antifreeze/Coolant Type 2. Using a non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail.
Honda All Season Antifreeze/Coolant Type 2 is a mixture of 50 % antifreeze and 50 % water. Do not add water.
