Motor Control Module Connector for Inputs and Outputs

WARNING: This page is about a different variant/trim than selected.

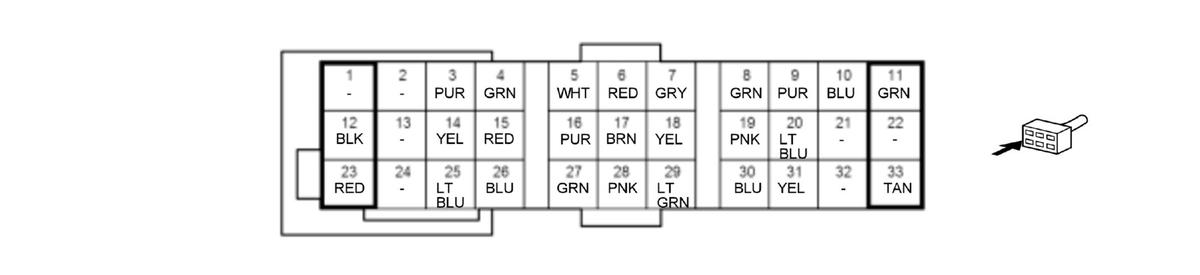

Motor Control Module 33P connector (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description
1	Not used
2	Not used
3	S1G	Inputs generator motor motor rotor position sensor (SIN) signal
4	R1G	Outputs generator motor motor rotor position sensor excitation signal
5	F-CAN A_H	Sends and receives F-CAN A communication signal (HIGH)
6	F-CAN A_L	Sends and receives F-CAN A communication signal (LOW)
7	NEWP	Detects PCU electric coolant pump revolution speed signal
8	R1M	Outputs traction motor motor rotor position sensor excitation signal
9	S1M	Inputs traction motor motor rotor position sensor (SIN) signal
10	TMOT	Detects traction motor temperature sensor signal
11	IGA	Power source for motor control module
12	PG	Ground for motor control module
13	Not used
14	S3G	Inputs generator motor motor rotor position sensor (SIN) signal
15	R2G	Outputs generator motor motor rotor position sensor excitation signal
16	TWPCU	Detects PCU coolant temperature sensor signal
17	SGTEMP	Sensor ground for PCU coolant temperature sensor and transmission fluid temperature sensor
18	EWP	Drives PCU electric coolant pump
19	R2M	Outputs traction motor motor rotor position sensor excitation signal
20	S3M	Inputs traction motor motor rotor position sensor (SIN) signal
21	Not used
22	Not used
23	TATF	Detects transmission fluid temperature sensor signal
24	Not used
25	S4G	Inputs generator motor motor rotor position sensor (COS) signal
26	S2G	Inputs generator motor motor rotor position sensor (COS) signal
27	EP-CAN A_H	Sends and receives EP-CAN communication signal (HIGH)
28	EP-CAN A_L	Sends and receives EP-CAN communication signal (LOW)
29	NGENPLS	Outputs generator motor revolution speed signal
30	S2M	Inputs traction motor motor rotor position sensor (COS) signal
31	S4M	Inputs traction motor motor rotor position sensor (COS) signal
32	Not used
33	IG_PCU_EWP	Drives PCU electric coolant pump relay
